Power Mirror Motor: Service and Repair

WM 668219 Removing and installing mirror adjusting motor

Preliminary work

Remove mirror glass. -> 667819 Removing and installing mirror glass - "Removing" section 667819 Removing and installing mirror glass

Removing mirror adjusting motor

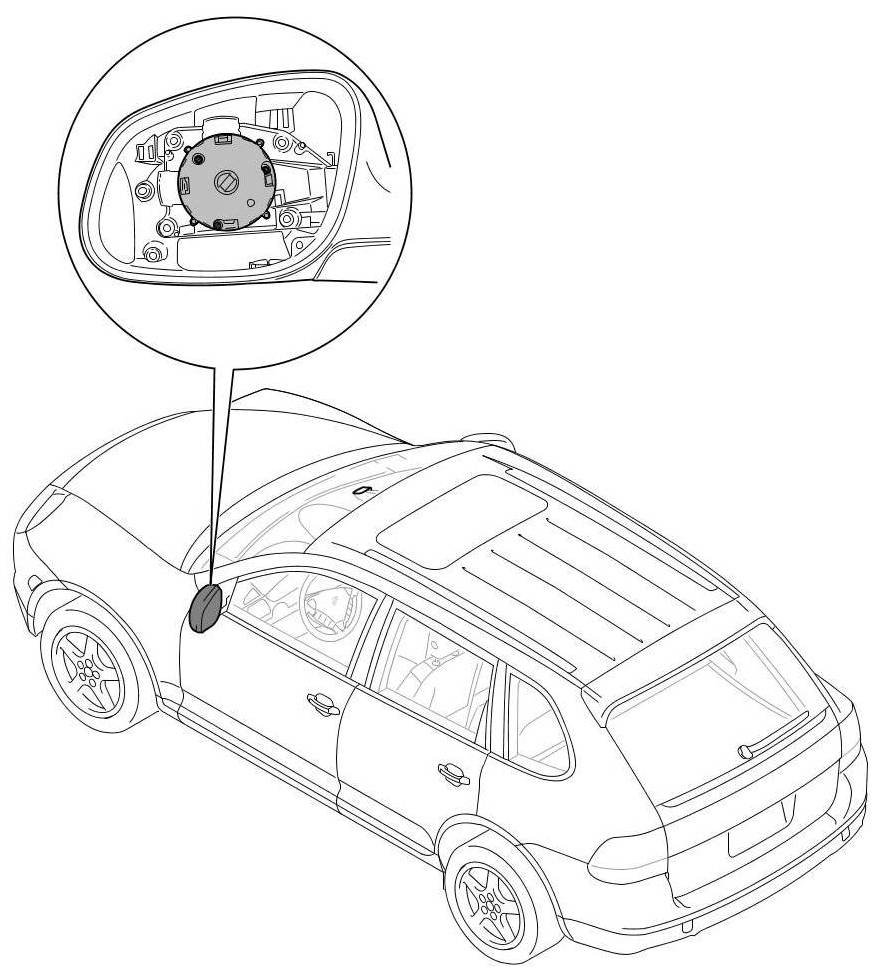

Overview of mirror adjustment motor

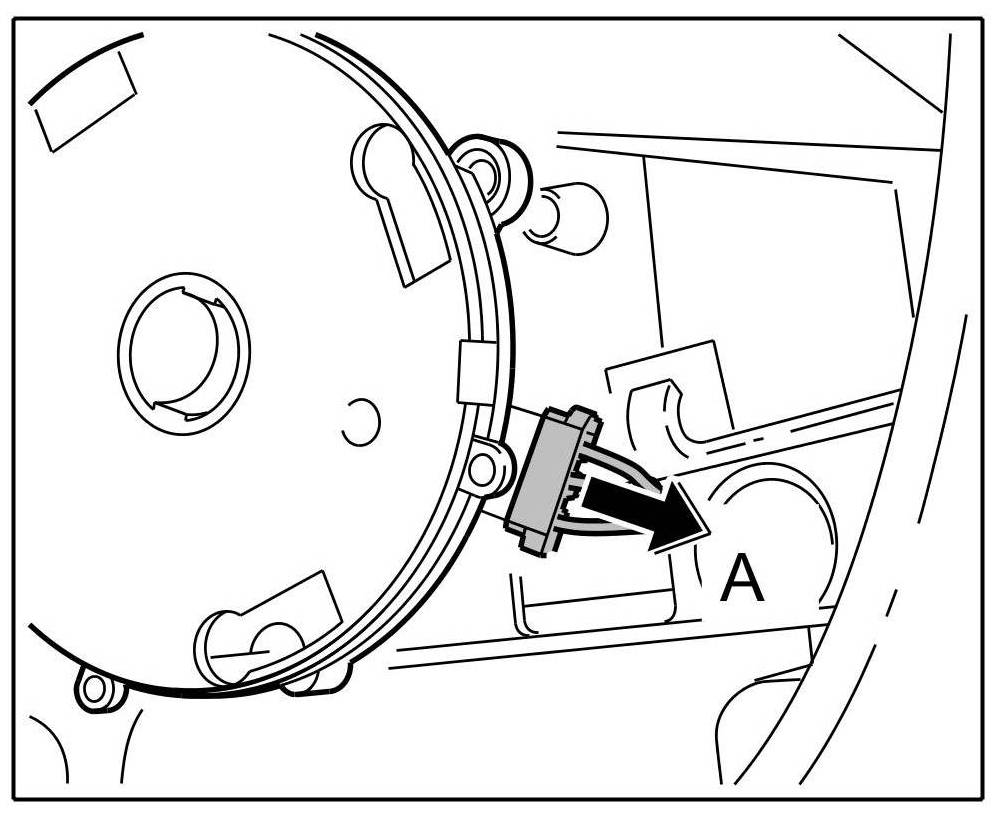

1. Pull off the plug on the mirror adjustment motor -arrow A-.





Pulling off plug

2. Unscrew fastening screws -arrows- and remove mirror adjustment motor.





Unscrewing fastening screws

Installing mirror adjusting motor

1. Connect the plug on the mirror adjustment motor -arrow A-.





Plugging in connector

2. Install and screw down mirror adjustment motor -arrows-.





Installing and screwing down mirror adjustment motor

Subsequent work

Install mirror glass. -> 667819 Removing and installing mirror glass - "Installing" section 667819 Removing and installing mirror glass
