Condenser Fan: Service and Repair

WM 875319 Removing and installing fan for condenser

Technical values





Preliminary work

Remove radiator frame. -> 192019 Removing and installing cooling fan housing (radiator frame) - section on "removing" 192019 Removing and installing cooling fan housing (radiator frame) on DFI engines

Removing fan for condenser

Information

- The big fan is for the engine cooling, the small fan is for the air conditioning

- The sheetmetal clips on the fans are for balancing the fans and must not be pulled off.





Overview of fan for condenser

1. Unclip the electric plug on the radiator frame.





Unclipping the electric plug on the radiator frame

2. Undo the 3 fastening screws on fan and pull fan down and out.

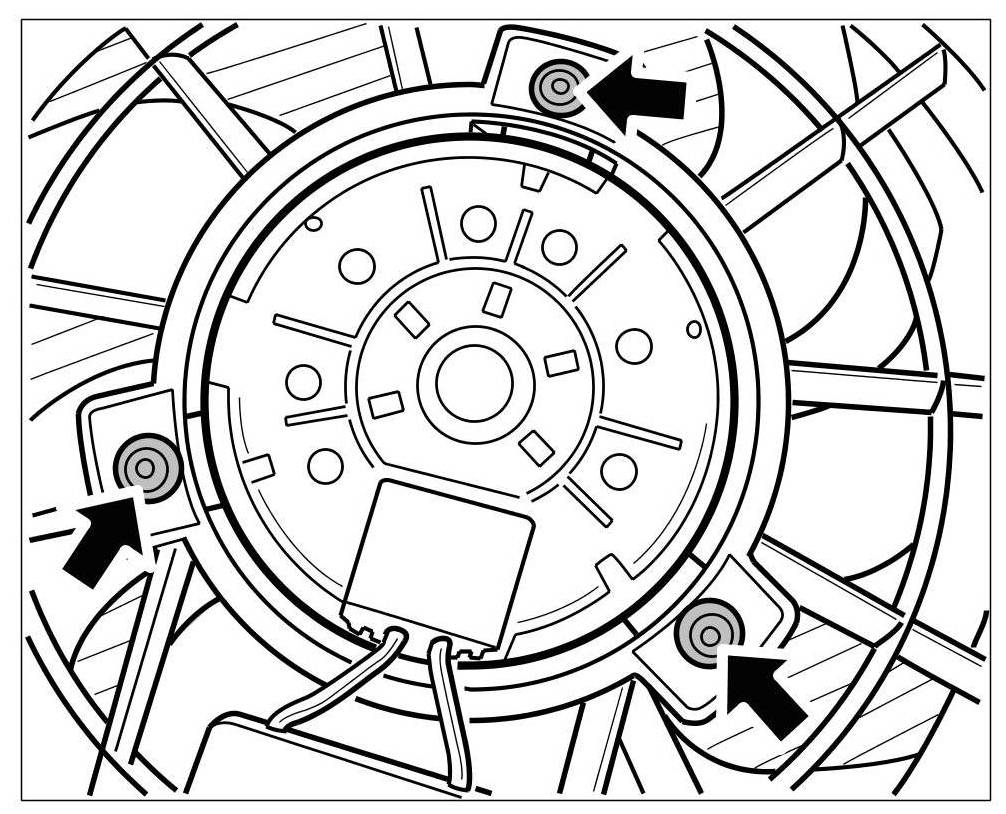

Loosening fastening screws from fan and removing fan

3. Follow up the fan cable and fan control module during removal.

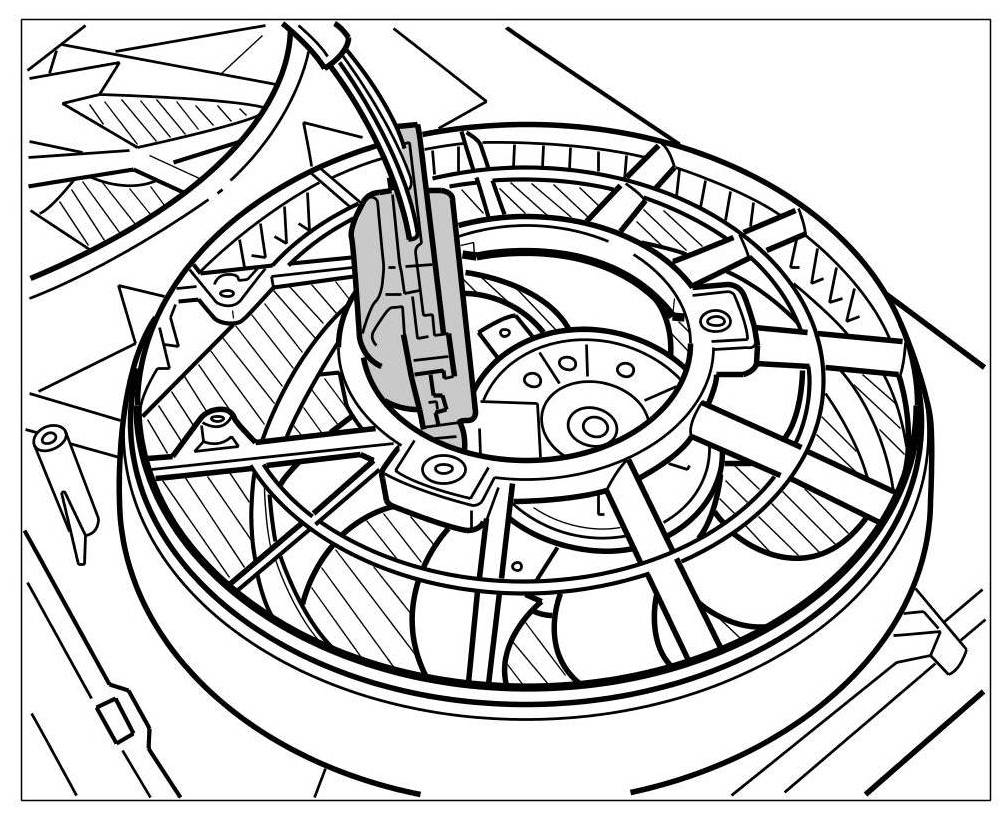

Following up the fan cable and control module

Installing fan for condenser

1. Push fan cable with control module from underneath through the radiator frame.





Inserting the fan cable with control module

2. Tighten the three fastening screws. => Tightening torque: 3 ftlb.





Tightening fastening screws

3. Route cables correctly and clip electric plug into the frame at the top.





Clipping in the electric plug on the radiator frame

Subsequent work

Install radiator frame. -> 192019 Removing and installing cooling fan housing (radiator frame) - section on "installing" 192019 Removing and installing cooling fan housing (radiator frame) on DFI engines
