Removing and Installing Dashboard Cover on the Passenger's Side

Removing And Installing Dashboard Cover On The Passenger's Side

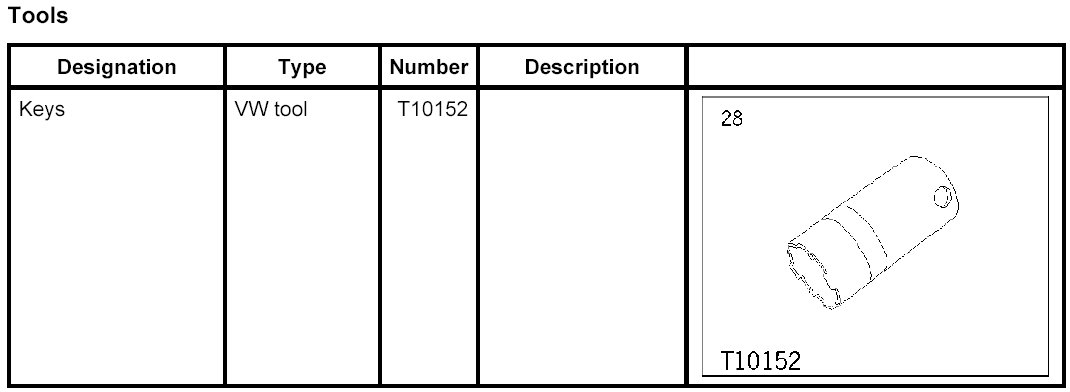

Tools







Tools and materials

Keys T10152

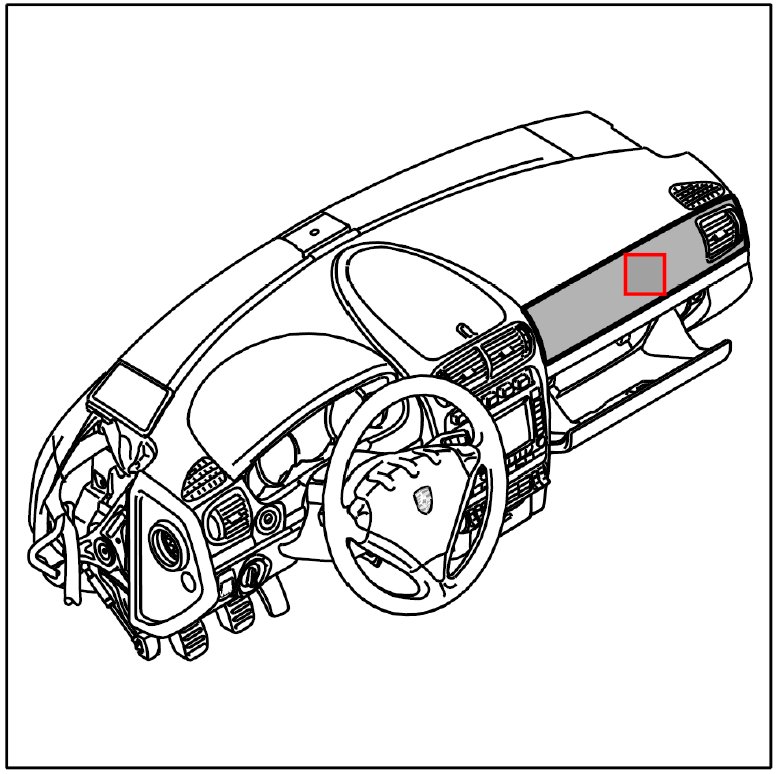

Removing dashboard cover on the passenger's side







1. Remove trim strips for dashboard on the passenger's side.
2. Remove glove compartment. Refer to Removing and installing glove compartment.
3. Remove air vent at door. Refer to Removing and installing air vent at door.






4. Unscrew fastening screw -2-.









5. Swivel the cover for the instrument panel on the passenger's side -1- out and down -arrow A-, pull it out with the holding strap -3- -arrow C- and remove to the rear -arrow B-.




Installing dashboard cover on the passenger's side

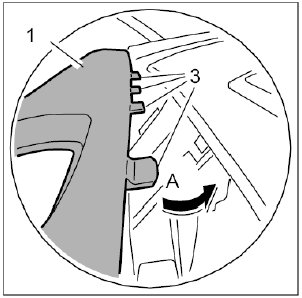

1. Install dashboard cover on the passenger's side. To do this, insert the cover for the instrument panel on the passenger's side -1- upward with the holding strap -3- -arrow A- and swivel downwards -arrow B-.






2. Screw in -2- fastening screw.
3. Install air vent at door.
4. Install glove compartment. Refer to Removing and installing glove compartment.
5. Install trim strips for dashboard on the passenger's side.
