702219 Removing and Installing Cover Under Dashboard

WM 702219 Removing and installing cover under dashboard

Removing cover under dashboard

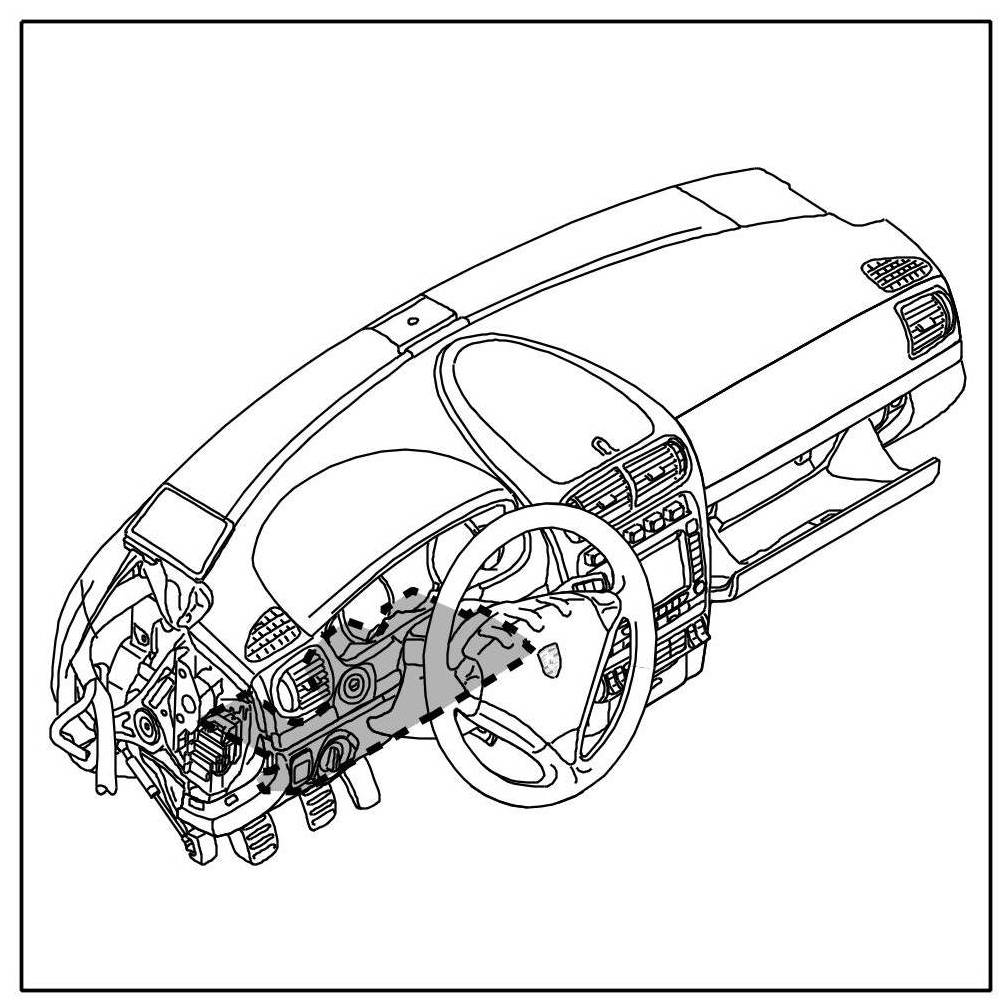

Removing cover under dashboard on the driver's side





1. Open door.

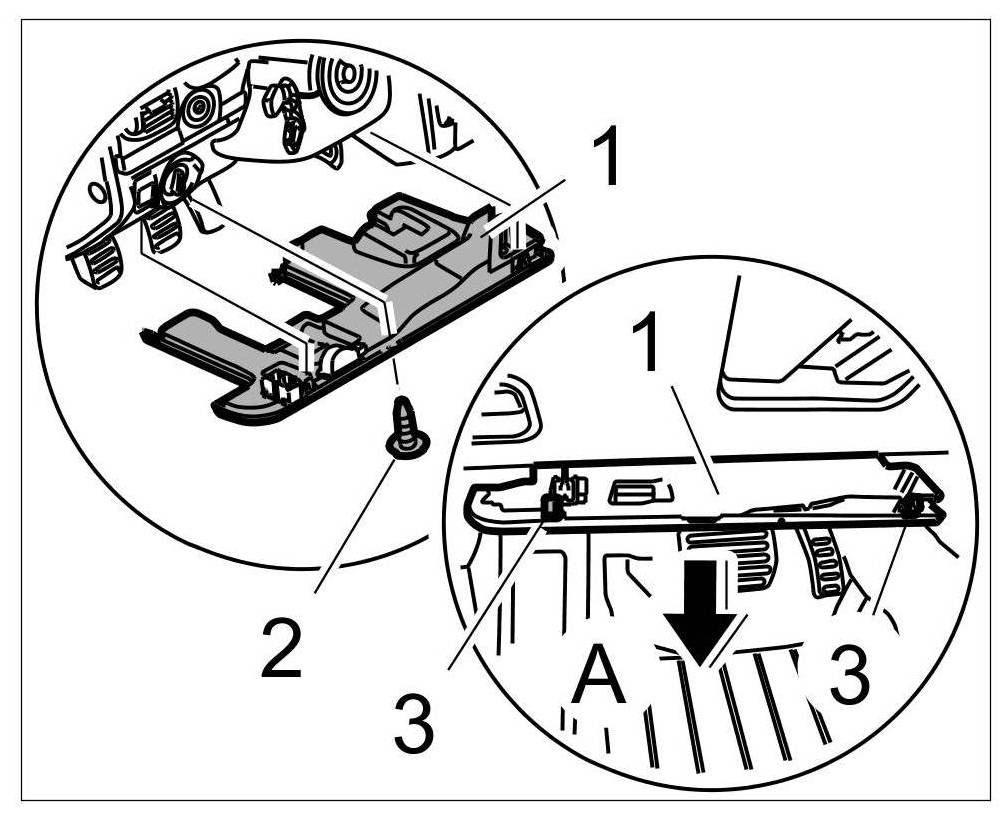

2. Release the cover under dashboard on the driver's side.

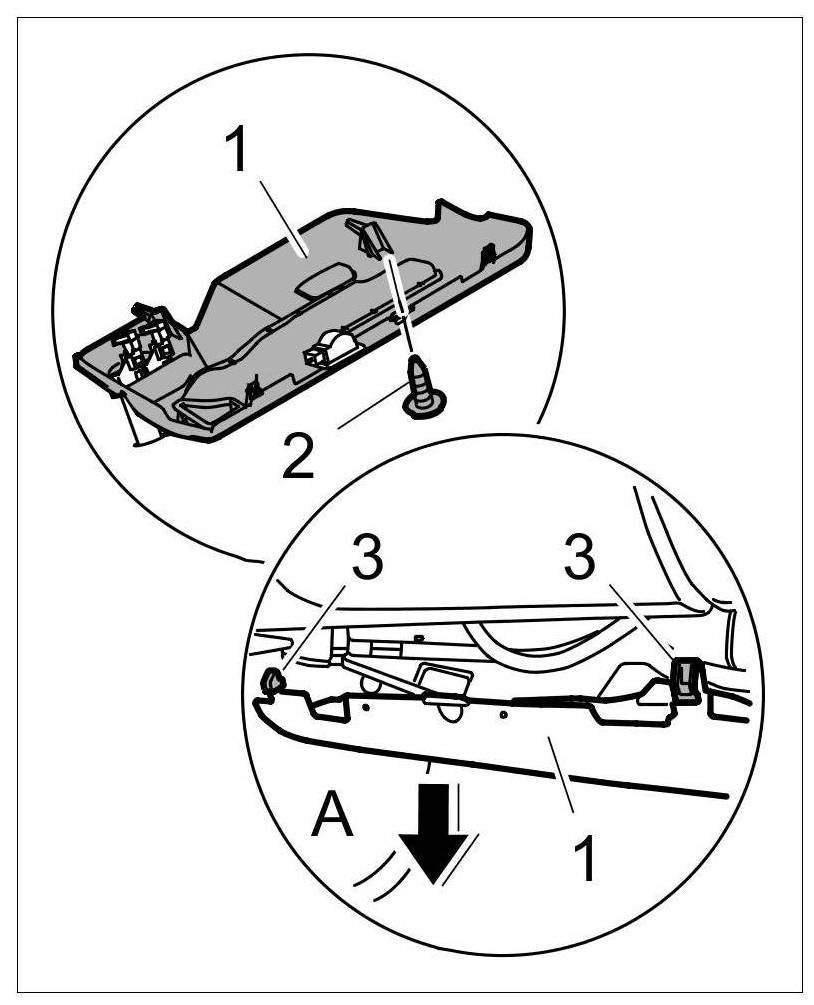

2.1. Unscrew fastening screw -2-.
2.2. Unclip the cover under the dashboard on the driver's side -1- at the fastening clips -3- and lower it downwards until the plug connections are accessible -arrow A-.

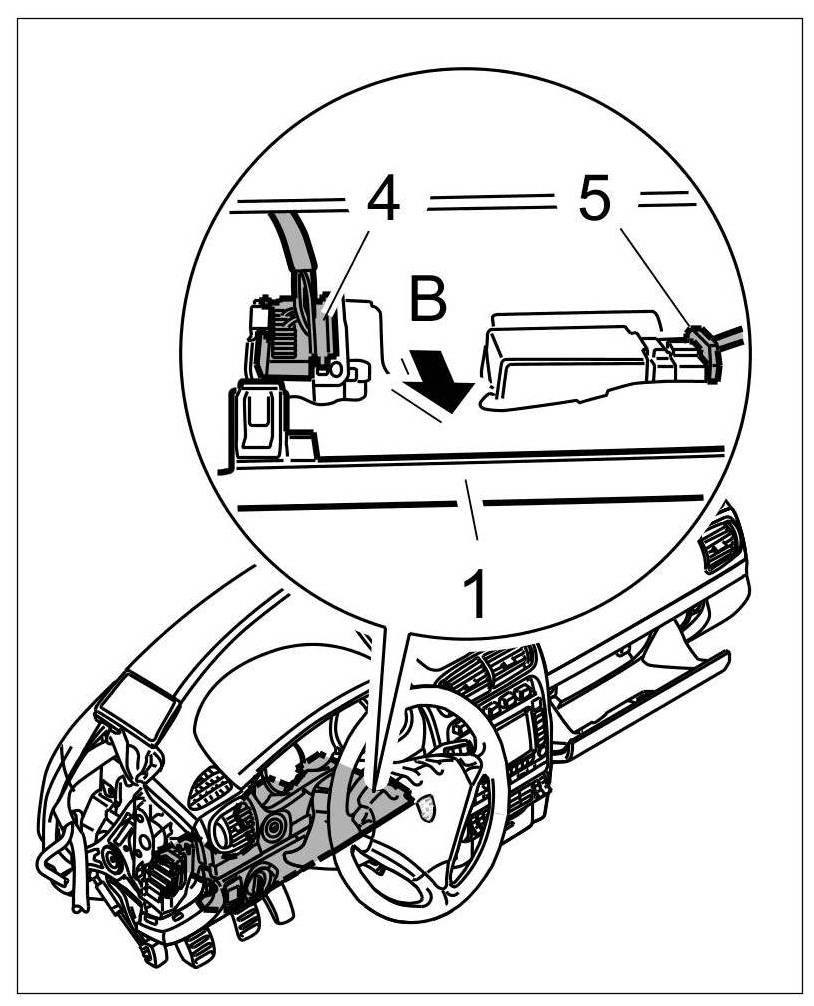

3. Disconnect the plug connections and remove cover under dashboard on the driver's side.

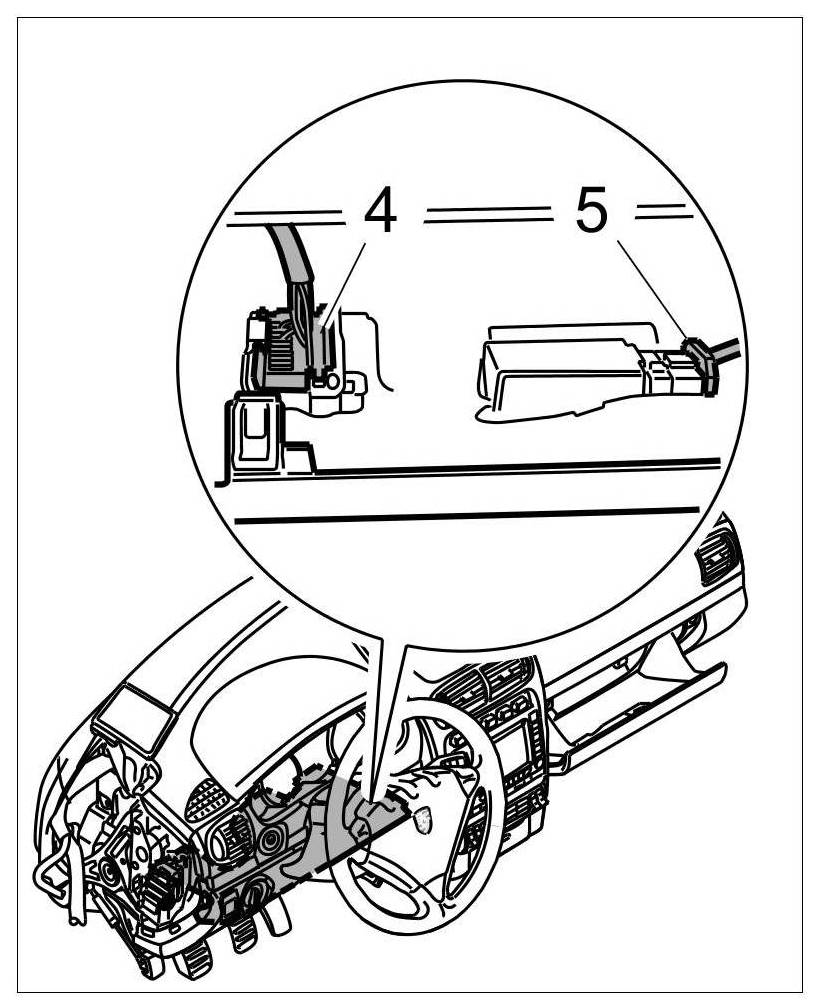

3.1. Release -4, 5- and pull off plug.
3.2. Remove the cover under the dashboard on the driver's side -1- to the rear -arrow B-.





Removing cover under dashboard on the passenger's side





1. Open door.
2. Loosen cover under dashboard on the passenger's side.
2.1. Unscrew fastening screw -2-.

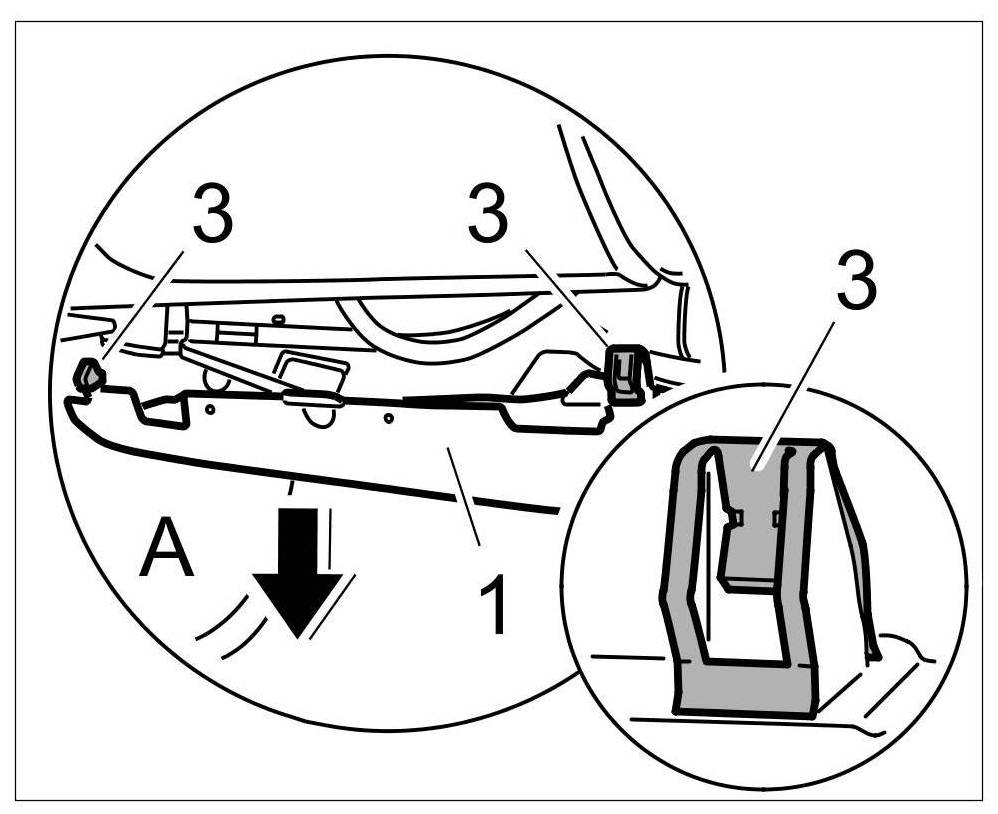

2.2. Unclip the cover under the dashboard on the passenger's side -1- at the fastening clips -3- and lower it downwards until the plug connections are accessible -arrow A-.









3. Disconnect the plug connections and remove cover under dashboard on the passenger's side.

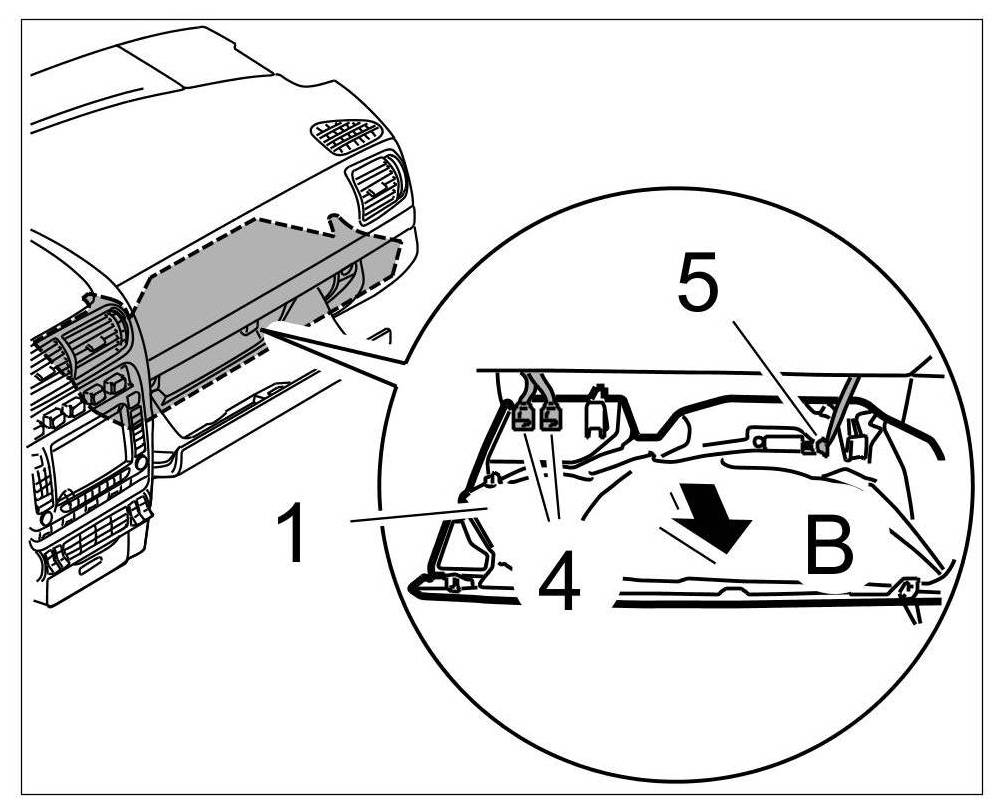

3.1. Release -4, 5- and pull off plug.
3.2. Remove the cover under the dashboard on the passenger's side -1- to the rear -arrow B-.






Installing cover under dashboard

Installing cover under dashboard on the driver's side





1. Insert cover under dashboard on the driver's side

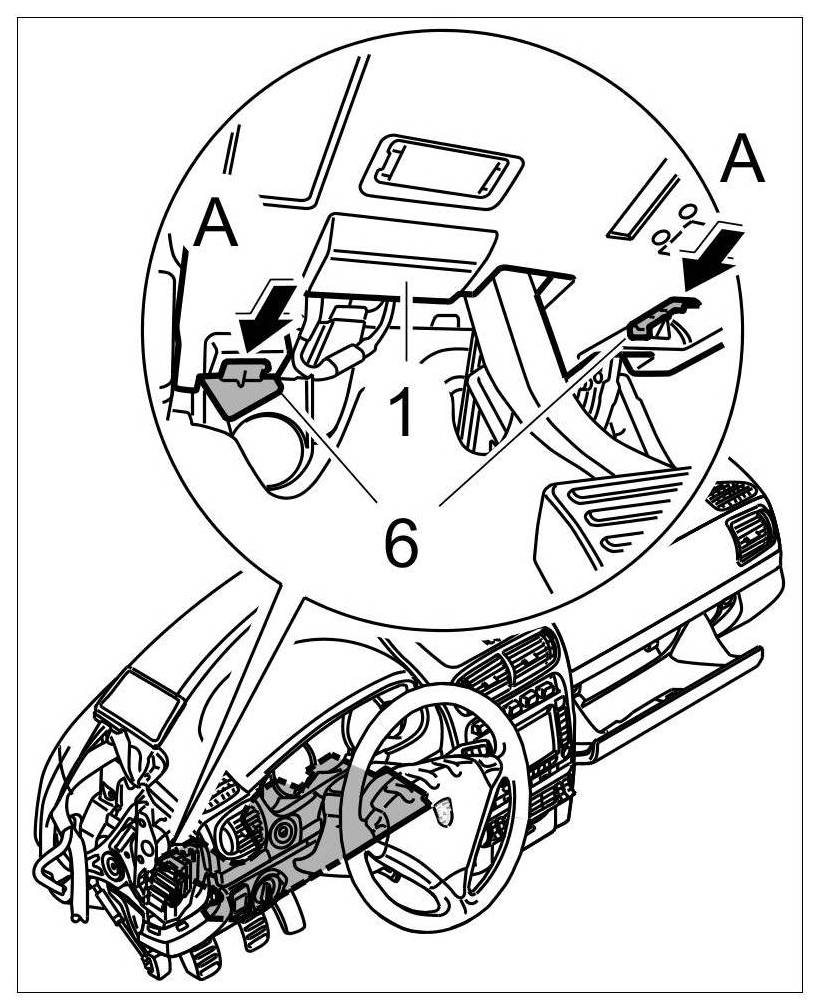

1.1. Insert cover under the dashboard on the driver's side -1- into the guides -6- -arrows A-.





2. Connect plug.
2.1. Push on the plug -4, 5- until the locking tabs engage audibly.





3. Install cover under dashboard on the driver's side.

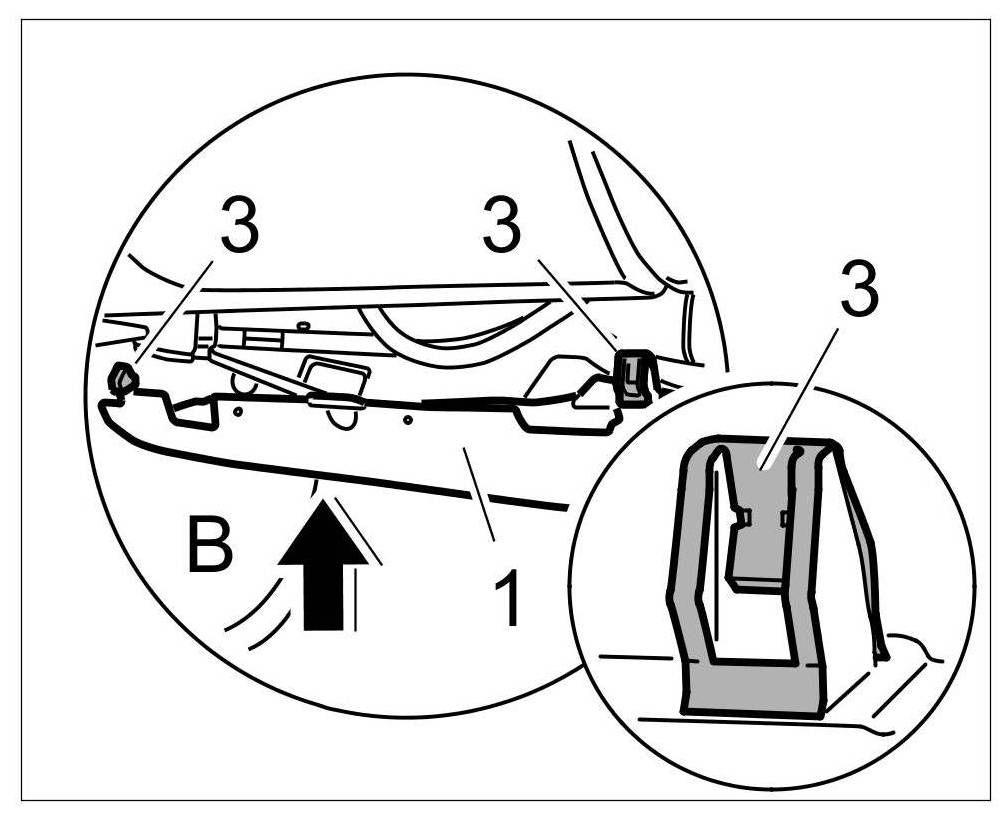

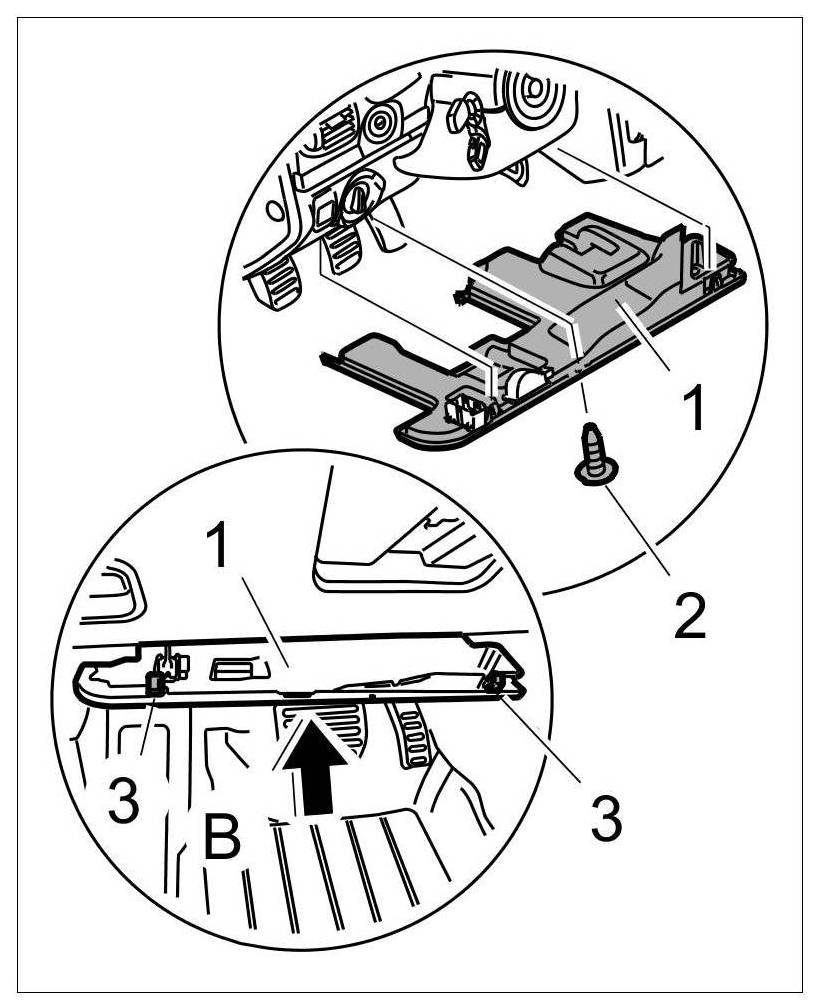

3.1. Press the cover under the dashboard on the driver's side -1- upwards until the fastening clips -3- can be heard to engage -arrow B-.
3.2. Screw in fastening screw -2-.









Installing cover under dashboard on the passenger's side





1. Insert cover under dashboard on the passenger's side.
1.1. Insert cover under the dashboard on the passenger's side -1- using the guides -6- -arrow A-.





2. Connect plug.
2.1. Push on the plug -4, 5- until the locking tabs engage audibly.





3. Install cover under dashboard on the passenger's side.

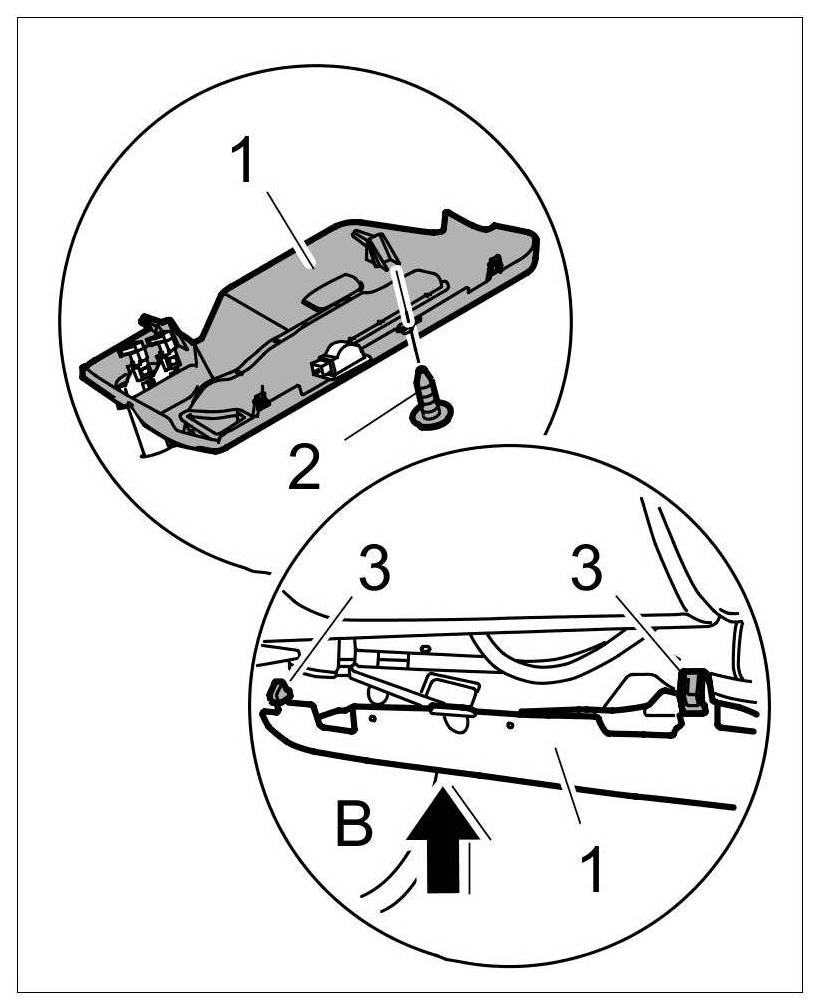

3.1. Press the cover under the dashboard on the driver's side -1- upwards until the fastening clips -3- can be heard to engage -arrow B-.
3.2. Screw in fastening screw -2-.
