Engine Off Timer Monitoring

Engine Off Timer Monitoring

General description
The ECU received the engine off time from the instrument cluster.
The diagnosis runs during ignition on.
The ECU is waiting for a time changing after a specified time. A fault will be set if there is no time changing.

Error Symptom
Signal error

Input parameters for monitoring
time counter via CAN

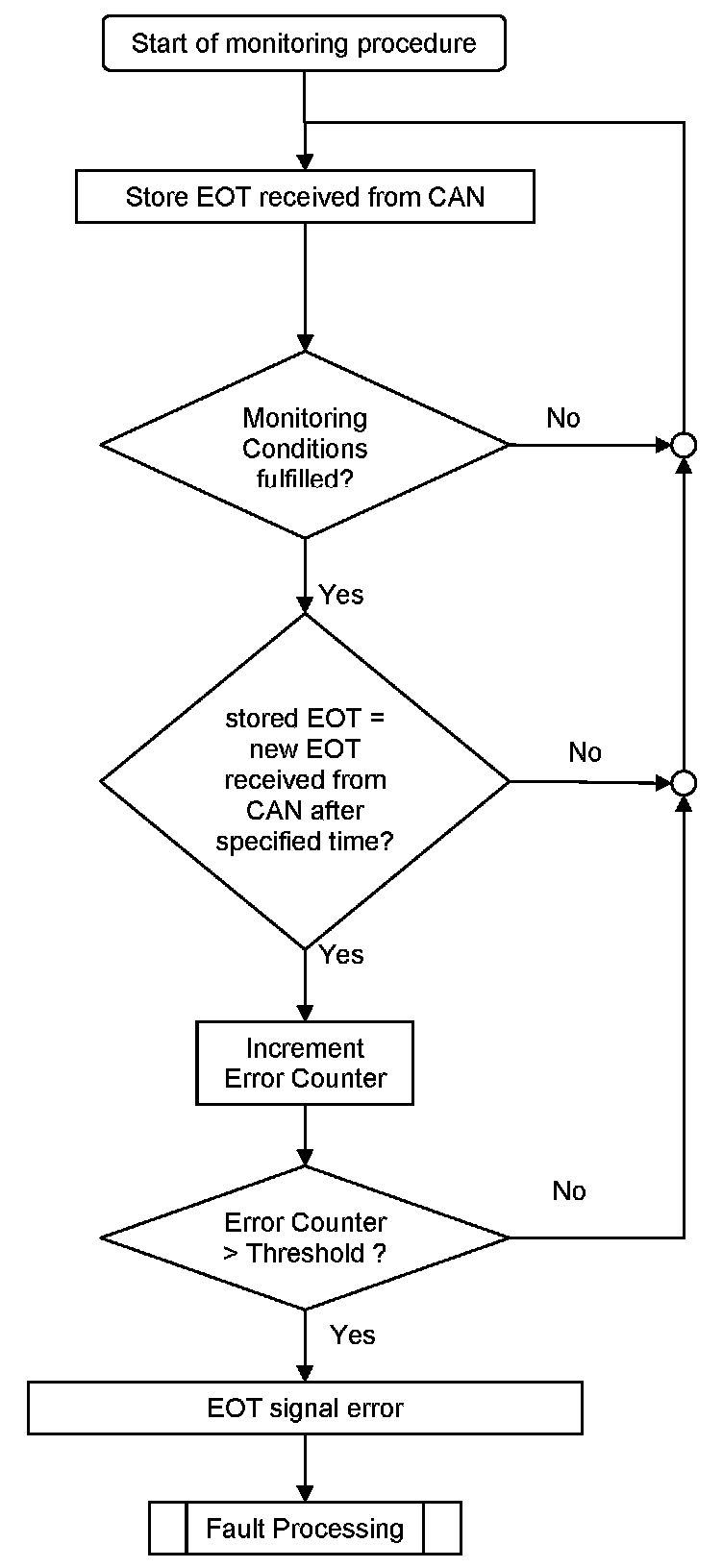

Flow chart: Engine off time (EOT) monitoring
