Brake System

Brake System

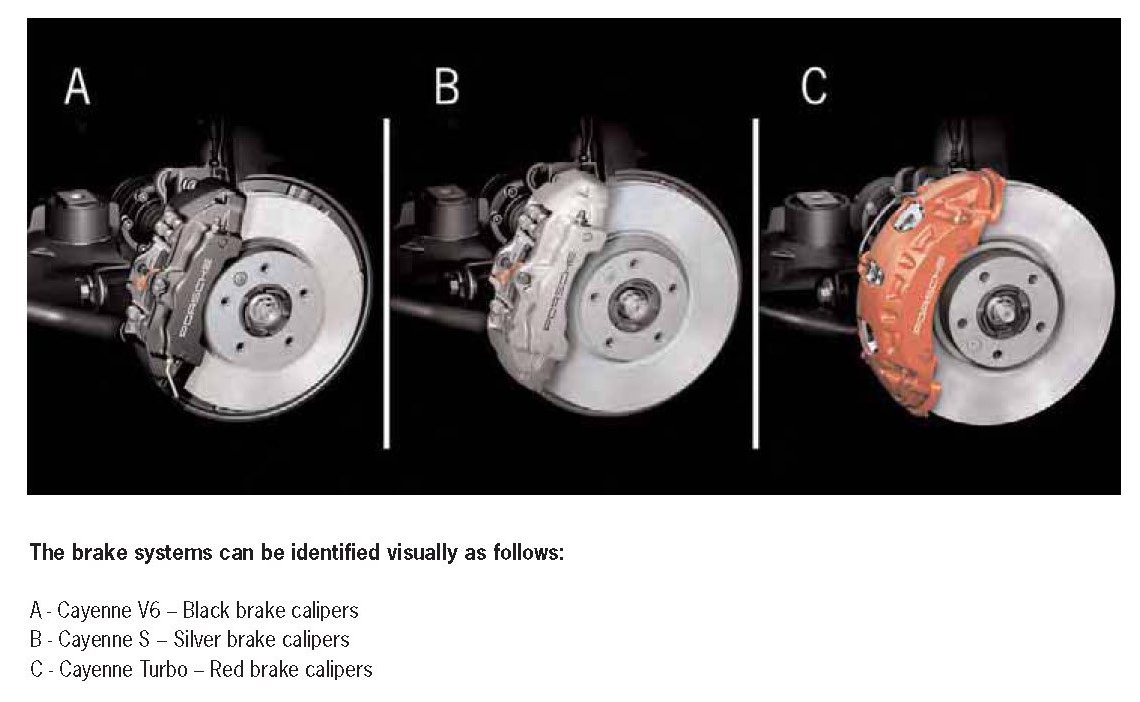

To meet the high requirements with regard to the braking performance of a Porsche, all new Cayenne models have a brake system that is optimally designed to suit the relevant vehicle features.

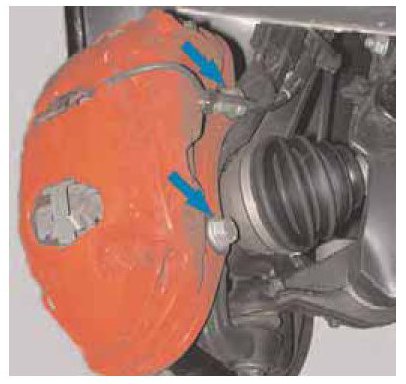

NOTE: The four bolts on the reinforcement frame must not be loosened. To replace the pads, loosen the two bolts for the wheel carrier.

Cayenne Turbo







To achieve the best deceleration values even with the significantly improved performance of the new Cayenne Turbo, it now features an improved turbo brake system with the following enhanced components:
- Larger brake discs
- Reinforced brake calipers
- Optimized brake pads

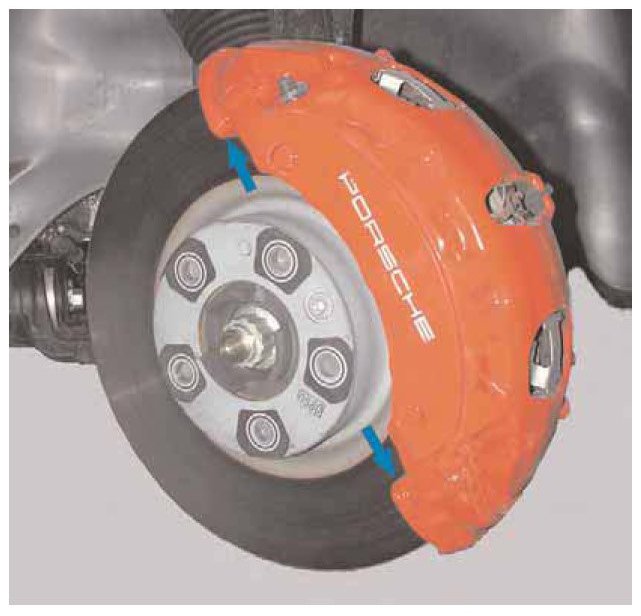

The brake calipers on the Cayenne Turbo have also been reinforced. The correspondingly larger front brake calipers now have an additional reinforcement frame (-arrows-), which is bolted to the caliper housing in four places and serves to strengthen the structure.
