Mechanical Specifications

WM 3735TW Technical data on 6-speed Tiptronic transmission

Technical values





Technical values

Information

- In order to protect the converter components against excessive centrifugal forces when idle, the engine speed in the selector lever positions P and N is limited to 4,000 rpm.

Type A 48.22/A 48.02/A 48.52

Equipment 6-speed/6-speed/6-speed

Installed in Cayenne/Cayenne S/Cayenne Turbo

Model year 2008/2008/2008

Design Fully automatic 6-speed planetary gear set

Transmission ratios

1st gear 4.15

2nd gear 2.37

3rd gear 1.56

4th gear 1.16

5th gear 0.86

6th gear 0.69

Reverse gear 3.39

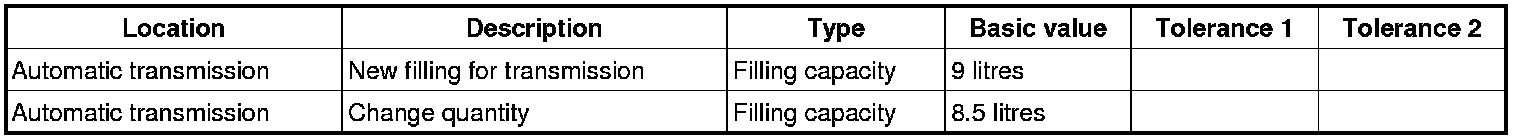

Filling capacities - A 48.52
