668919 Removing and installing rear-view mirror

WM 668919 Removing and installing rear-view mirror

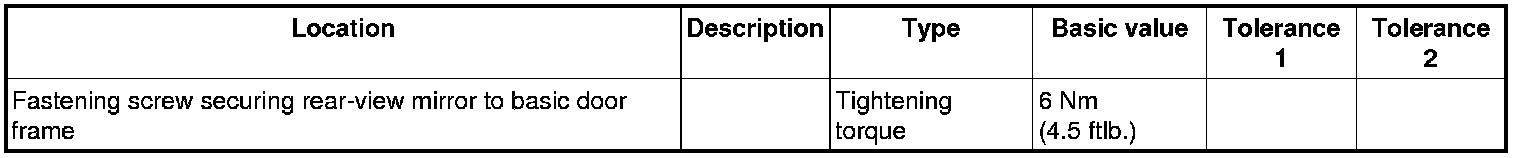

Technical values





Preliminary work

1. Remove trim panel for mirror triangle. -> 707019 Removing and installing trim panel for mirror triangle - section on "Removing" 707019 Removing and installing trim panel for mirror triangle

Removing rear-view mirror

Disconnecting plug connection for rear-view mirror





Installation position of rear-view mirror

1. Pull plug connection -1- off the rear-view mirror -2- ( -arrow- ).





Pulling off plug connection

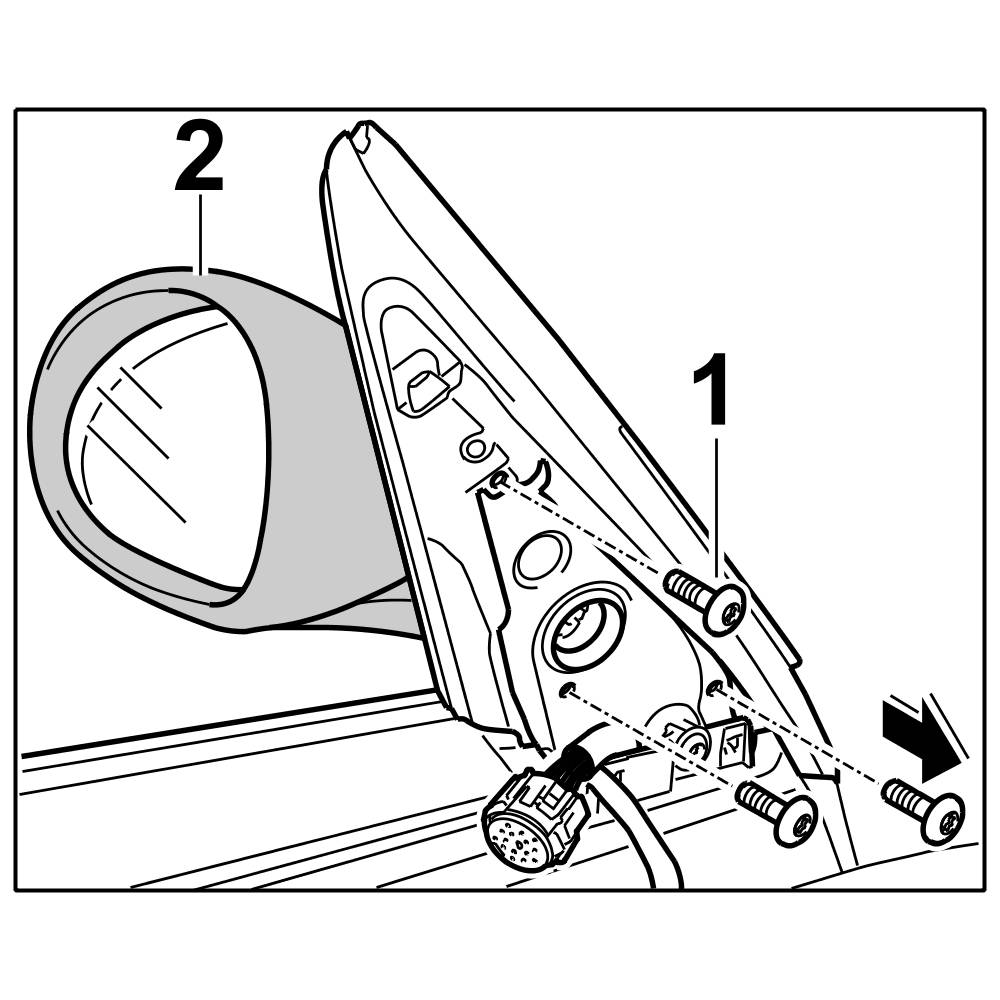

Removing rear-view mirror

1. Unscrew fastening screws -1- ( -arrow- ) and remove rear-view mirror -2-.





Removing rear-view mirror

Installing rear-view mirror

1. Fit rear-view mirror -2- and secure with the fastening screws -1- ( -arrow- ). => Tightening torque: 6 Nm (4.5 ftlb.)





Installing rear-view mirror

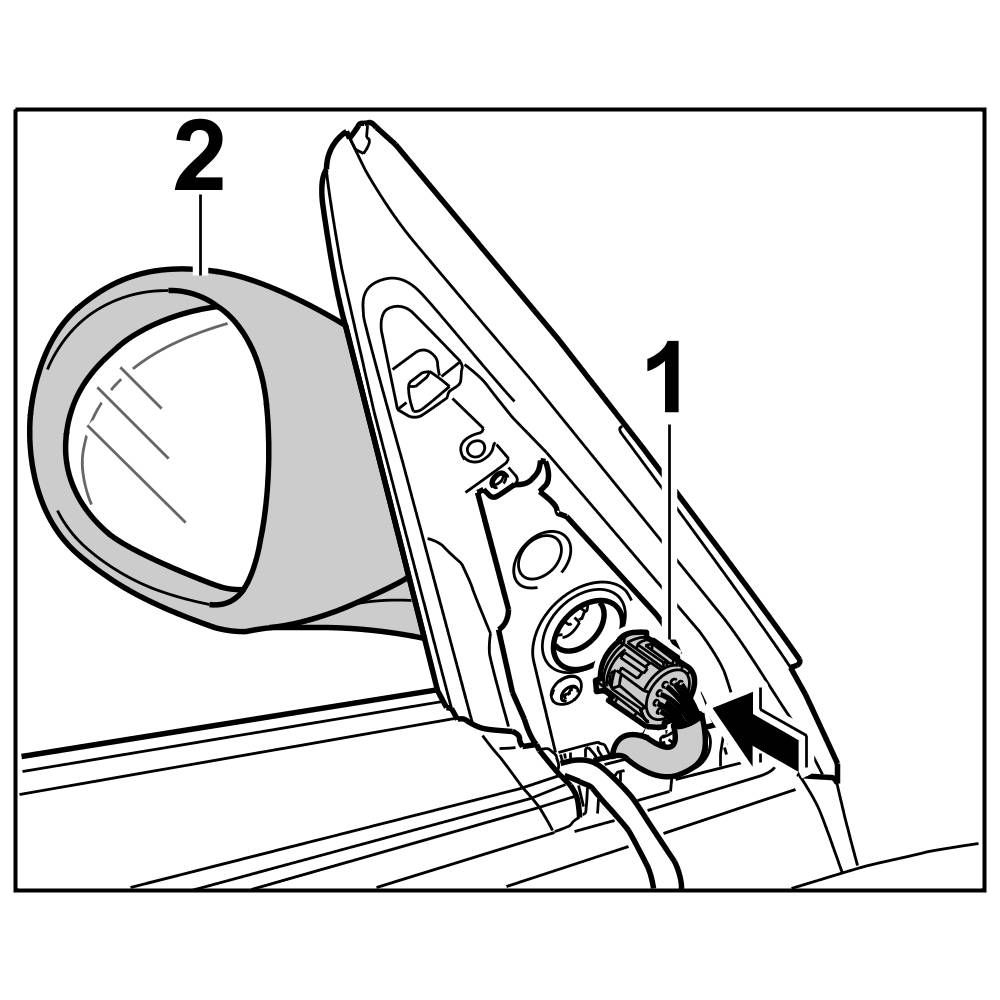

Locking plug connection for rear-view mirror

1. Insert plug connection -1- into the rear-view mirror -2- ( -arrow- ).





Locking plug connection

Subsequent work

1. Install trim panel for mirror triangle. -> 707019 Removing and installing trim panel for mirror triangle - section on "Installing" 707019 Removing and installing trim panel for mirror triangle
