72061900 Removing and installing air cushion switch
WM 720619 Removing and installing air cushion switch
Preliminary work
Remove control module trim panel (electric). -> 721619 Removing and installing control module trim panel - section on "Removing" 721619 Removing and installing control module trim panel
Removing air cushion switch
Removing control unit for memory seat adjustment with support

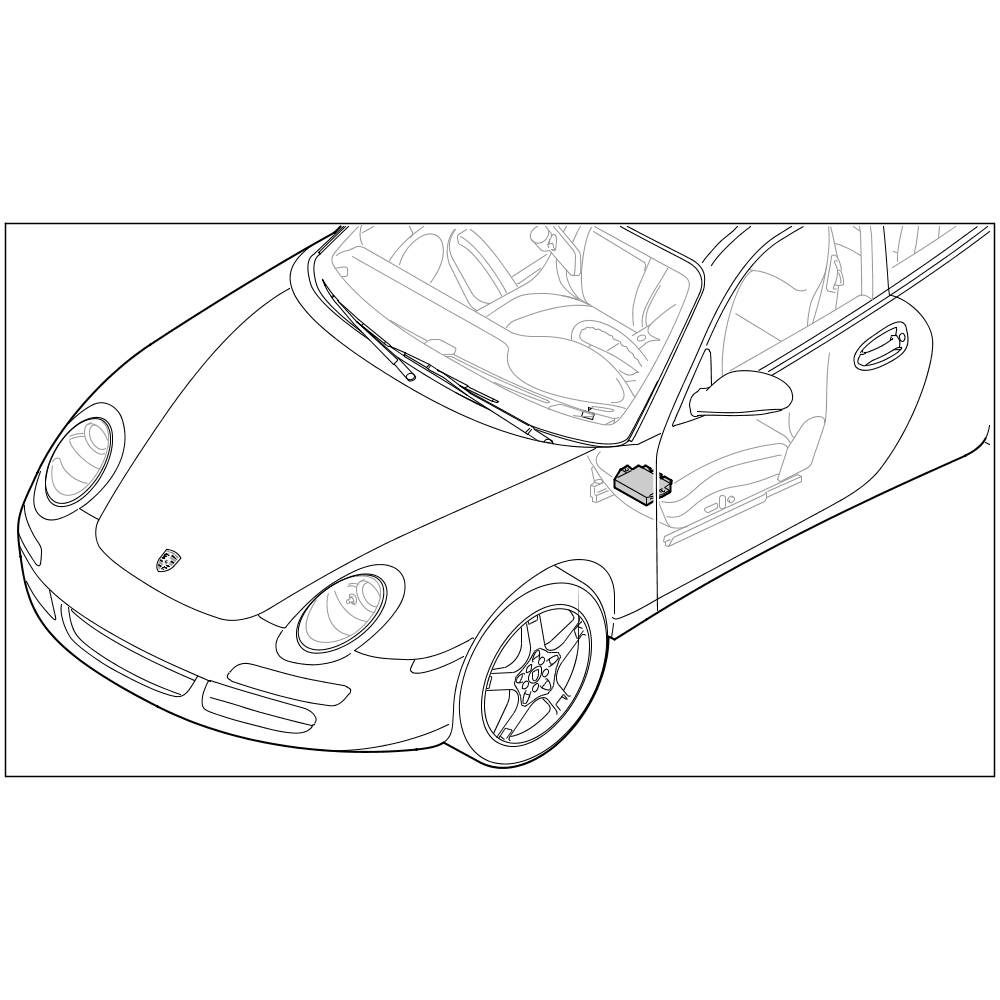

Installation position shown on the 911
1. Unscrew the two fastening screws -1- and remove control unit for memory seat adjustment together with the support -2- from the seat frame.

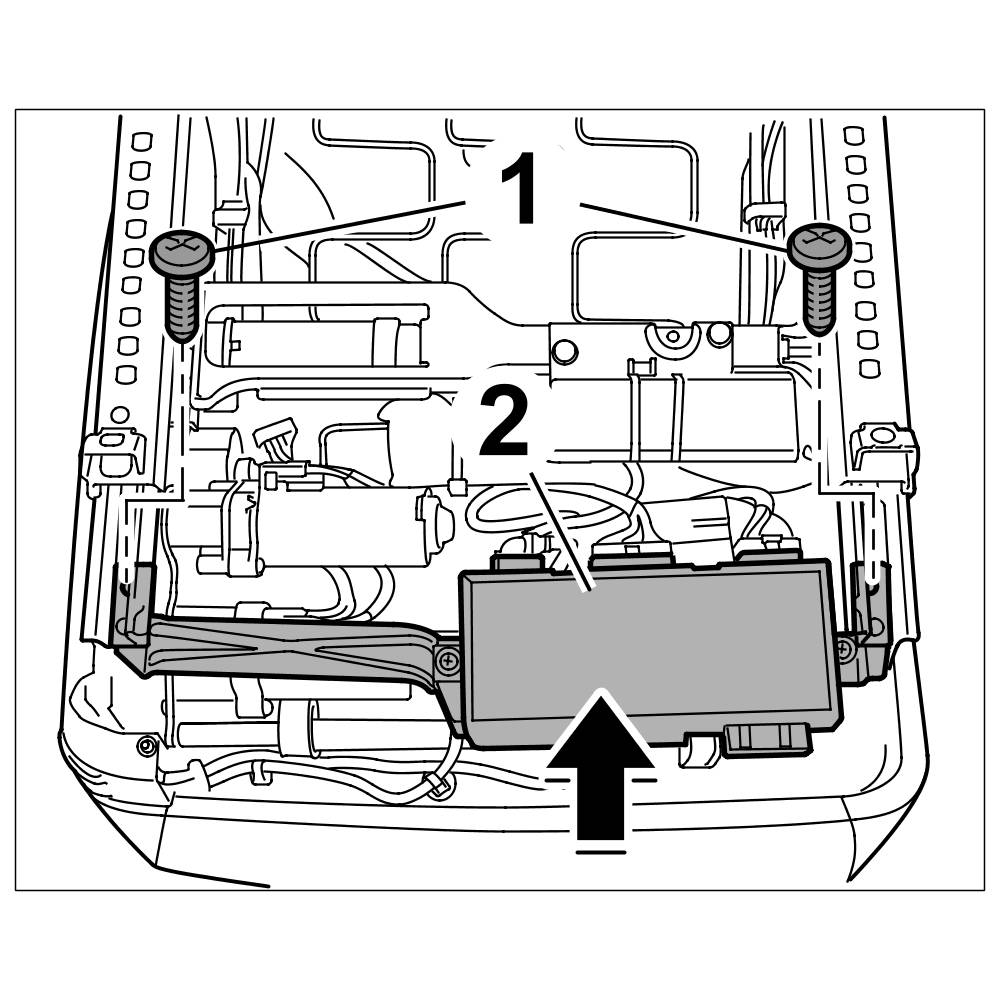

Removing control unit for memory seat adjustment with support
2. Unlock and pull off the three connectors on the control unit for memory seat adjustment -arrows a-.

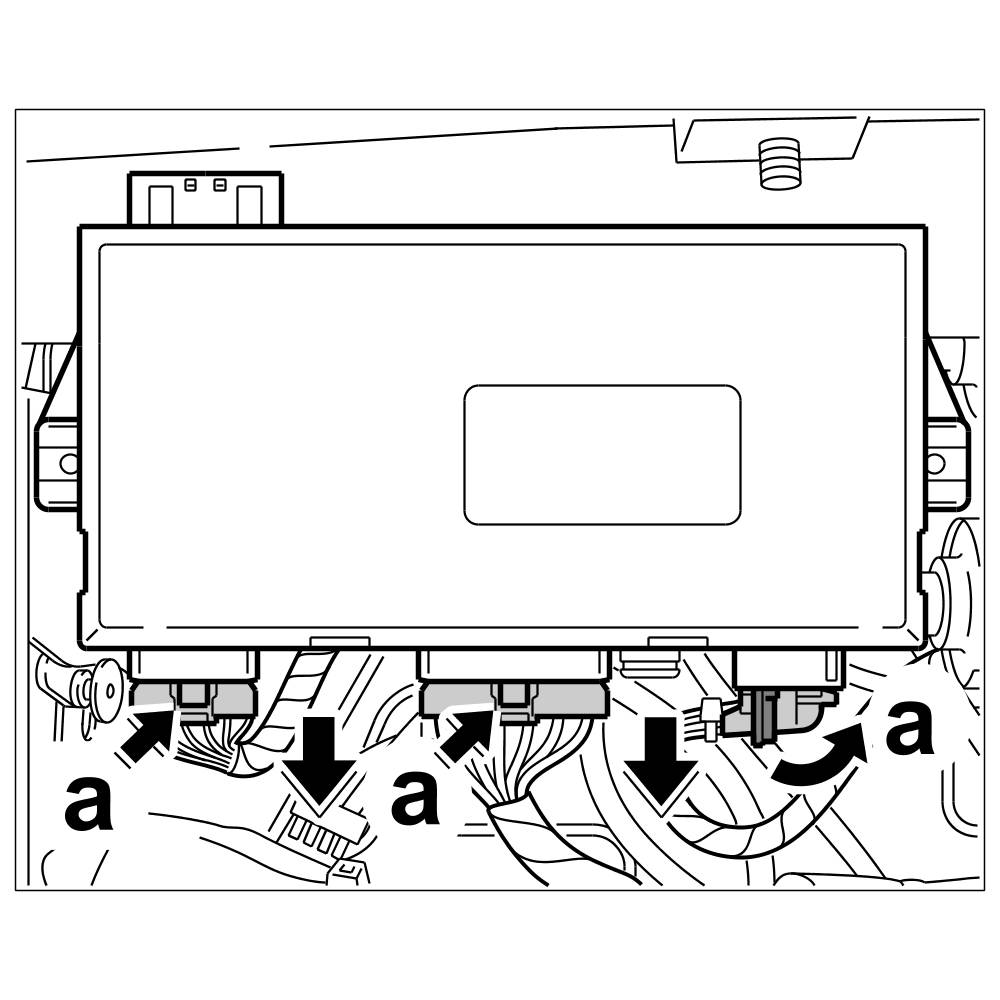

Pulling off connectors on control unit for memory seat adjustment
Removing switch for air cushion

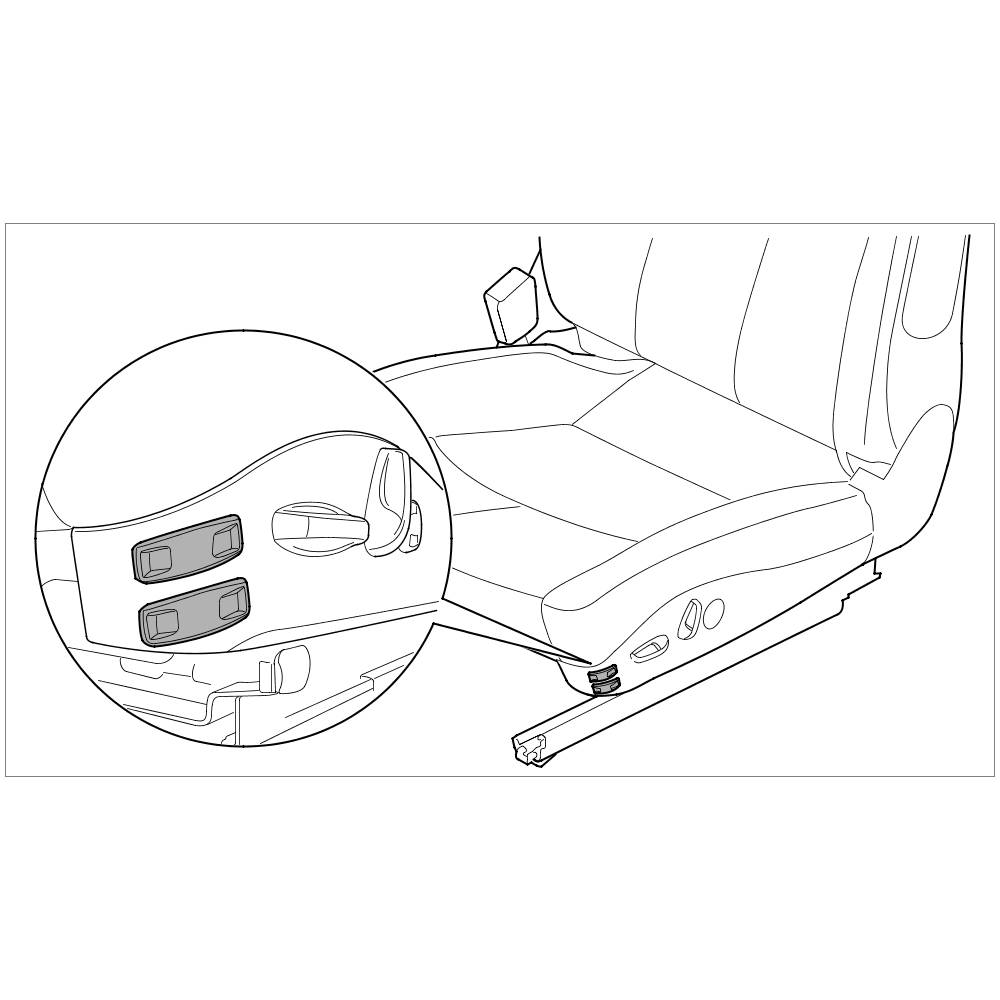

Installation position of switch for air cushion
1. Remove the two tie-wraps -2- on wire harness of switch for air cushion -1-.

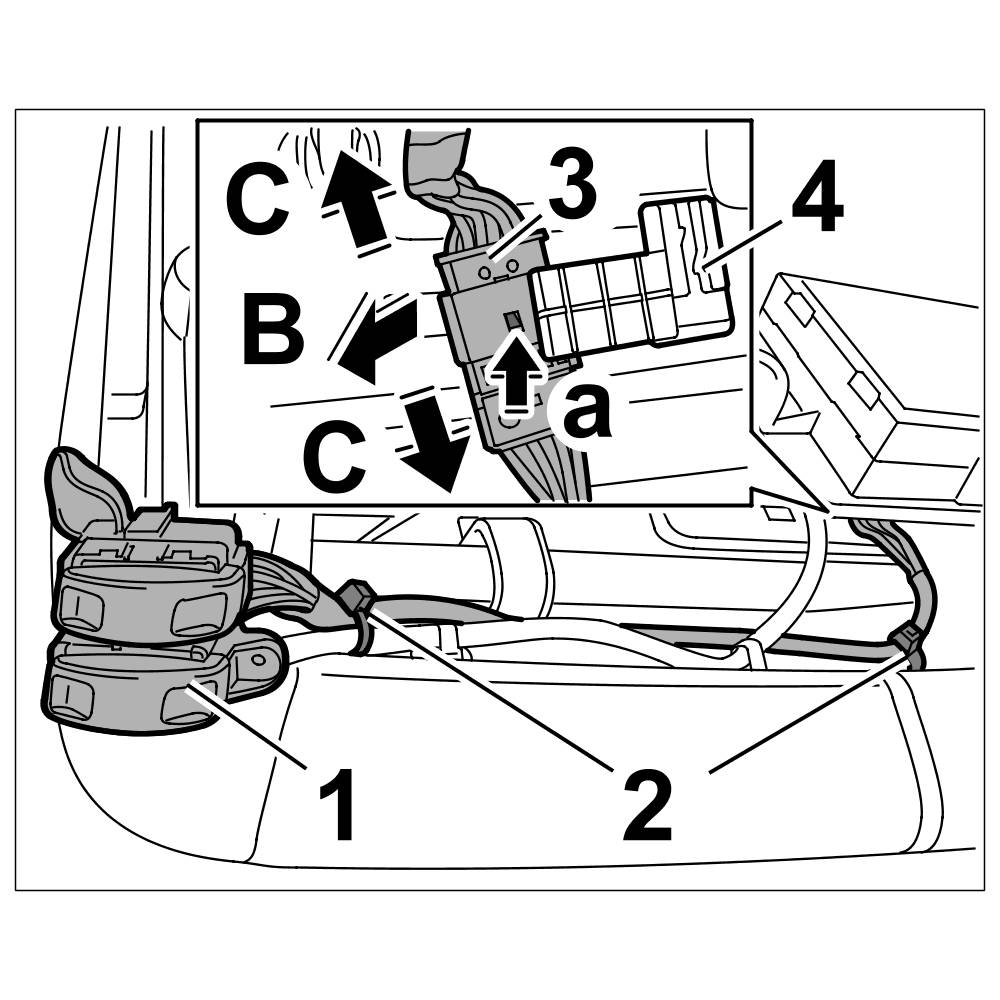

Removing switch for air cushion
2. Pull plug connection -3- out of holder -4- ( -arrow B- ).
3. Release plug connection -3- ( -arrow a- ) and disconnect it -arrows C-.
Installing air cushion switch
Installing switch for air cushion
1. Push plug connection -3- together -arrows A- until it engages securely.

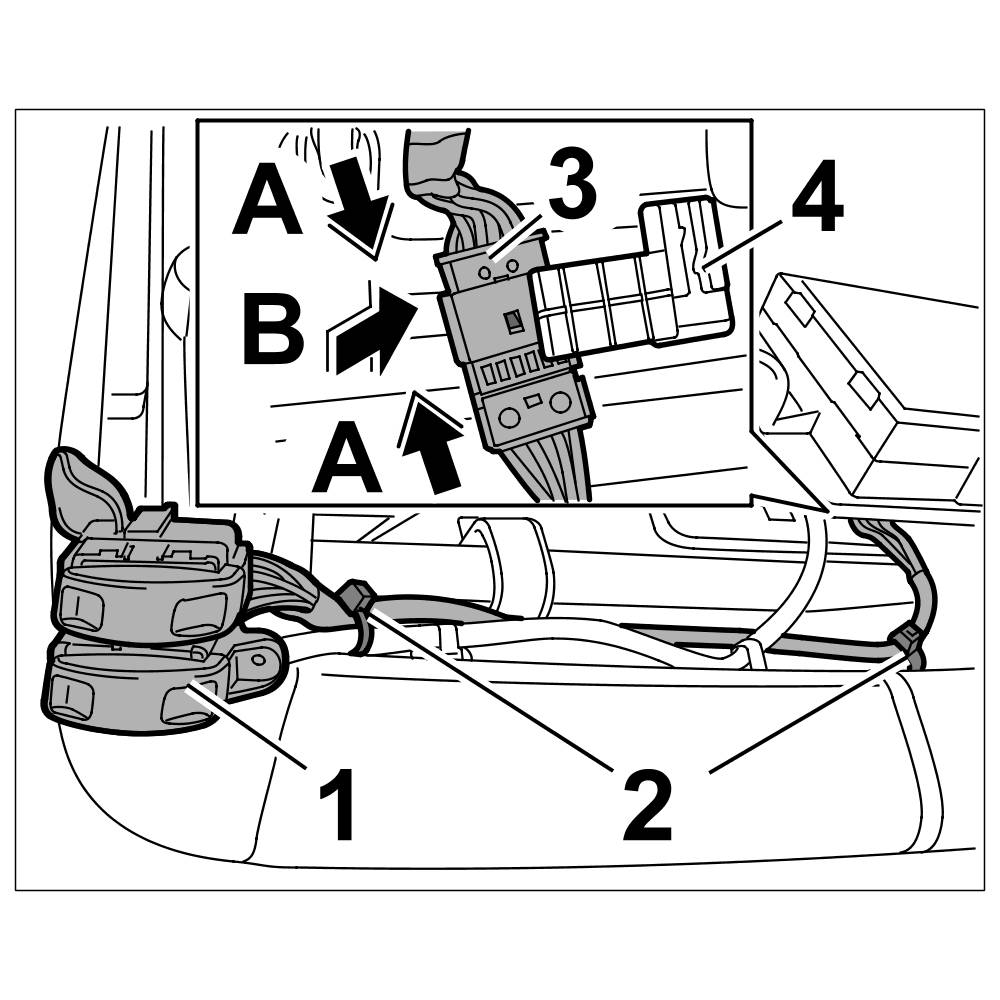

Installing switch for air cushion
2. Push plug connection -3- into holder -4- ( -arrow B- ).
3. Lay wire harness of switch for air cushion -1- and secure with two new tie-wraps -2-.
Installing control unit for memory seat adjustment with support
1. Attach the three connectors on the control unit for memory seat adjustment until they are felt to engage.

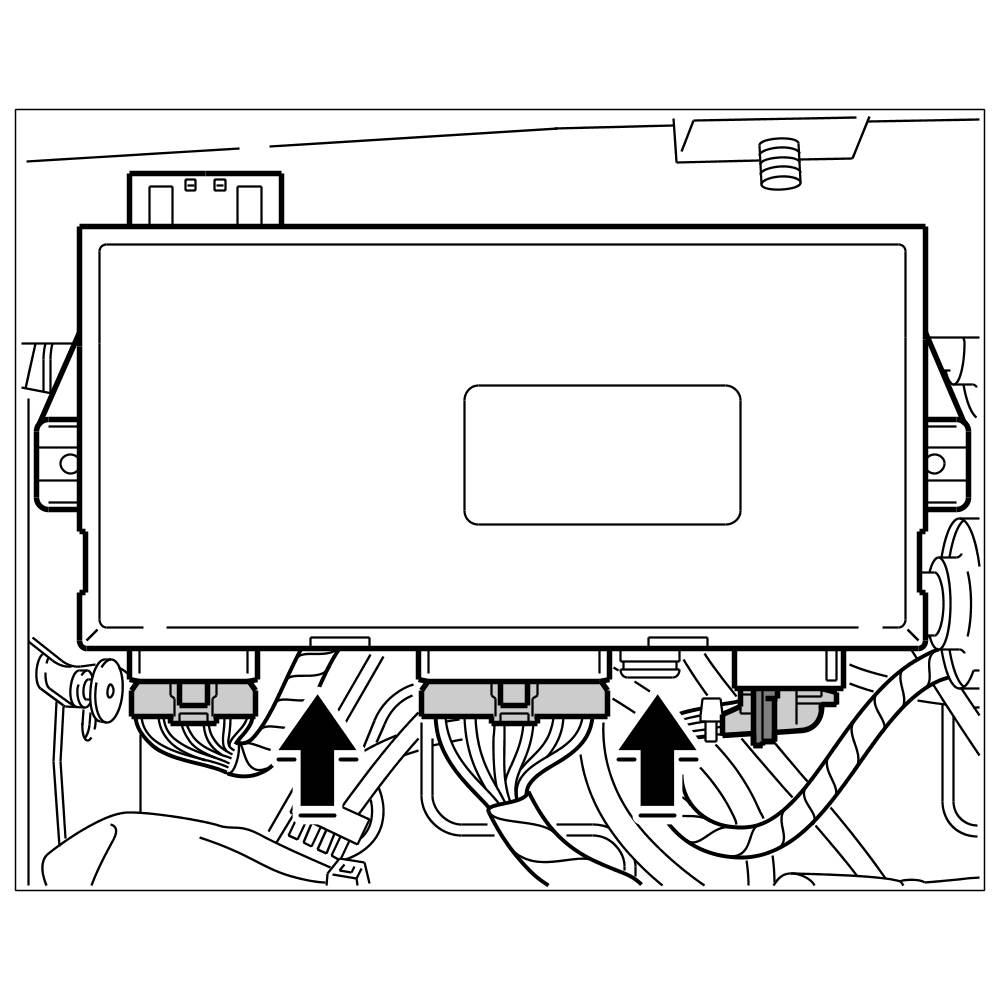

Attaching connectors on control unit for memory seat adjustment
2. Position control unit for memory seat adjustment with support -2- on seat frame and secure with both fastening screws -1-.
Installing control unit for memory seat adjustment with support
Subsequent work
Install control module trim panel (electric). -> 721619 Removing and installing control module trim panel - section on "Installing" 721619 Removing and installing control module trim panel
