707519 Removing and installing side trim panel

WM 707519 Removing and installing side trim panel

Technical values





Preliminary work

Remove oddments tray.

Removing side trim panel

1. Unscrew fastening screws -1- , lift side trim panel -2- from lower side member and pull out.





Removing side trim panel

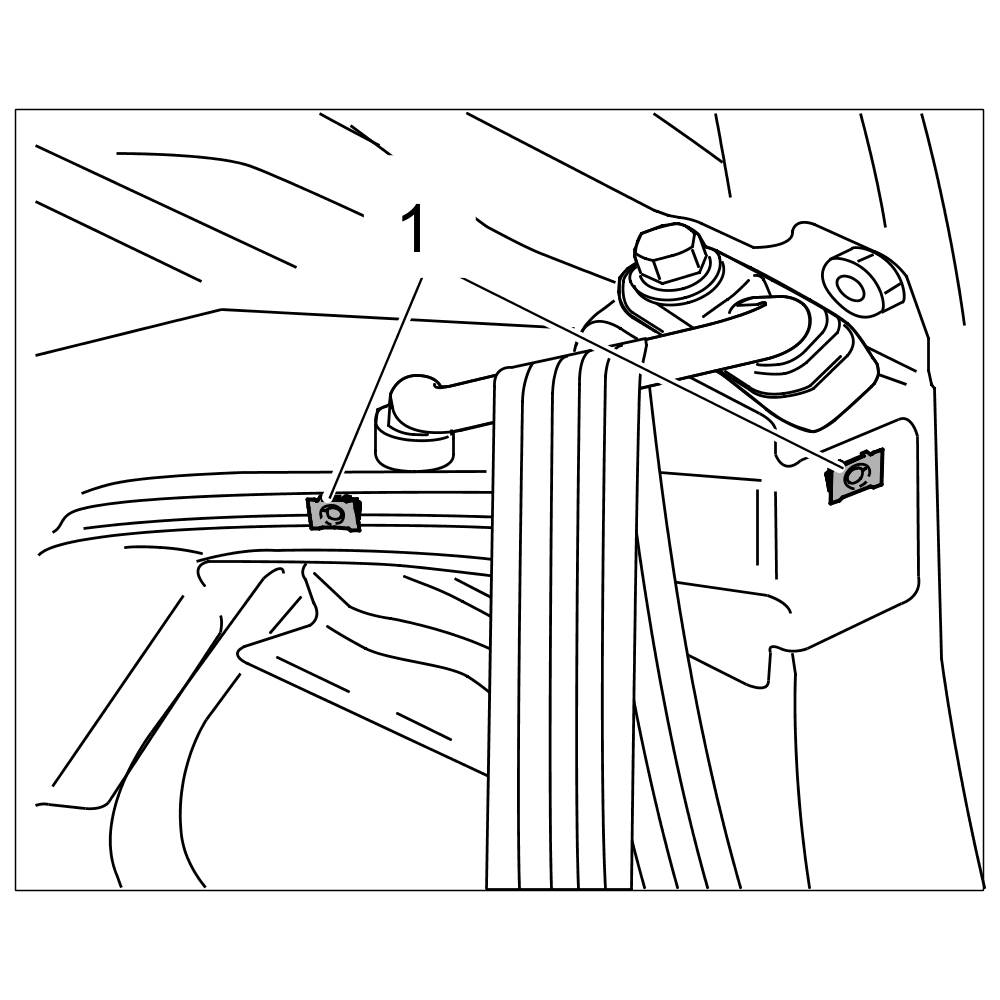

2. Check fastening nuts -1- and replace if necessary





Checking fastening nuts

Installing side trim panel

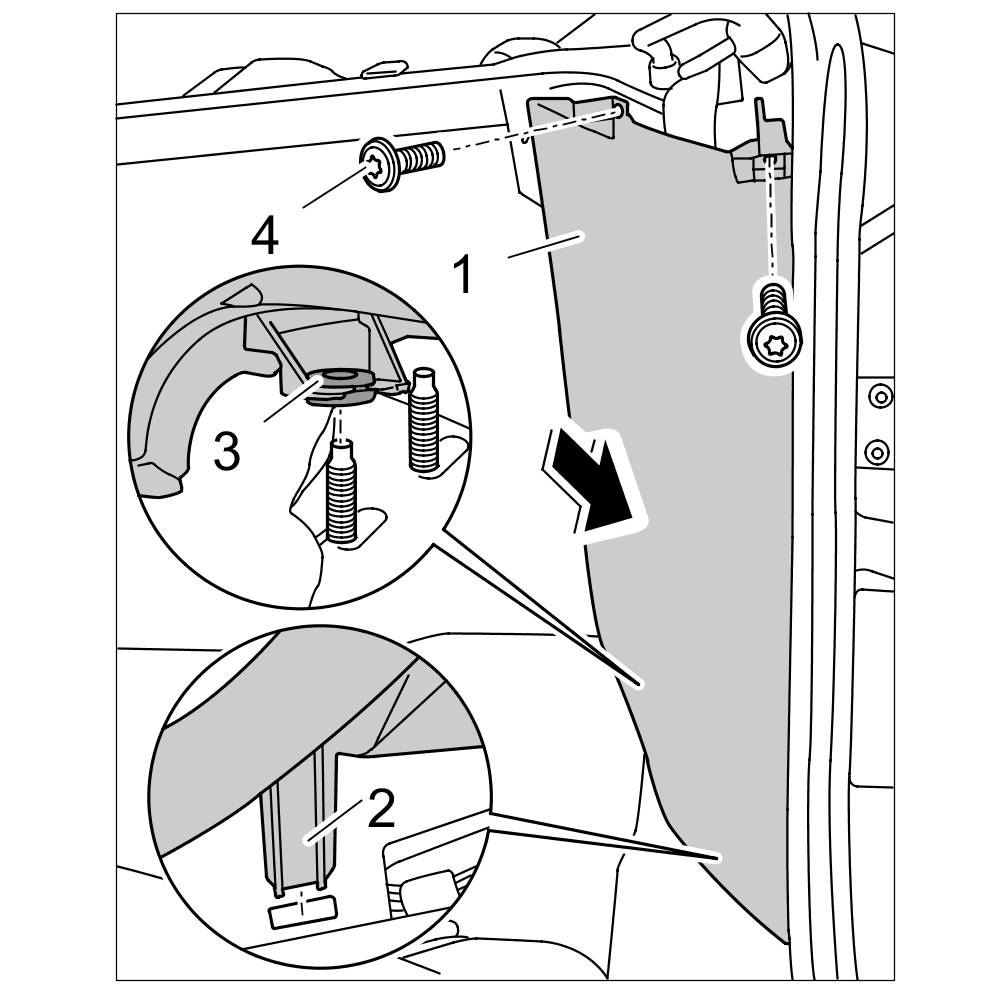

1. Insert side trim panel -1- with locking tab -2- and rubber sleeve -3- into the inner side member and then screw into place with the fastening screws -4-. => Anziehdrehmoment: 1.5 Nm (1.0 ftlb.)+0.1 Nm (+0.1 ftlb.)





Installing side trim panel

2. Lift up the rubber seal for the door -1- using a plastic wedge -2- along the side trim panel -3-.





Aligning rubber seal

Subsequent work

Install oddments tray.
