Utility Storage Compartment: Service and Repair

WM 681619 Removing and installing oddments tray

Preliminary work

1. Remove centre console. -> 681719 Removing and installing centre console - section on "Removing" 681719 Removing and installing centre console
2. Remove lid for oddments tray. -> 68481900 Lid for oddments tray - section on "Removing" 68481900 Removing and installing lid for oddments tray

Removing oddments tray

Removing shelf

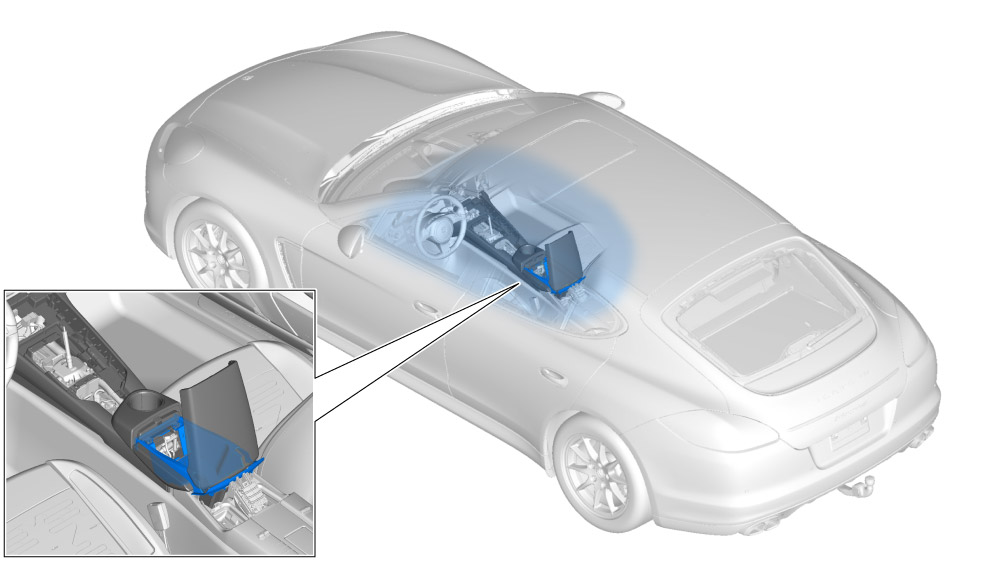

Installation location for shelf

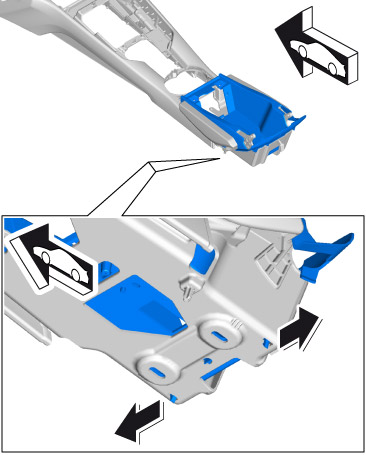

1. Unclip shelf.





Unclipping shelf

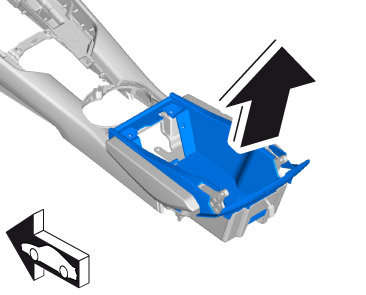

2. Lift oddments tray up and out.





Removing oddments tray

Installing oddments tray

1. Insert oddments tray from behind.

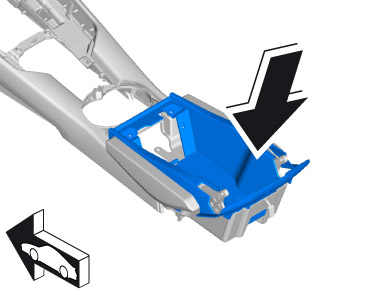

2. Clip in oddments tray.





Clipping in oddments tray

Subsequent work

1. Install lid for oddments tray. -> 68481900 Lid for oddments tray - section on "Installing" 68481900 Removing and installing lid for oddments tray
2. Install centre console. -> 681719 Removing and installing centre console - section on "Installing" 681719 Removing and installing centre console
