728819 Removing and installing motor for front vertical adjustment

WM 728819 Removing and installing motor for front vertical adjustment

Technical values





Information

Installation position of motor for front vertical adjustment





Installation position of motor for front vertical adjustment

Preliminary work

1. Remove front seat.
-> 720119 Removing and installing front seat - section on "Removing" 720119 Removing and Installing Front Seat

Removing motor for front vertical adjustment

1. Pull off connector -1- on motor for front vertical adjustment -3-.





Removing motor for front vertical adjustment

2. Unscrew the two fastening screws -2- and remove motor for front vertical adjustment -3-.
3. Pull the drive shaft -1- out of the transmission mount -2- and check it for damage.





Removing drive shaft

Installing motor for front vertical adjustment

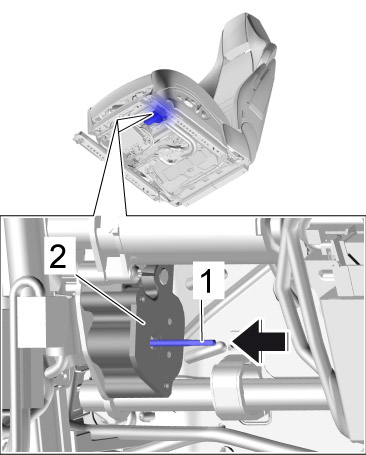

1. Insert the drive shaft -1- into the transmission mount by turning it slightly -2-.





Installing drive shaft

2. Slide motor for front vertical adjustment -3- onto the drive shaft by turning it slightly and secure with the two fastening screws -2-. => Tightening torque: 7 Nm (5 ftlb.)





Installing motor for front vertical adjustment

3. Plug in connector -1- on motor for front vertical adjustment -3- until it engages securely.

Subsequent work

1. Install front seat.
-> 720119 Removing and installing front seat - section on "Installing" 720119 Removing and Installing Front Seat
