Dashboard / Instrument Panel: Testing and Inspection

Eliminating Symptoms In Body Interior: Replacing Loudspeaker Cover (I-no. 682) (Burmester Loudspeaker Cover Is Reflected In The Windscreen/SY1509)

General information

Symptom

If equipment variant "Top Premium sound system (I-no. 682, Burmester loudspeaker)" is used, the chrome-plated cover for the speakers can be reflected in the windscreen.







Causes and remedial action

Remedial action

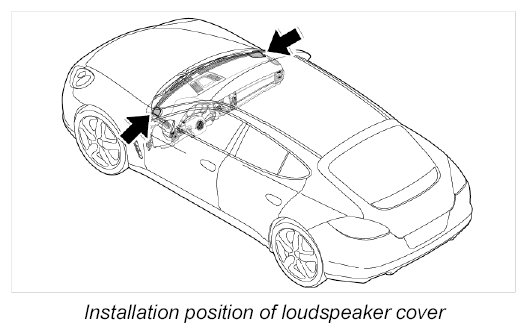

Replace the cover for the left and right loudspeakers with a cover in interior colour.

INFORMATION: The part numbers listed below must only be used if the complaint Loudspeaker cover is reflected in the windscreen is received.

Tools and materials

Loudspeaker trim, tweeter

Cognac:
970.552.901.00.2S0 -> Cover, left (cognac)
970.552.902.00.2S0 -> Cover, right (cognac)

Espresso:
970.552.901.00.3T0 -> Cover, left (espresso)
970.552.902.00.3T0 -> Cover, right (espresso)

Platinum Grey:
970.552.901.00.4U0 -> Cover, left (platinum grey)
970.552.902.00.4U0 -> Cover, right (platinum grey)

Black:
970.552.901.00.5Q0 -> Cover, left (black)
970.552.902.00.5Q0 -> Cover, right (black)

Luxor Beige:
970.552.901.00.6W0 -> Cover, left (luxor beige)
970.552.902.00.6W0 -> Cover, right (luxor beige)

Yachting Blue:
970.552.901.00.8Y0 -> Cover, left (yachting blue)
970.552.902.00.8Y0 -> Cover, right (yachting blue)
