Ground Locations

Ground Points Topology - Sheet 17B

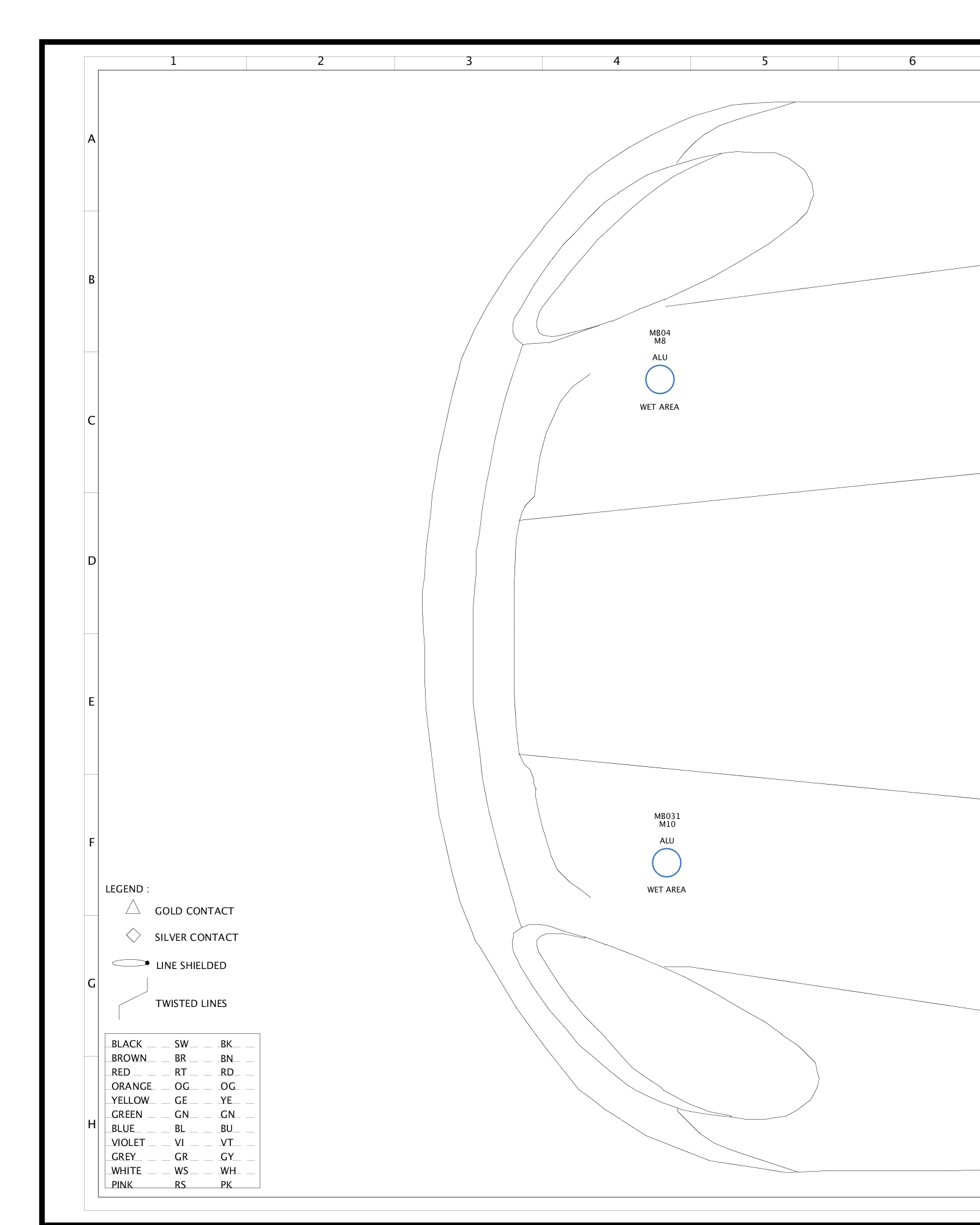

Ground Points Topology - Sheet 17B (Part 1):

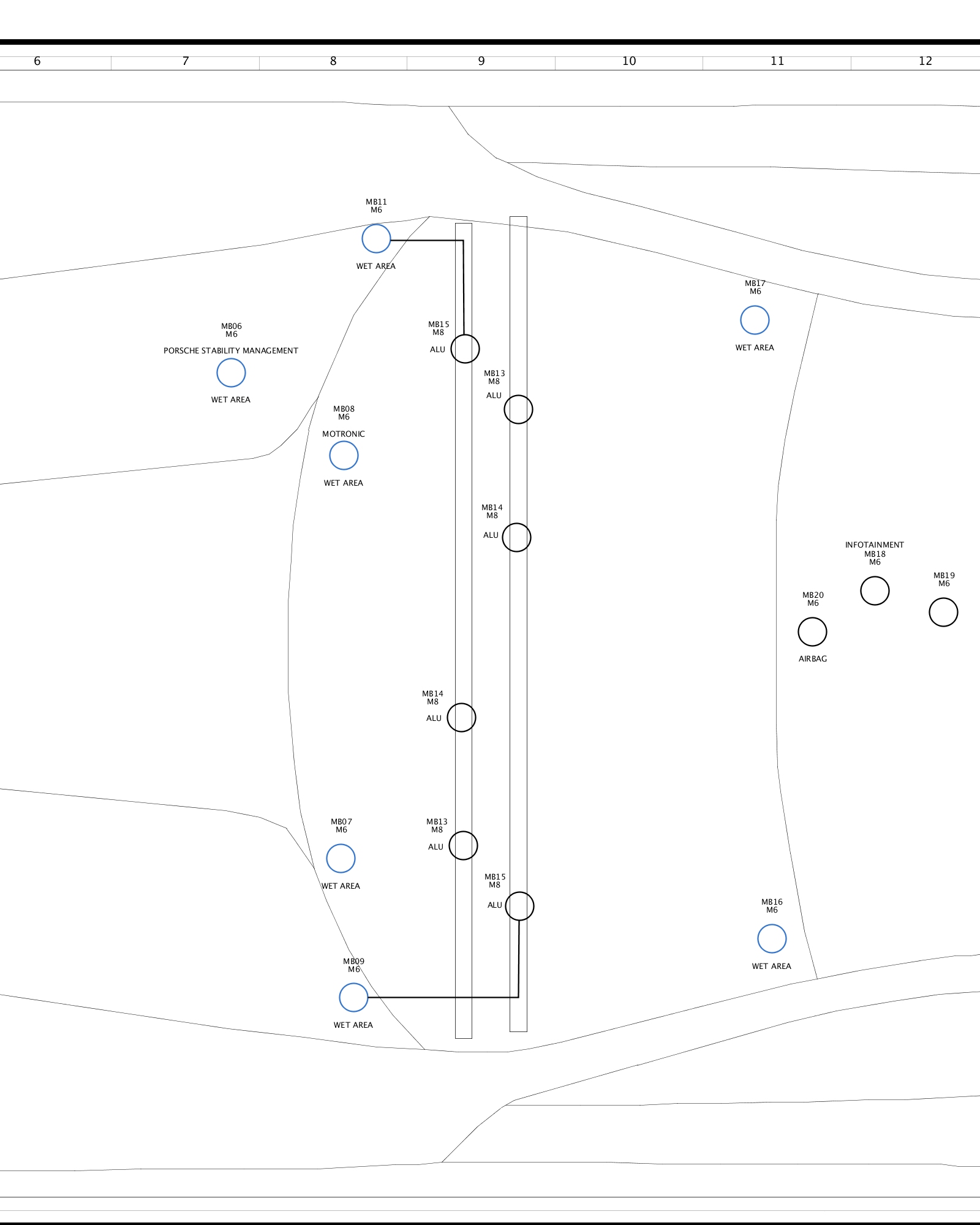

Ground Points Topology - Sheet 17B (Part 2):

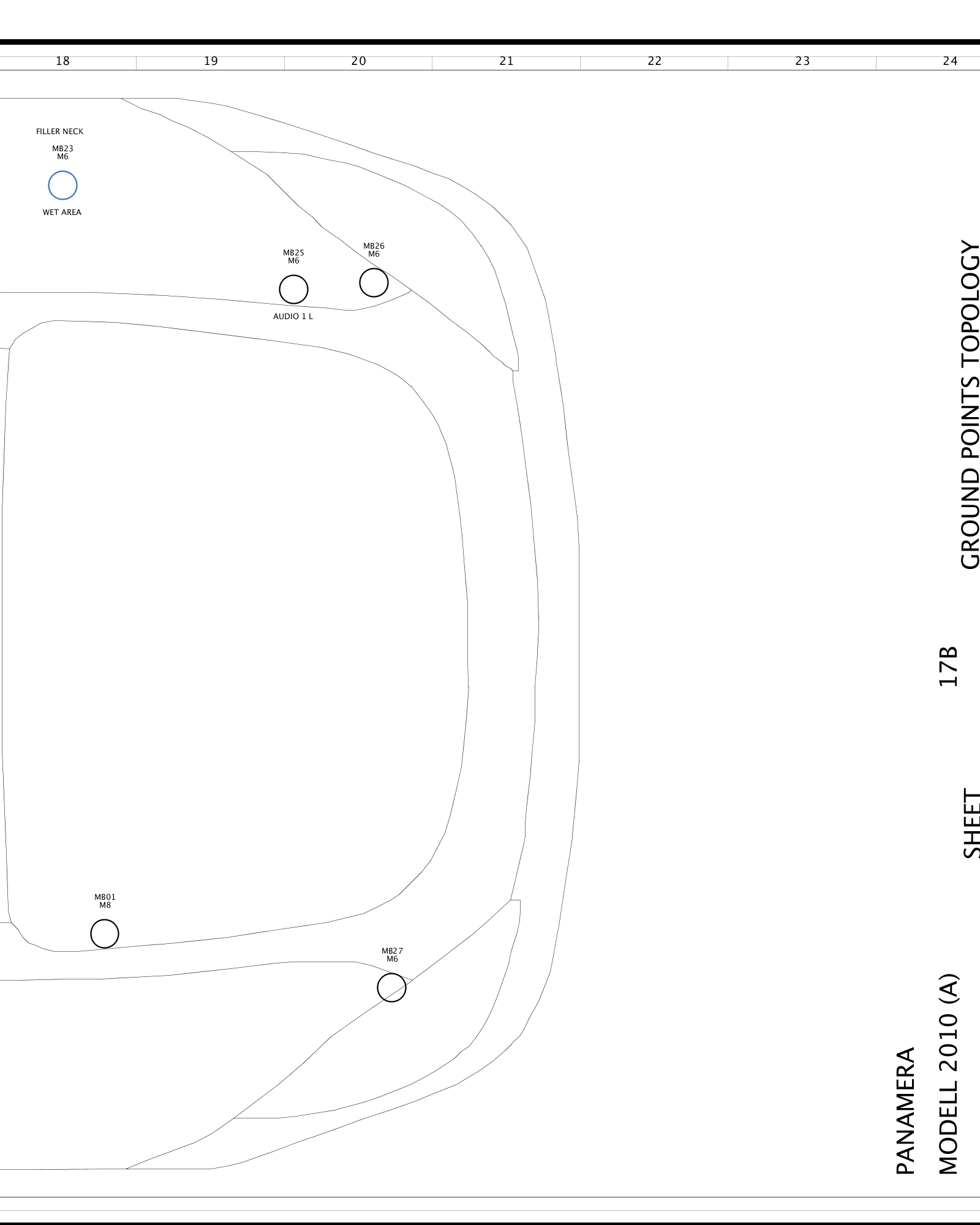

Ground Points Topology - Sheet 17B (Part 3):

Ground Points Topology - Sheet 17B (Part 4):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
