480855 Replacing ELV control unit

WM 480855 Replacing ELV control unit

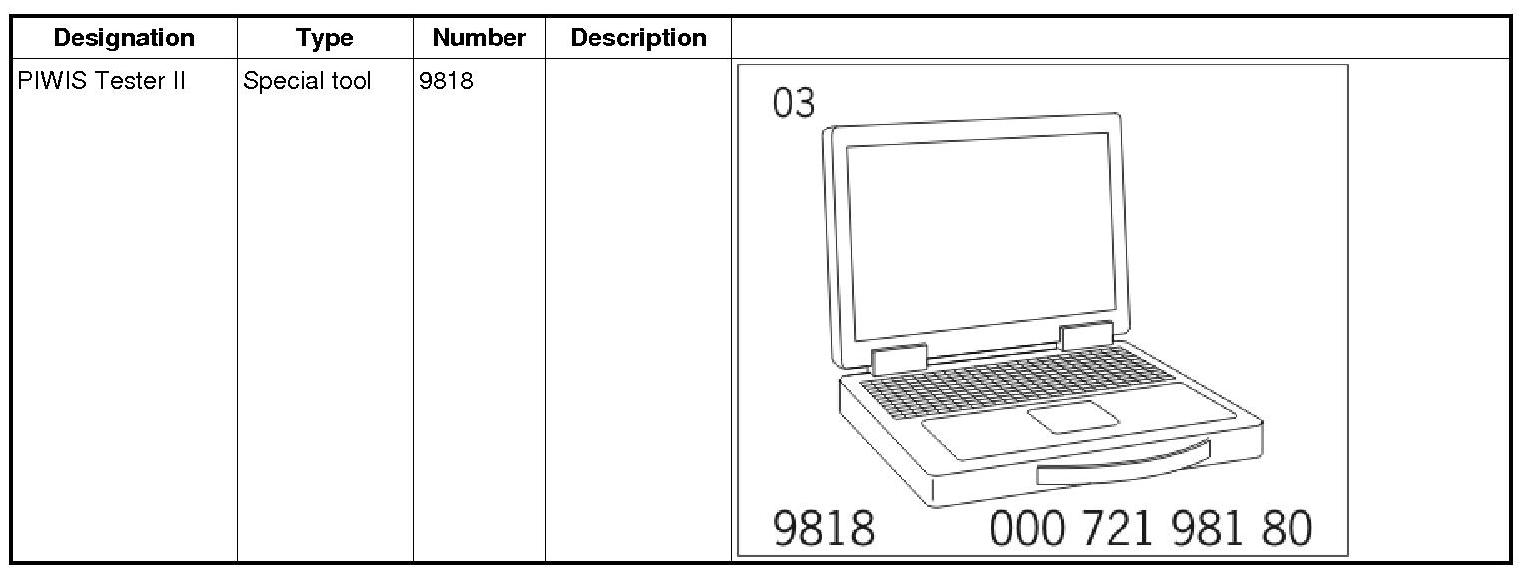

Tools





Technical values





Teaching ELV control unit

NOTICE

Voltage drop

- Risk of irreparable damage to control unit
- Risk of damage to control unit
- Fault entries in the control unit
- Coding in the control unit is aborted
- Malfunctions in control unit, even during programming

-> Prior to disconnecting the control unit, switch off the ignition and remove the ignition key.
-> Ensure that the power supply is not interrupted during programming.
-> Connect a battery charger with a current rating of at least => Nominal value: 40 A to the vehicle battery.

Information

The PIWIS Tester II 9818 instructions take precedence since the description may be different with later Tester releases.

The procedure described here has been structured in general terms; different text or additions may appear in PIWIS Tester II 9818.

Information

All remote controls (keys) are required for teaching a DME, front-end electronics (front BCM), rear-end electronics (rear BCM), electronic steering lock (ELV) control unit or remote controls (keys).

Remote controls (keys) that are not taught during this teaching procedure will no longer be recognised by the vehicle.

1. Switch off ignition and replace the ELV control unit. -> 480819 Removing and installing ELV control unit 480819 Removing and installing ELV control unit.
2. PIWIS Tester II 9818 must be connected to the vehicle before starting the System Tester. Switch on ignition using original remote control.
3. Select the Online teaching function menu on the Start page.
4. Select Vehicle and press >>. Vehicle data will be read out.
5. The vehicle identification number (VIN) is displayed. Adapt the vehicle identification number if necessary.
6. Enter the repair order number and press >>.
7. Enter the PPN user name and password and press >>.
8. Login is performed.
9. The Tester displays the message Login successful. Press >>.
10. Follow the instructions on the Tester to select the required menu.
11. Once the teaching process is completed successfully, the Tester shows the following status, for example:
2 keys taught
Front BCM: taught
ELV: taught
Rear BCM: taught
DME: taught
Overall vehicle status: taught
12. >>.
13. Press EXIT to exit the Online teaching function and select the vehicle type on the Start page.
14. Press F7 Read all fault memories and erase if required and delete all faults.
15. Lock, open and start the vehicle using all remote controls.
16. Read out the fault memory again.
