Electric Parking Brake Switch: Service and Repair

WM 466119 Removing and installing actuator for electric parking brake (EPB)

Removing and installing actuator for electric parking brake

Information

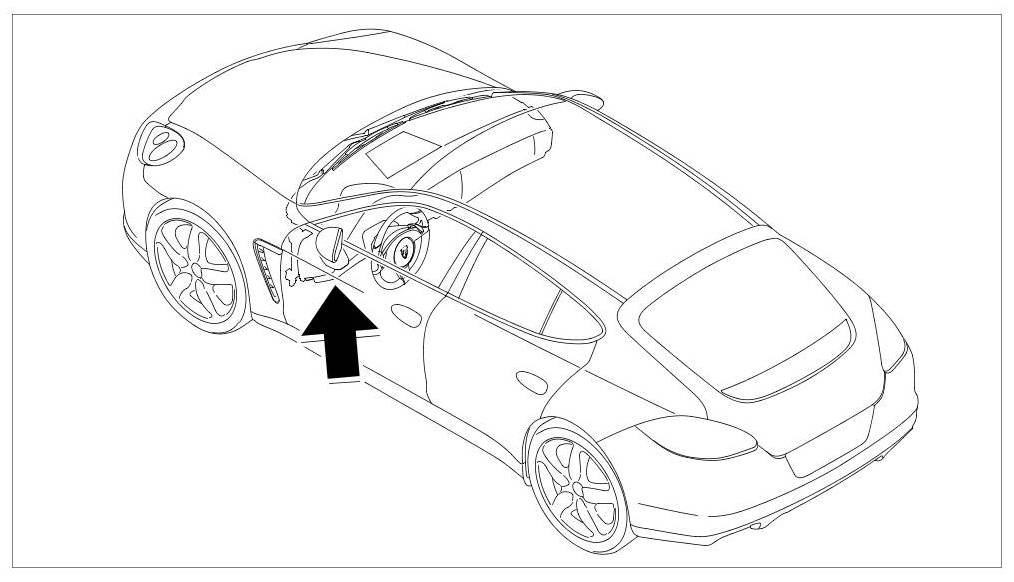

The actuator for the parking brake is located on the driver's side, at the left under the steering wheel -arrow-. -> 4661IN Component arrangement - electric parking brake (EPB) Locations





Installation position of EPB actuator

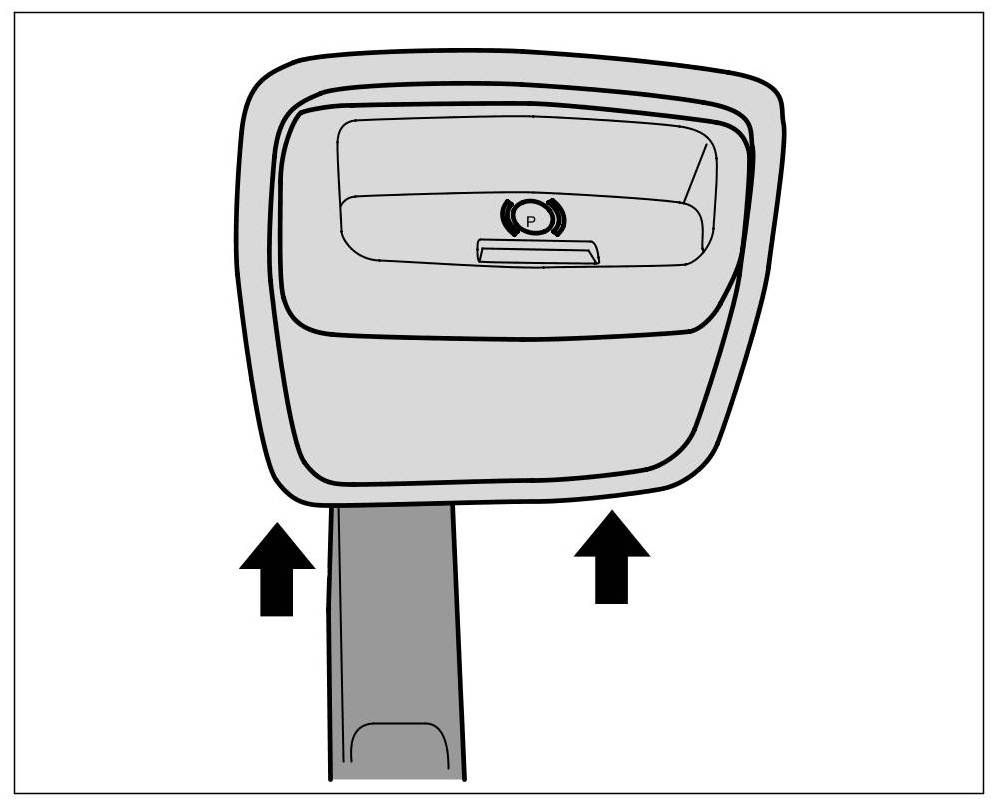

1. The parking brake actuator is clipped into the knee guard at four points, two at the bottom -arrows- and two at the top.





Unclipping actuator

1.1. Open the driver's door. Using a plastic wedge, carefully prise the clips out of the surround on the actuator from underneath. Make sure not to damage the leather!

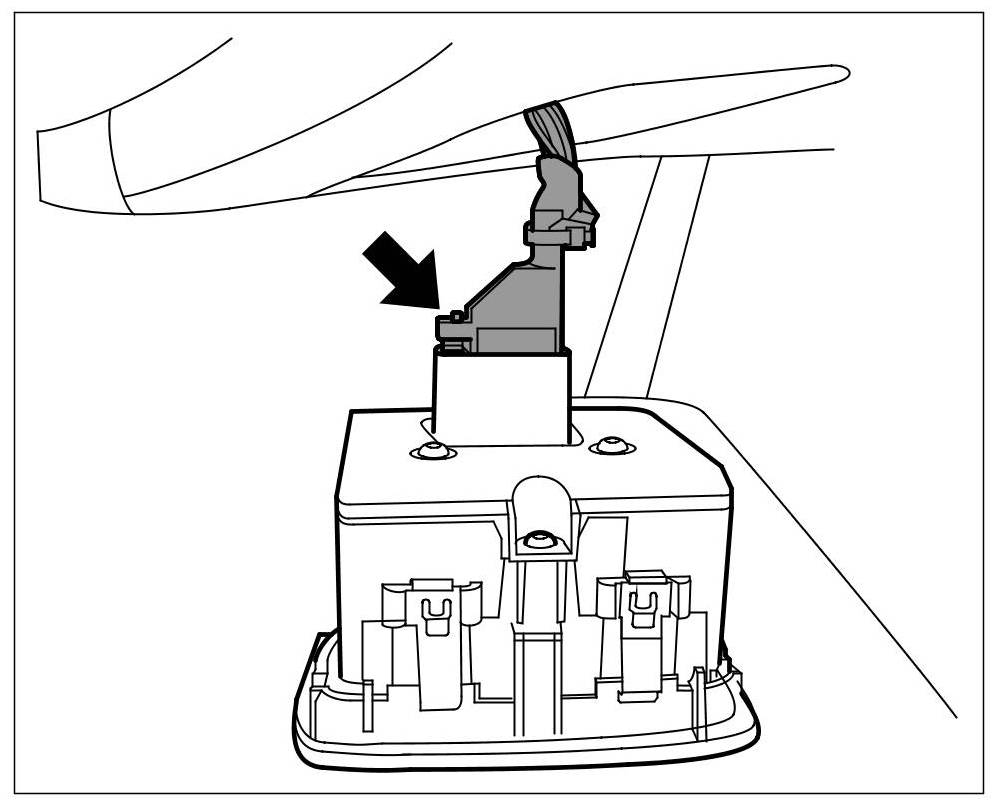

2. Release the lock on the connector -arrow- and pull off the connector.





Releasing lock on connector

Installation is performed in reverse order.

The lock on the connector must engage correctly.

Perform a function test.
- The indicator light in the parking brake actuator must be ON when you close it.
- The indicator light in the parking brake actuator must be OFF when you open it.
- Check for locking and release noises from the electric parking brake actuators when you actuate them.
