4X00IN Tightening torques for brake mechanics

WM 4X00IN Tightening torques for brake mechanics

Technical values

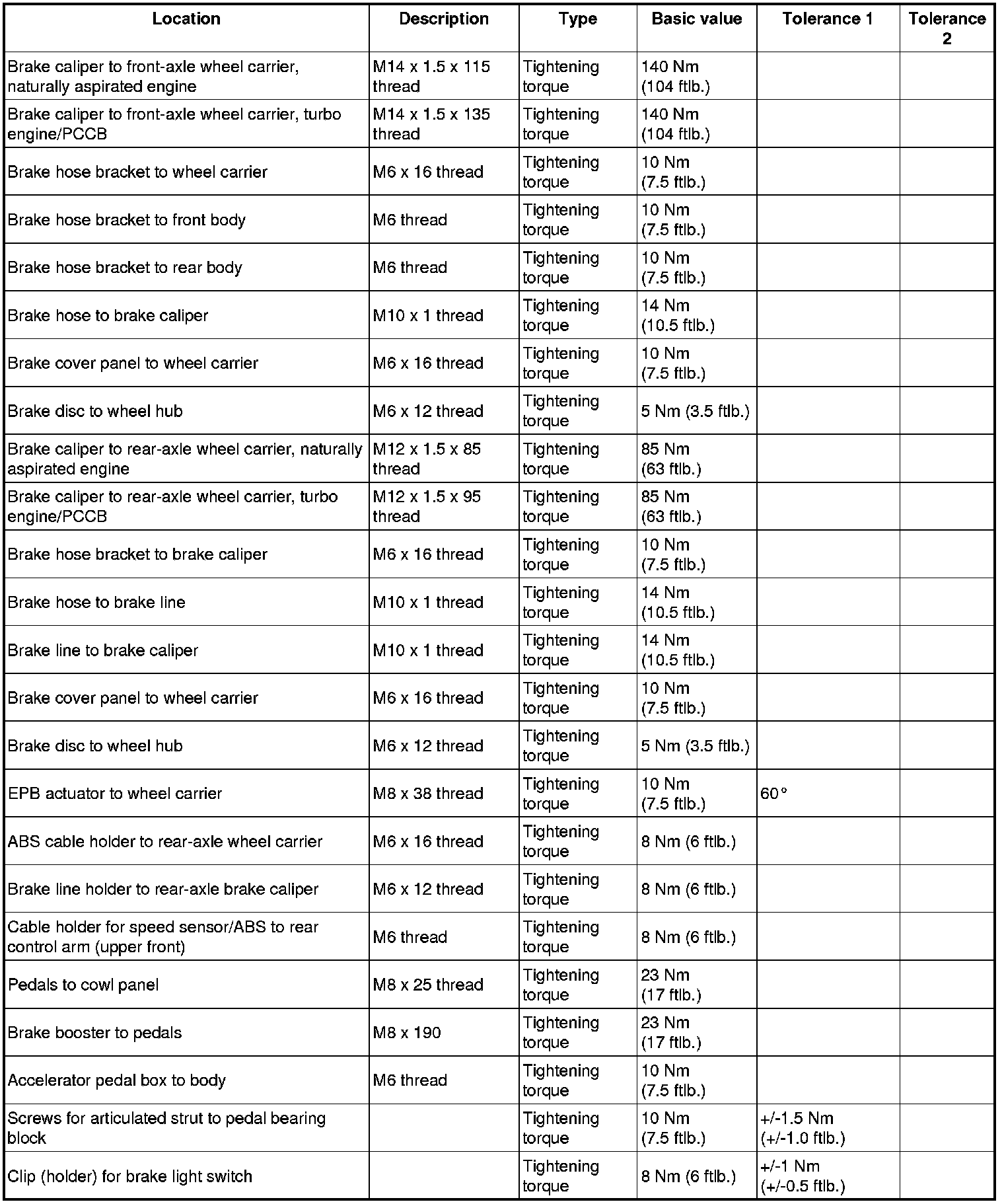

Tightening torques for brake mechanics

Information

Always replace screws using the torque angle tightening procedure.

Always replace lock nuts.

Always replace screws on the brake caliper.

Screws and lock nuts are Geomet-coated and must not be greased.

Wheel bolts must never be greased.

Wheel bolts must never be reworked >> always replace wheel bolts.

Always use correct tightening torques and torque angle.
