Front-End Electronics - Sheet 1

Front-End Electronics - Sheet 1

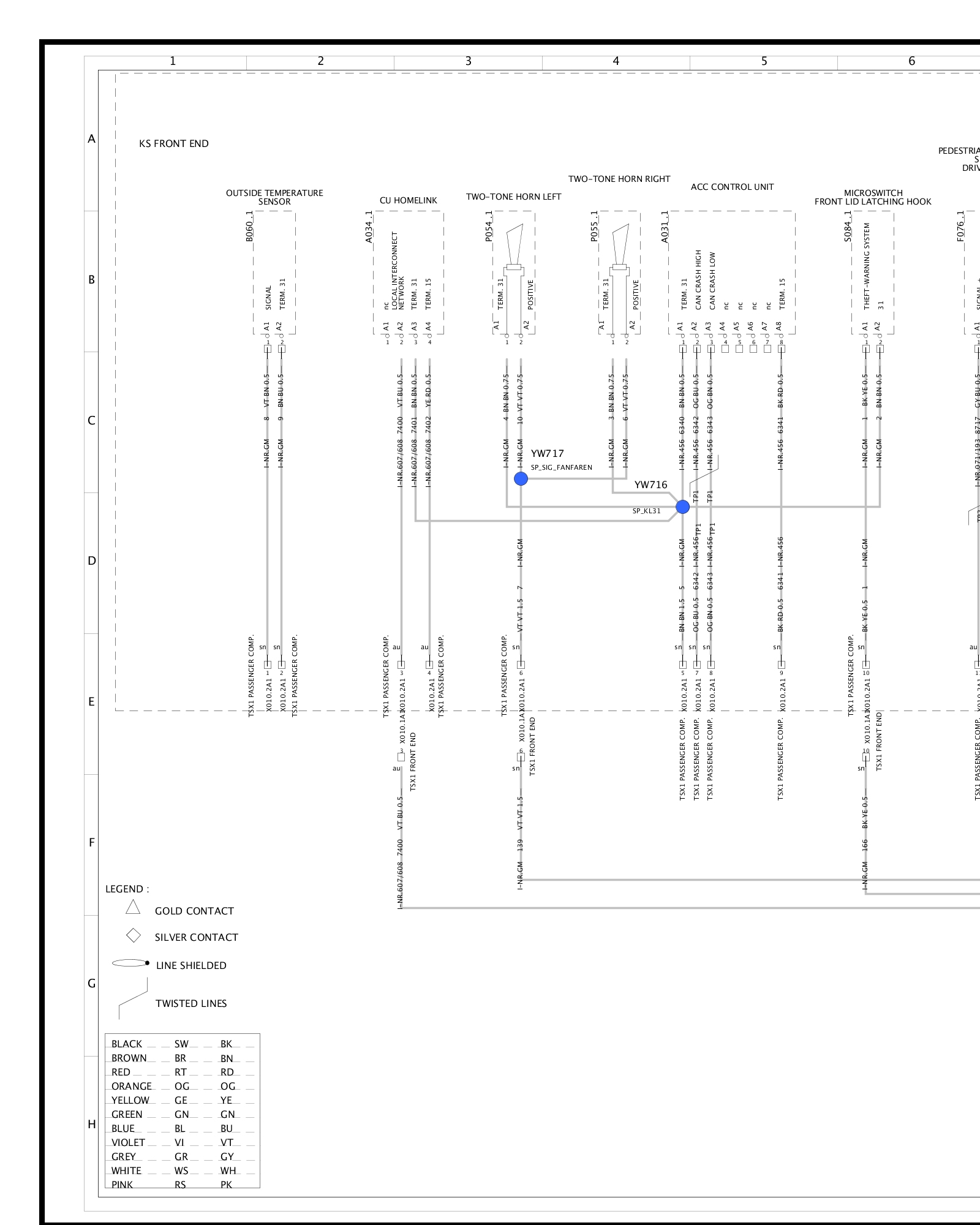

Front-End Electronics - Sheet 1 (Part 1):

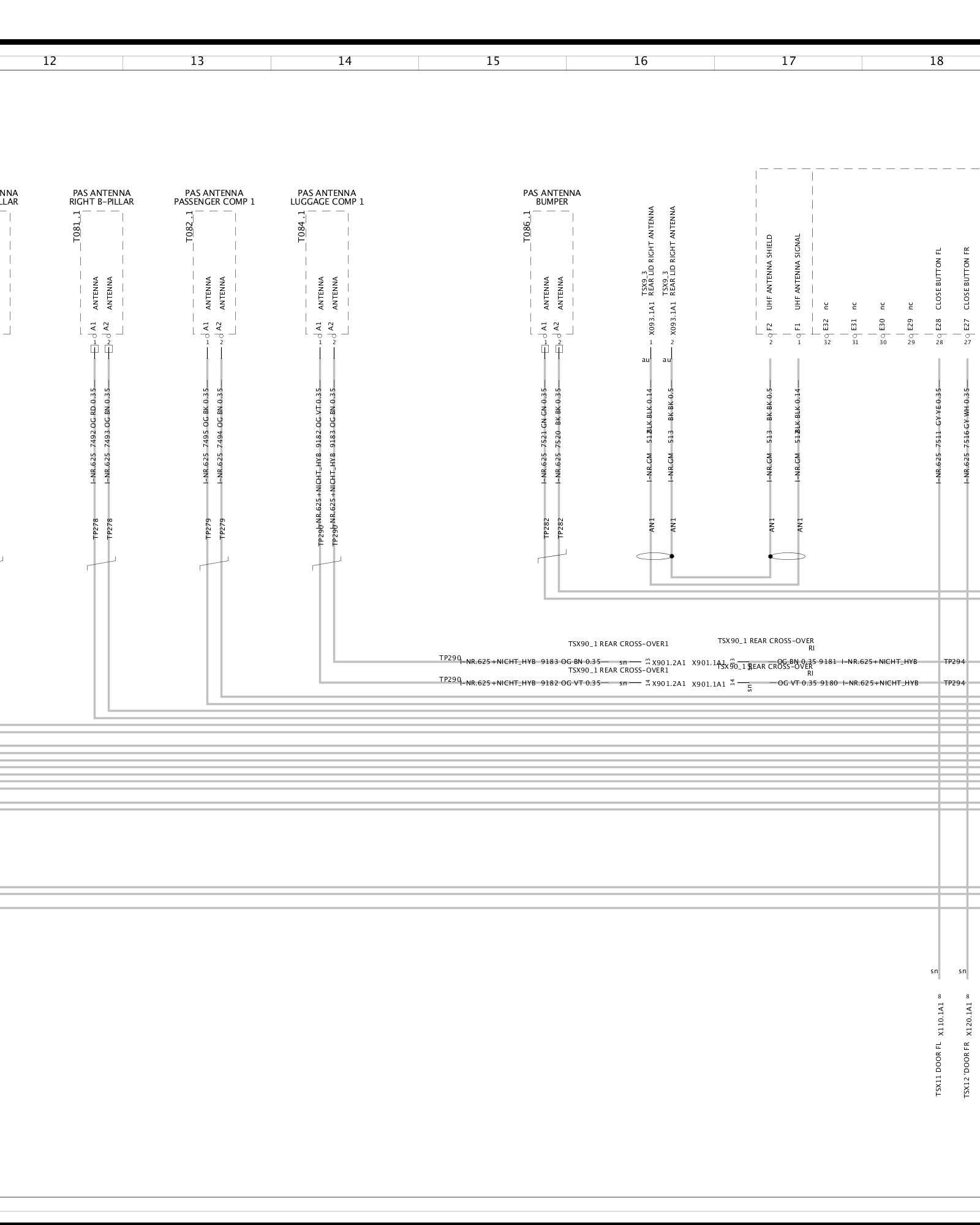

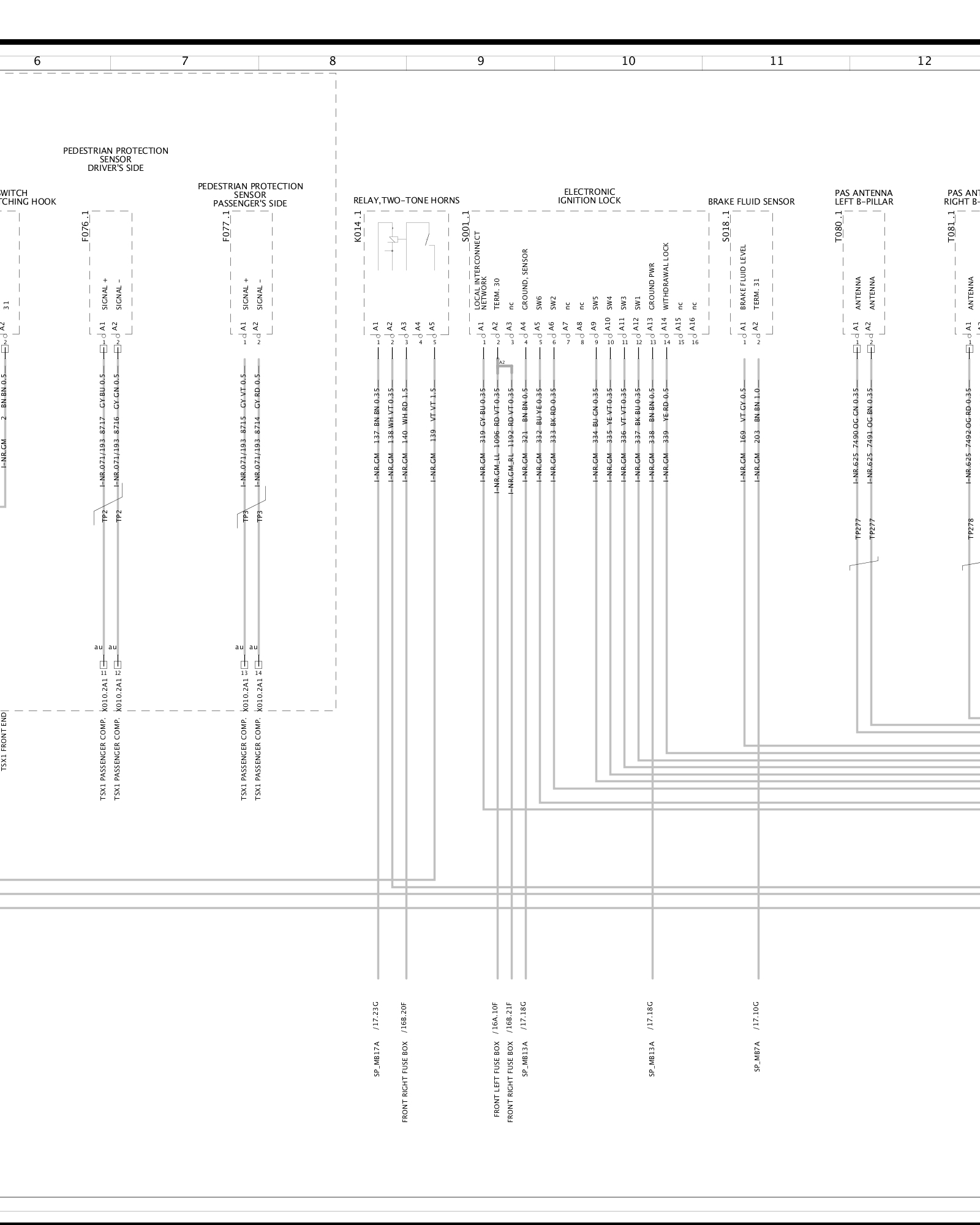

Front-End Electronics - Sheet 1 (Part 2):

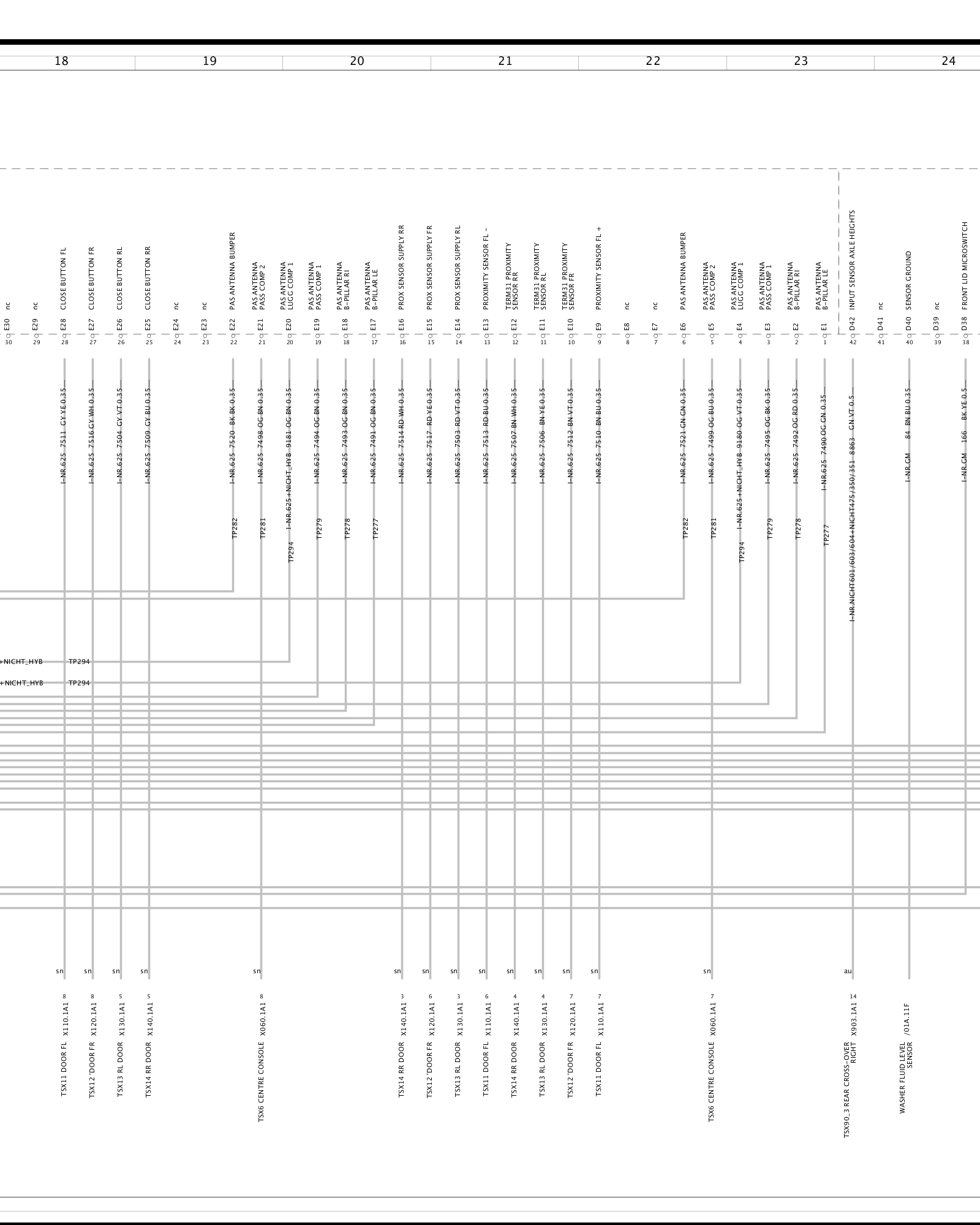

Front-End Electronics - Sheet 1 (Part 3):

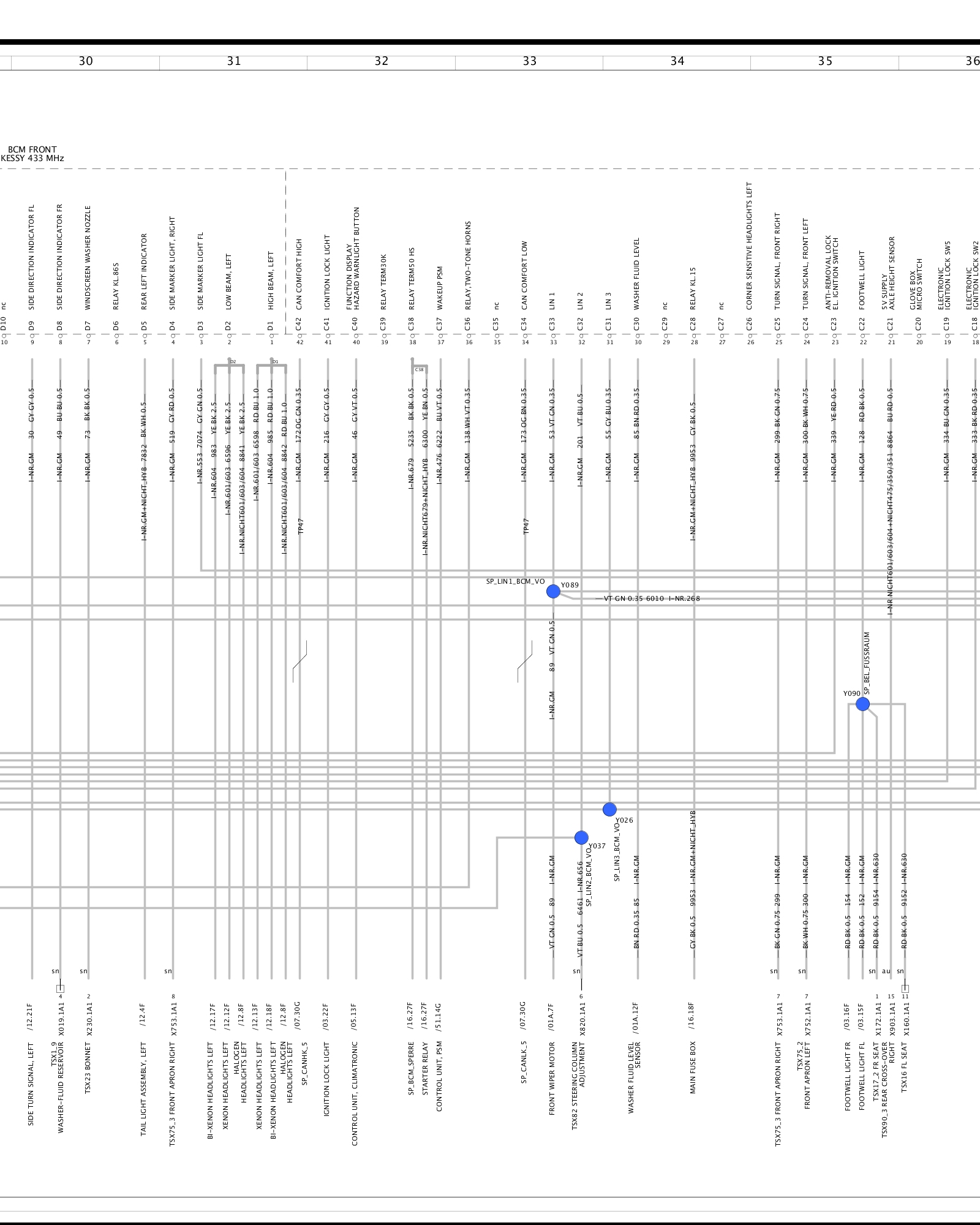

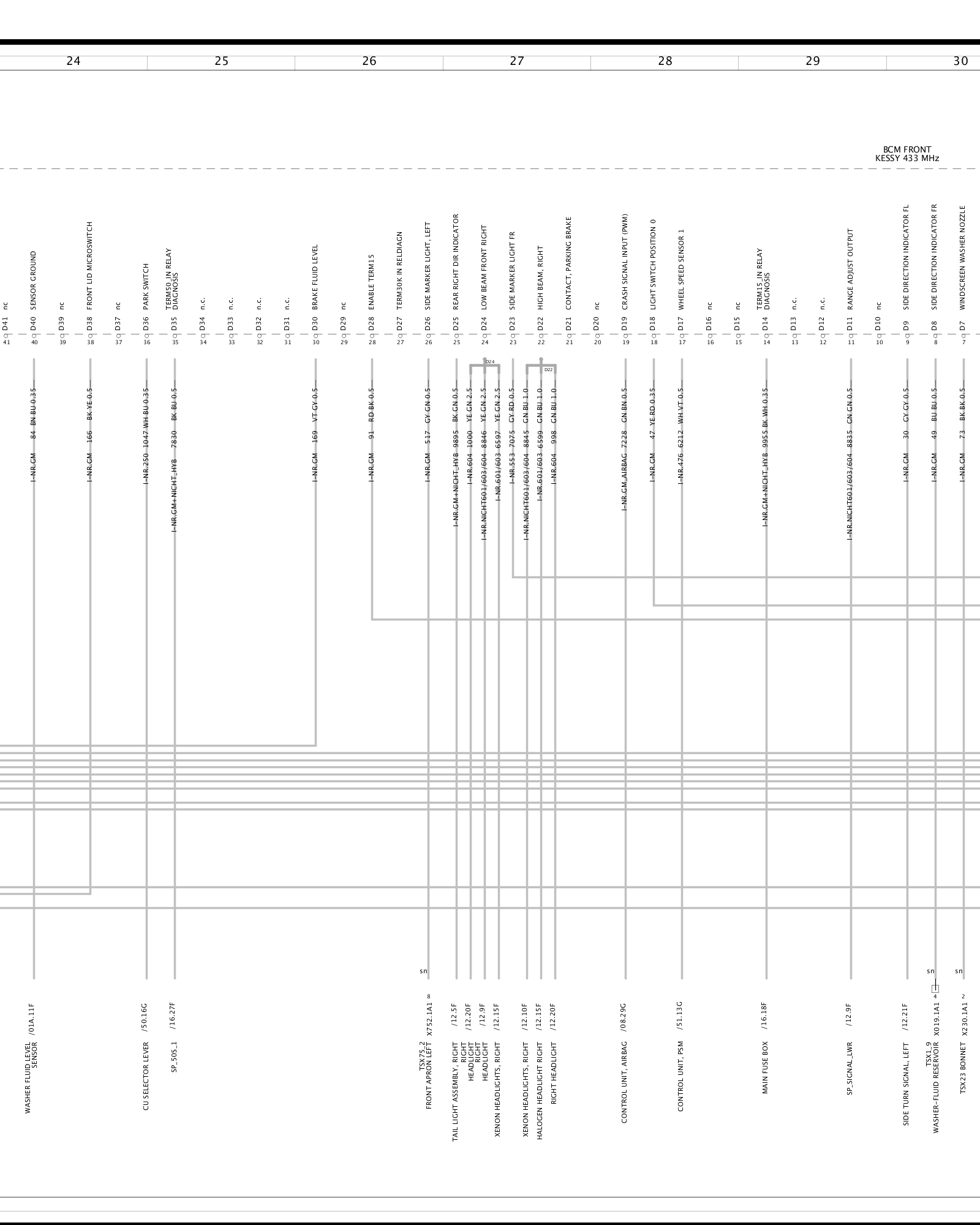

Front-End Electronics - Sheet 1 (Part 4):

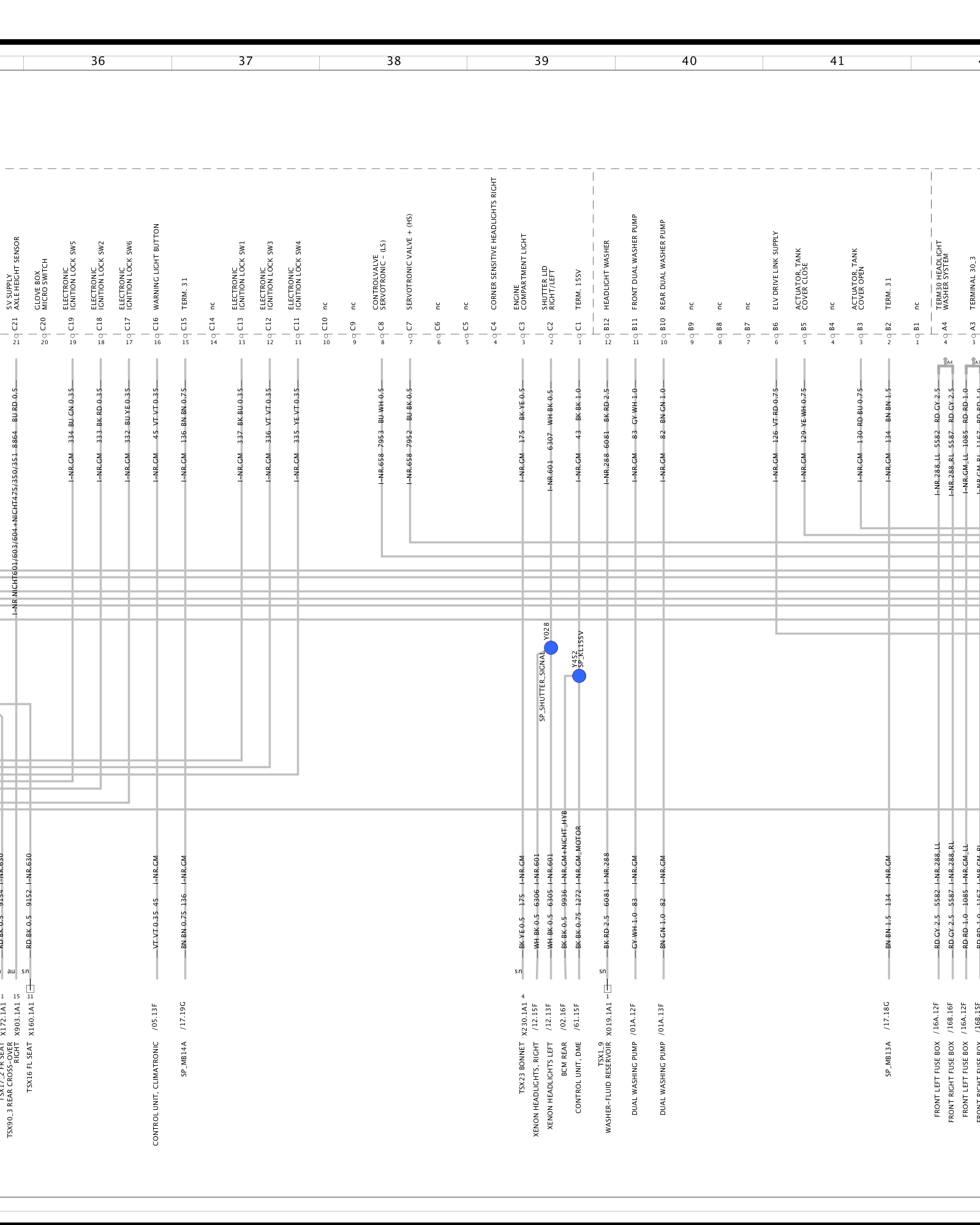

Front-End Electronics - Sheet 1 (Part 5):

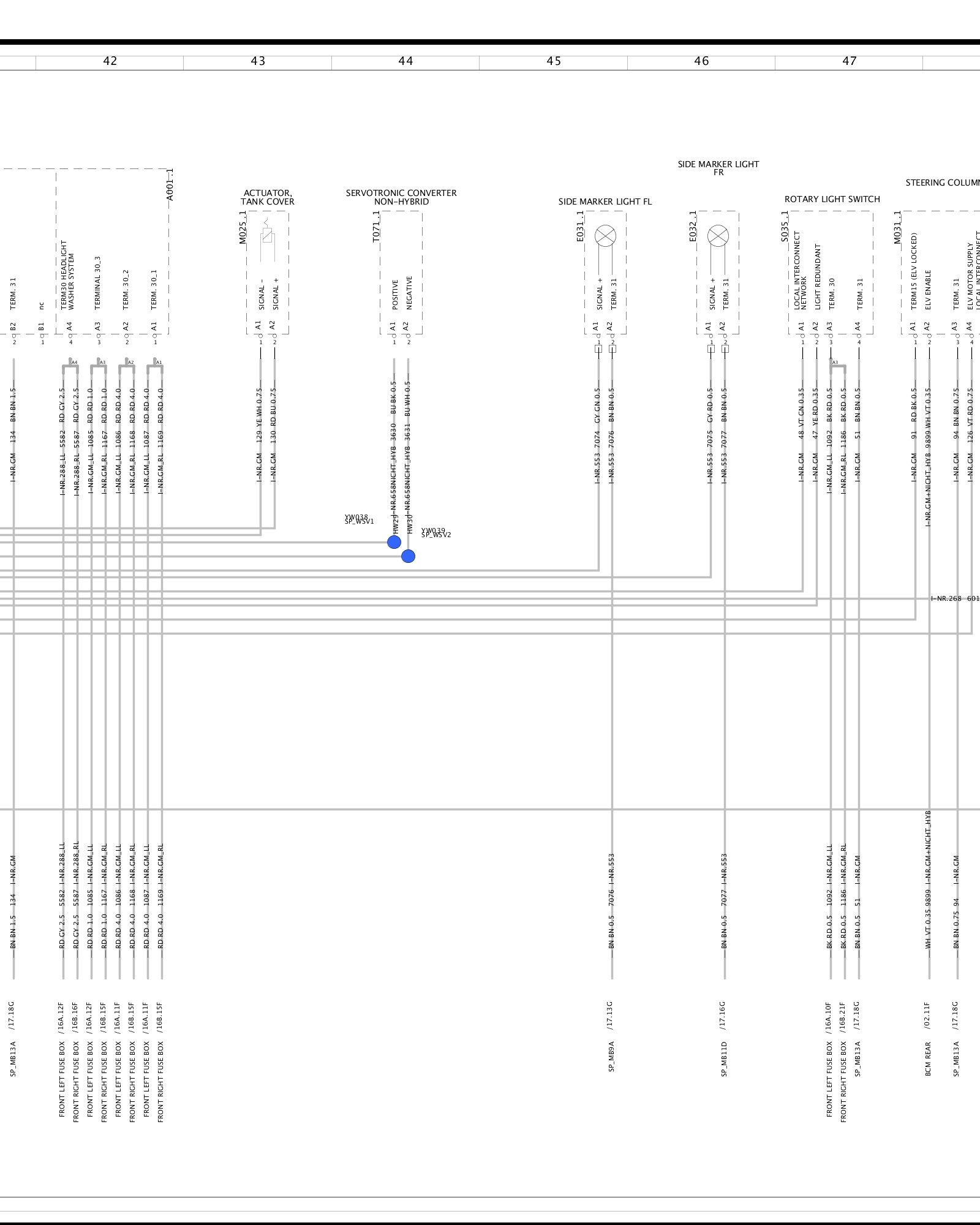

Front-End Electronics - Sheet 1 (Part 6):

Front-End Electronics - Sheet 1 (Part 7):

Front-End Electronics - Sheet 1 (Part 8):

Front-End Electronics - Sheet 1 (Part 9):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
