Tire Pressure Monitoring - Sheet 36



Tire Pressure Monitoring - Sheet 36

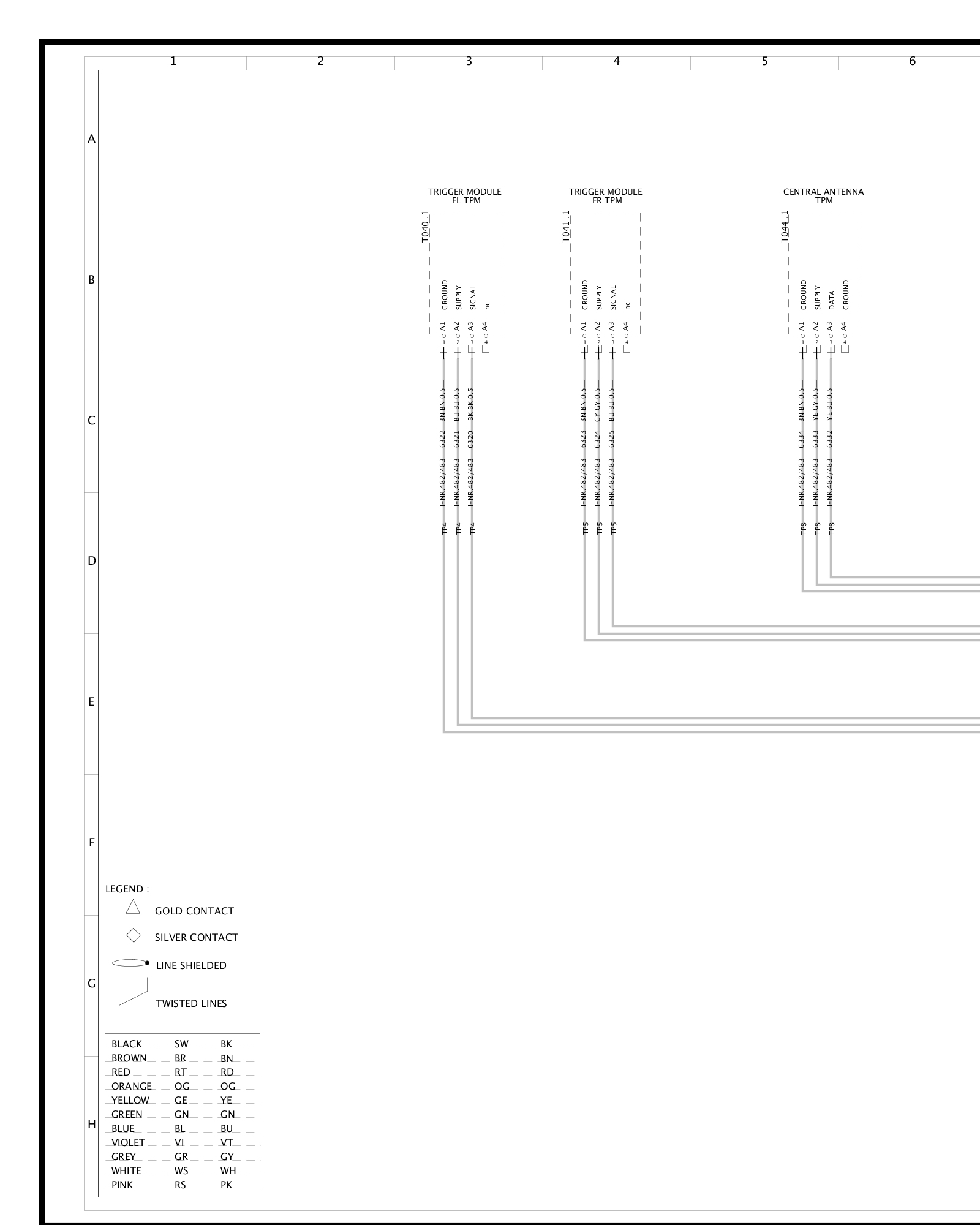

Tire Pressure Monitoring - Sheet 36 (Part 1):

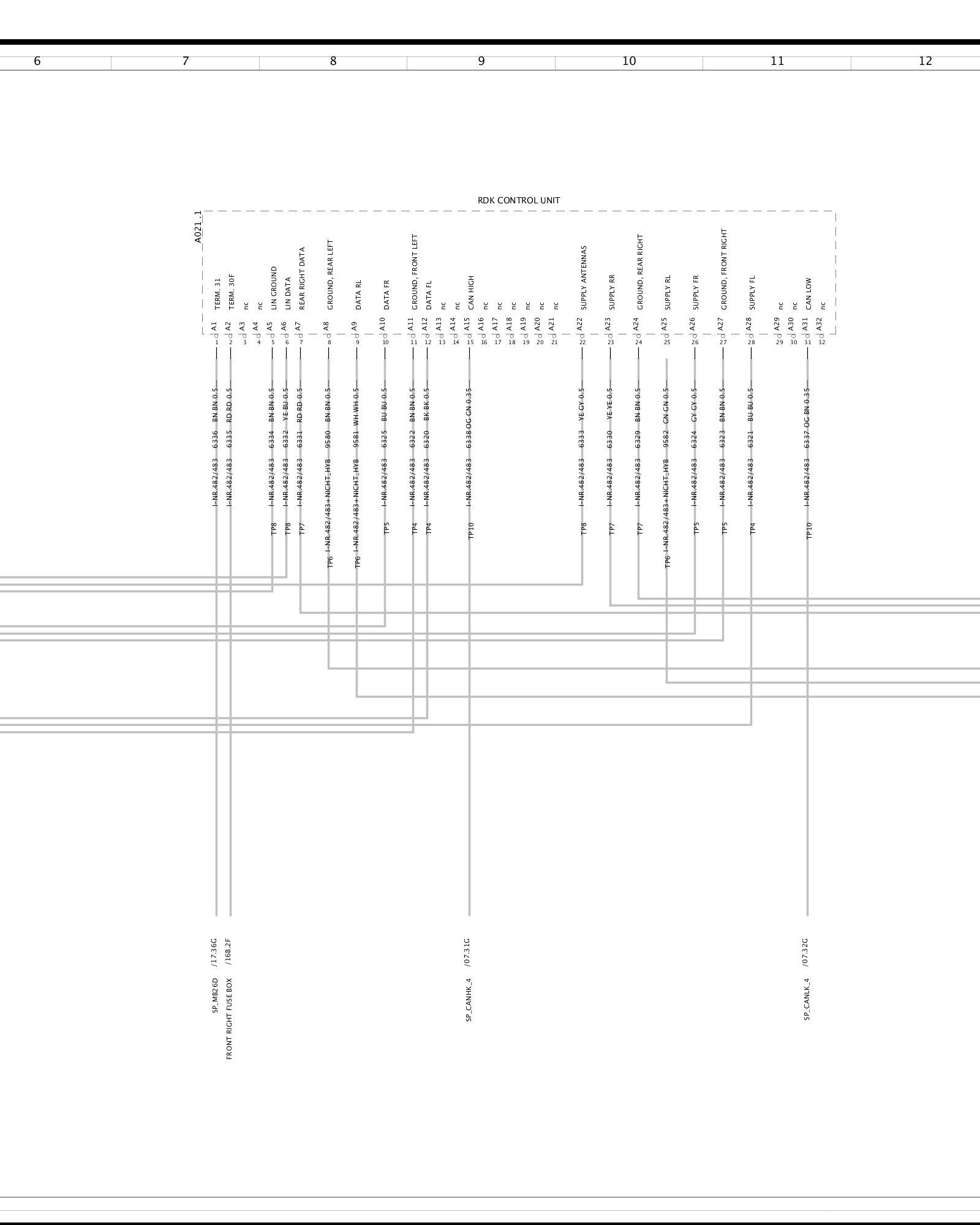

Tire Pressure Monitoring - Sheet 36 (Part 2):

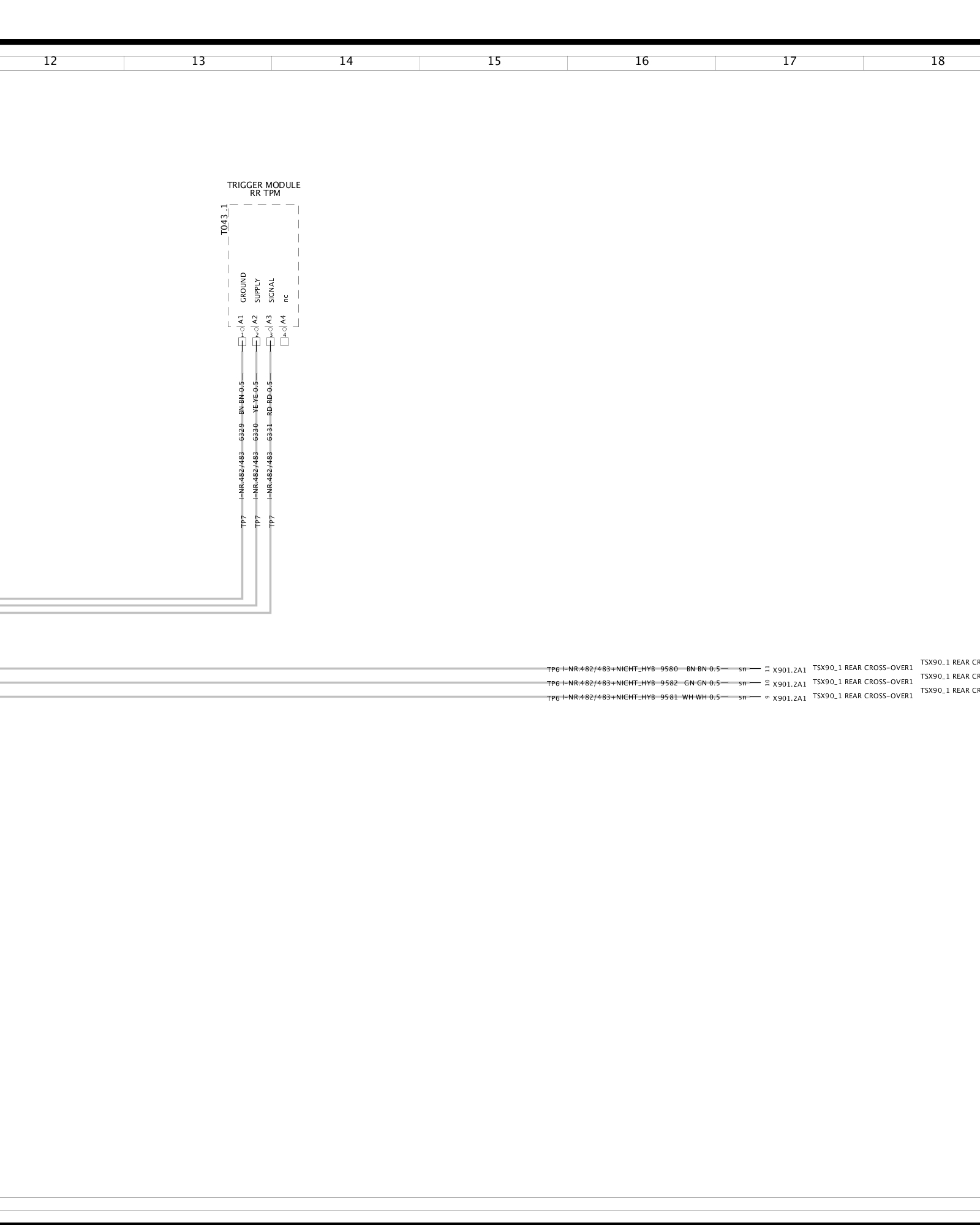

Tire Pressure Monitoring - Sheet 36 (Part 3):

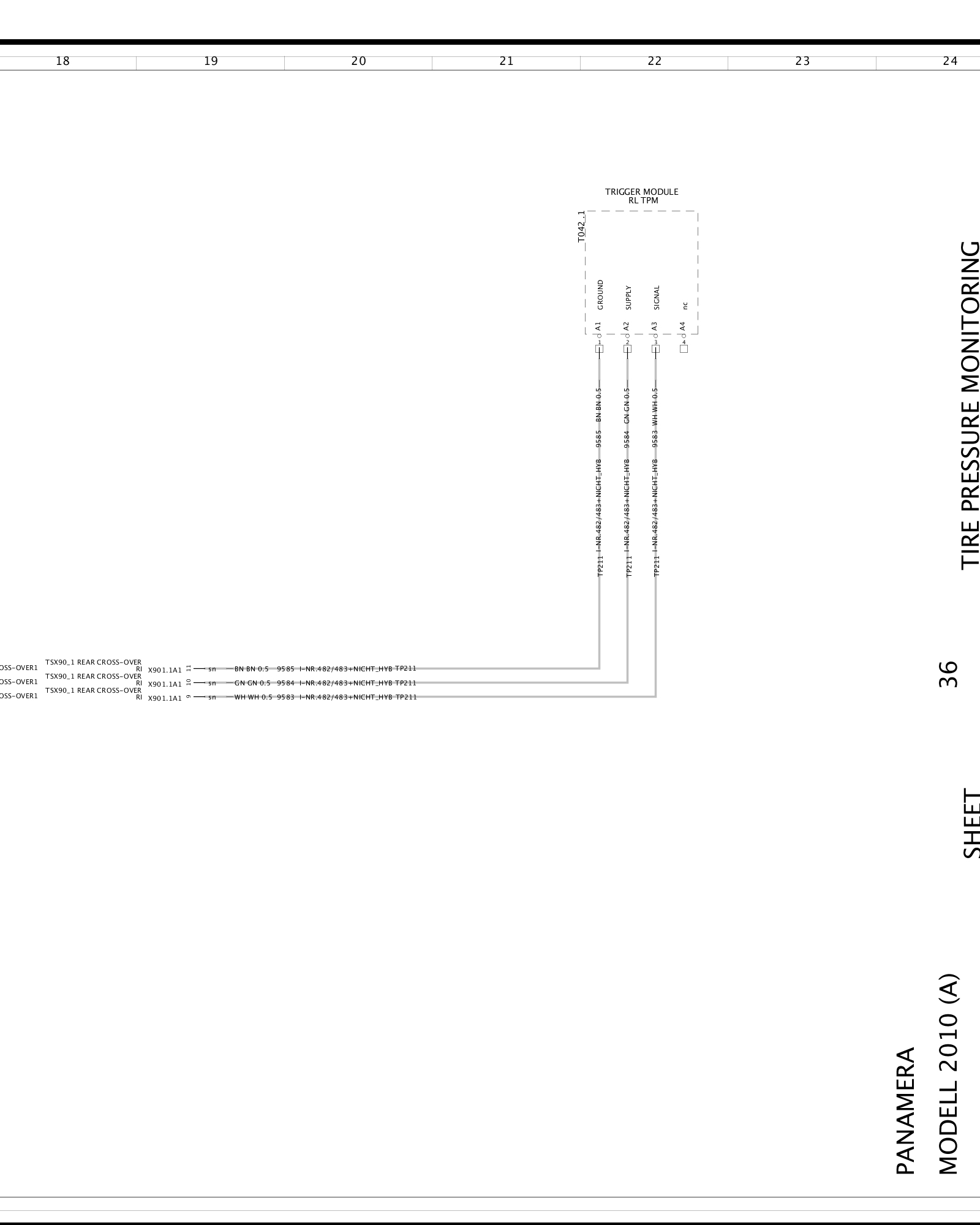

Tire Pressure Monitoring - Sheet 36 (Part 4):
