Removing and Installing Air Cleaner Housing

Removing And Installing Air Cleaner Housing

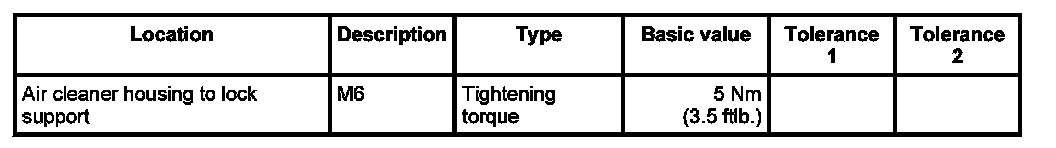

Technical values







Preliminary work

1. Remove front apron.
2. Remove air box for air cleaner.
3. Remove air guide for air cleaner.

Removing air cleaner housing

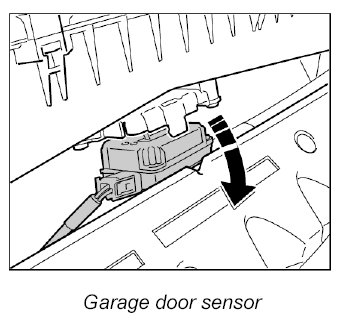

1. Unclip sensor for garage door opener if necessary. -> Garage door sensor

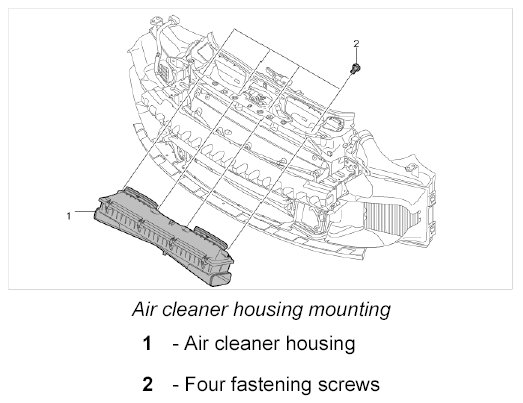

2. Remove four fastening screws on the air cleaner housing.

Installing air cleaner housing







1. Move air cleaner housing into installation position.
2. Screw in and tighten four fastening screws. -> Tightening torque: 5 Nm (3.5 ftlb.)







3. Clip in sensor for garage door opener if necessary. -> Garage door sensor

Subsequent work

1. Fit air box for air cleaner.
2. Fit air guide for air cleaner.
3. Fit front apron.
