Transmission Mount: Service and Repair

Disassembling and assembling transmission support





Preliminary work for disassembling and assembling transmission support

1. Remove cover for front underbody.

Disassembling transmission support





Overview of transmission support

1. Support transmission with transmission jack.
2. Unscrew fastening screws for securing transmission support to body -1-.





Transmission support to body

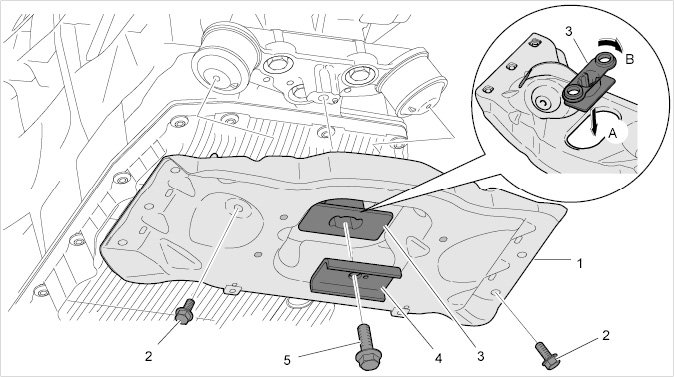

3. Remove transmission support -1-. To do this, unscrew fastening screws -2 and 5-.





Assembly of transmission support

4. Remove transmission bracket. To do this, unscrew fastening screws -1-.





Assembly of transmission bracket

Assembling transmission support





Overview of transmission support

1. Fit transmission bracket using fastening screws -1-. -> Tightening torque: 65 Nm (48 ftlb.)





Assembly of transmission bracket

2. Fit transmission support -1-. When doing so, make sure that the rubber stop -3- is inserted correctly.

Transmission support to bracket -2- -> Tightening torque: 23 Nm (17 ftlb.)

Transmission support to bracket -5- -> Tightening torque: 120 Nm (89 ftlb.)





Assembly of transmission support

3. Screw in fastening screws for securing transmission support to body -1-. -> Tightening torque: 65 Nm (48 ftlb.)





Transmission support to body

Subsequent work for disassembling and assembling transmission support

Subsequent work for transmission support

1. Install trim panel for front underbody.
