913819 Removing and installing SDARS antenna

WM 913819 Removing and installing SDARS antenna

Technical values





Preliminary work

1. Remove left and right C-pillar trim panel.-> 706819 Removing and installing C-pillar trim panel - section on "Removing" 706819 Removing and installing C-pillar trim
2. Remove left and right rear air vent at door.-> 855919 Removing and installing air vent at door - section on "Removing" 855919 Removing and Installing Air Vent at Door
3. Remove left and right rear grab handle.-> 683719 Removing and installing rear grab handle - section on "Removing" 683719 Removing and Installing Rear Handle
4. Detach headliner.-> 708419 Removing and installing headliner - section on "Removing" 708419 Removing and installing roof trim panel

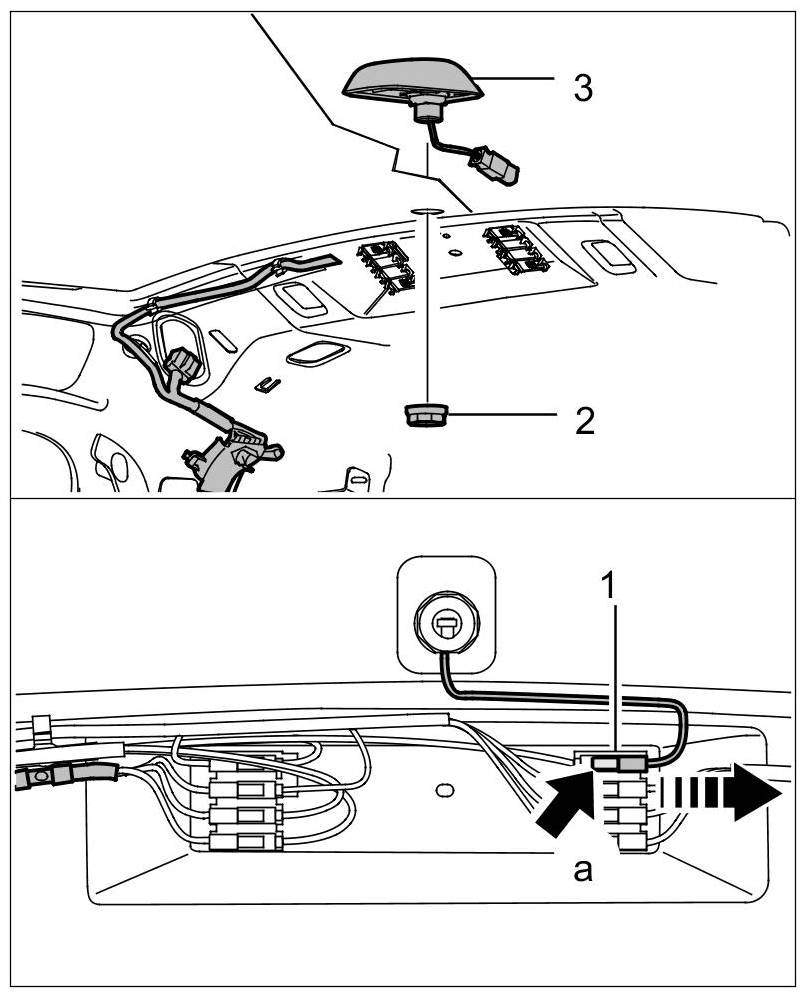

Removing SDARS antenna

1. Release and pull off electric plug connection -1- ( -a- ).





Removing SDARS antenna

2. Loosen fastening nut -2- and remove SDARS antenna -3-.

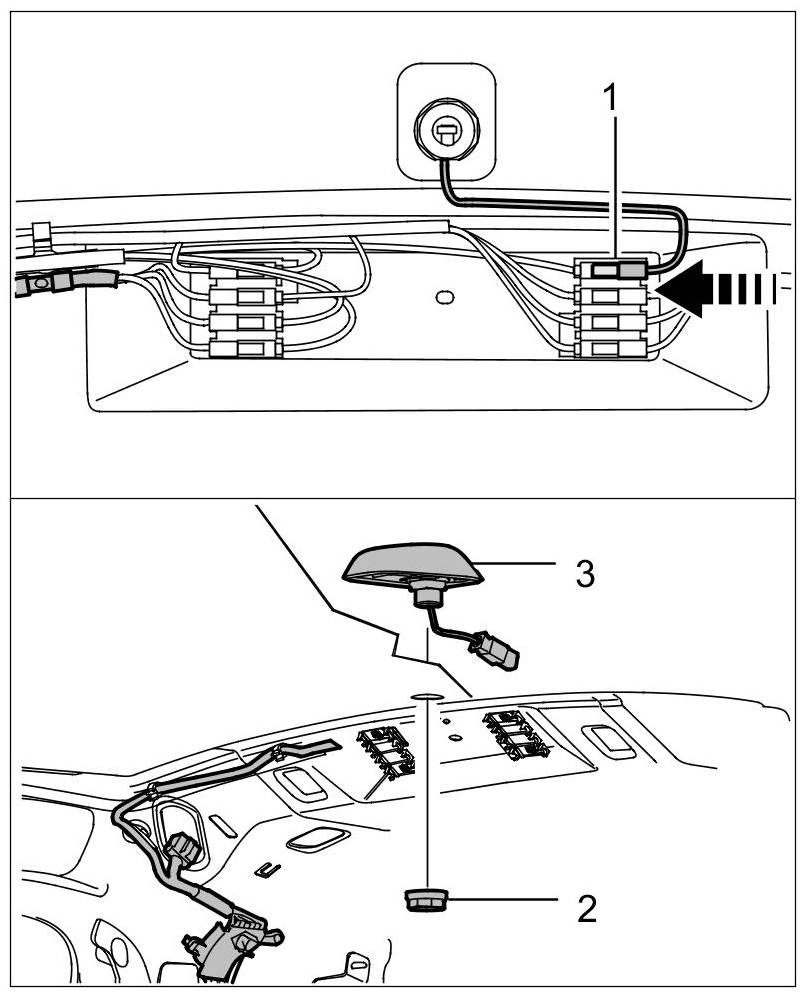

Installing SDARS antenna

1. Place SDARS antenna -3- in position and screw down with fastening nut -2-. => Tightening torque: 6 Nm (4.5 ftlb.)+/-0.9 Nm (+/-0.5 ftlb.)





Installing SDARS antenna

2. Push in electric plug connection -1- until the connector engages securely.

Subsequent work

1. Secure headliner.-> 708419 Removing and installing headliner - section on "Installing" 708419 Removing and installing roof trim panel
2. Install left and right rear grab handle.-> 683719 Removing and installing rear grab handle - section on "Installing" 683719 Removing and Installing Rear Handle
3. Install left and right rear air vent at door.-> 855919 Removing and installing air vent at door - section on "Installing" 855919 Removing and Installing Air Vent at Door
4. Install left and right C-pillar trim panel.-> 706819 Removing and installing C-pillar trim panel - section on "Installing" 706819 Removing and installing C-pillar trim
