Security Lamp/Indicator: Service and Repair

WM 968919 Removing and installing light-emitting diode for alarm system

Preliminary work

1. Remove front door panel. -> 705919 Removing and installing front door panel - section on "Removing" 705919 Removing and installing front door panel

Removing light-emitting diode for alarm system





Overview of light-emitting diode for alarm system

1. Turn light-emitting diode and holder to release it.





Removing light-emitting diode

2. Remove light-emitting diode from the bracket by pulling it downwards.
3. Disconnect plug connection.

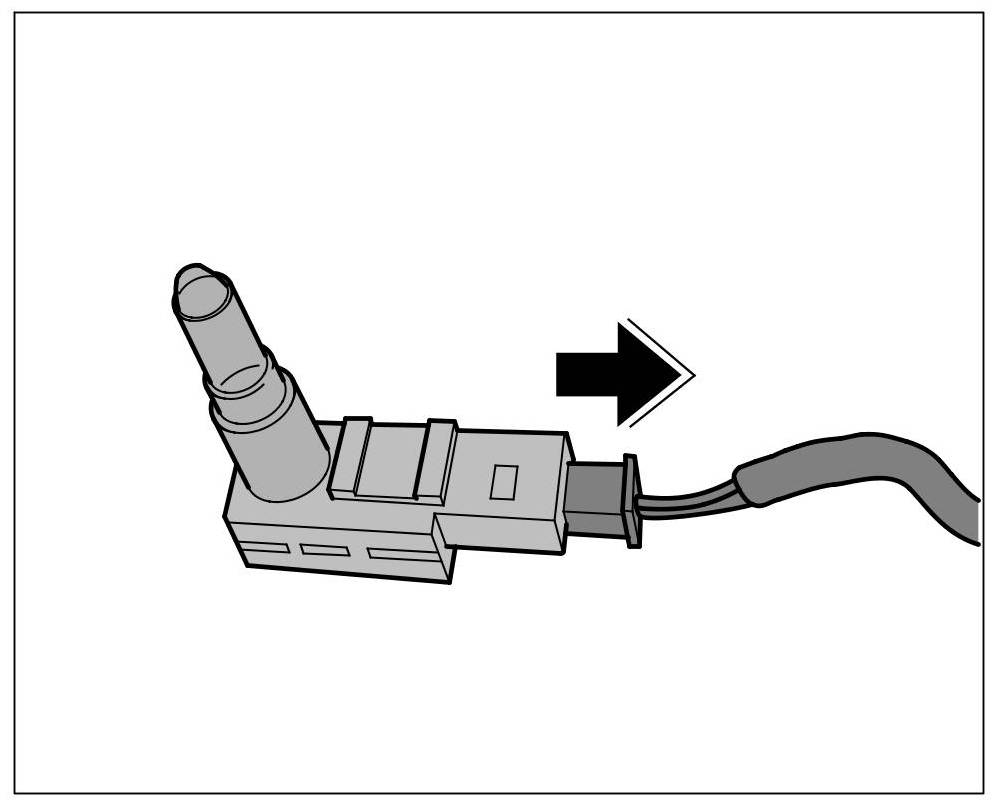

Disconnecting plug connection

Installing light-emitting diode for alarm system

1. Connect plug connection.

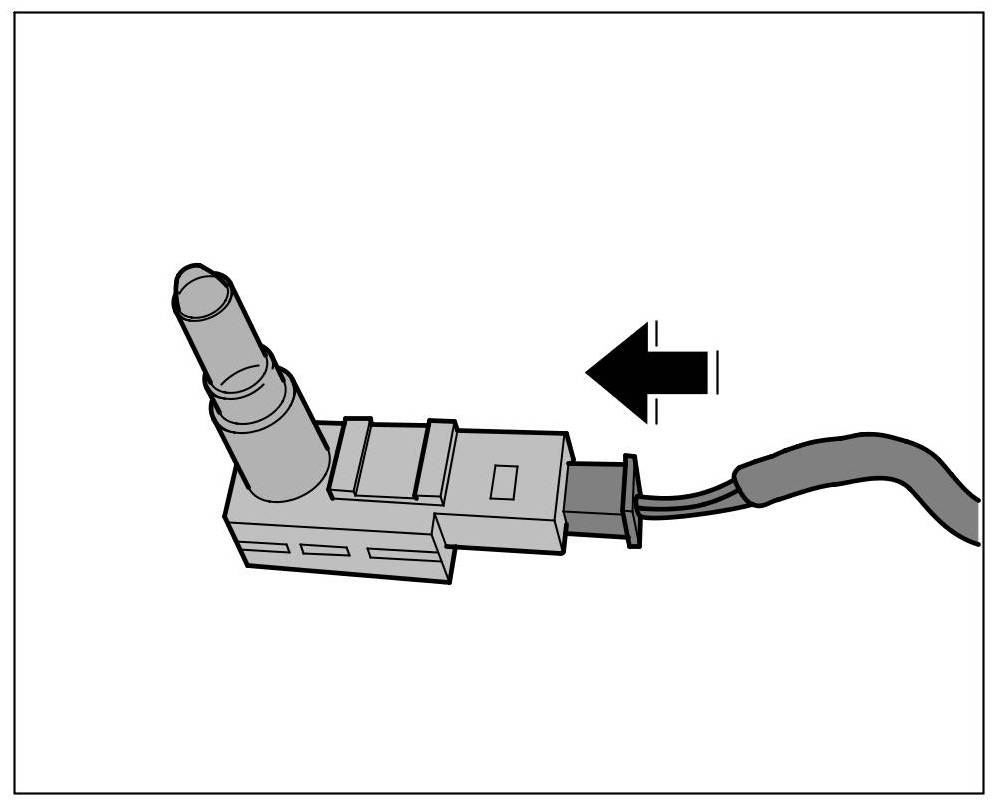

Connecting plug connection

2. Check that the plug connection is seated securely.
3. Guide light-emitting diode and holder into the bracket from underneath.
4. Turn light-emitting diode to lock it.

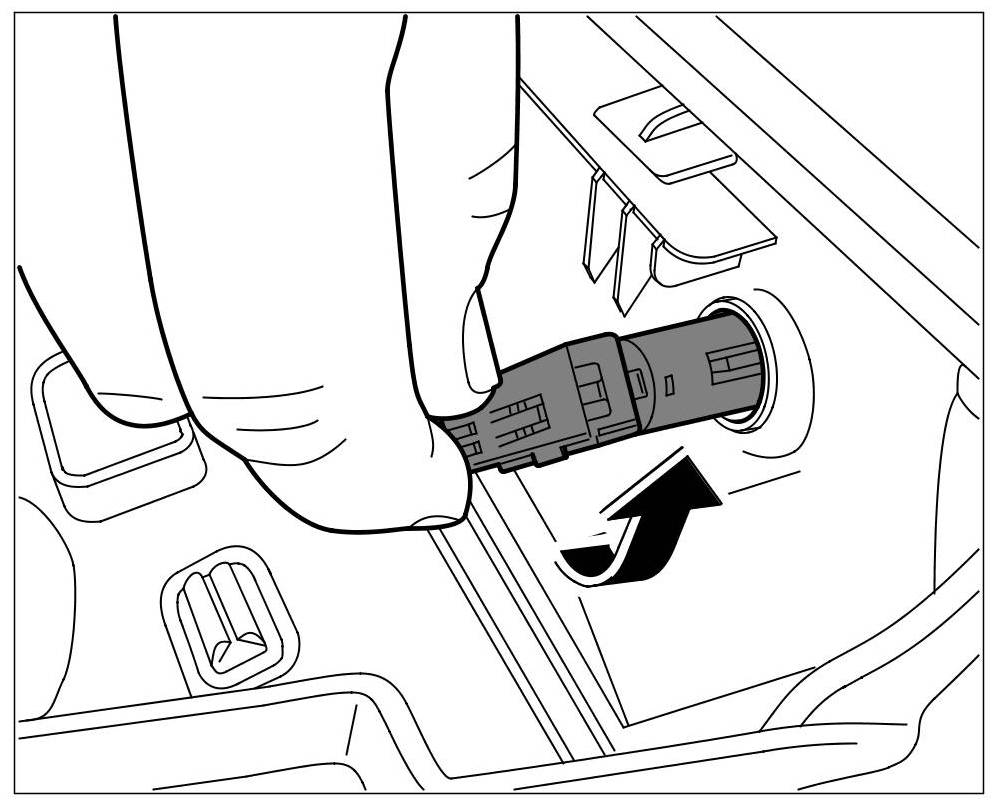

Installing light-emitting diode

Subsequent work

1. Install front door panel. -> 705919 Removing and installing front door panel - section on "Installing" 705919 Removing and installing front door panel
