701819 Removing and installing dashboard
WM 701819 Removing and installing dashboard

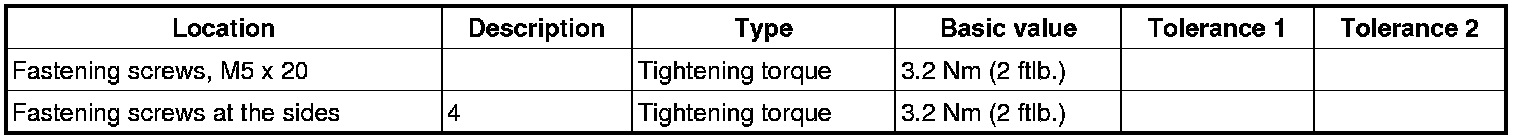

Technical values
Preliminary work
1. Remove ignition starter switch. -> 280419 Removing and installing ignition starter switch - section on "Removing" Service and Repair
2. Remove glove box. -> 681519 Removing and installing glove box - section on "Removing" 681519 Removing and installing glove box
3. Remove centre console. -> 681719 Removing and installing centre console - section on "Removing" 681719 Removing and installing centre console
4. Remove dashboard cover. -> 701619 Removing and installing dashboard cover - section on "Removing" Service and Repair
5. Remove cover under dashboard. -> 702219 Removing and installing cover under dashboard - section on "Removing" 702219 Removing and installing cover under dashboard
6. Remove front side-section trim panel. -> 702419 Removing and installing front side-section trim panel - section on "Removing" 702419 Removing and installing front side section trim
7. Remove A-pillar trim. -> 705719 Removing and installing A-pillar trim panel - section on "Removing" 705719 Removing and installing A-pillar trim
8. Remove air vents for door windows. -> 855919 Removing and installing air vent for door window - section on "Removing" 855919 Removing and Installing Air Vent at Door
9. Remove instrument cluster. -> 902519 Removing and installing instrument cluster - section on "Removing" 902519 Removing and installing instrument cluster
10. Remove main headlight switch. -> 940519 Removing and installing main headlight switch - section on "Removing" Service and Repair
11. Remove steering column switch. -> 945019 Removing and installing steering column switch - section on "Removing" Service and Repair
12. Vehicles with car radio: Remove car radio. -> 912419 Removing and installing car radio - section on "Removing" 912419 Removing and installing car radio
13. Vehicles with PCM display and operator control unit: Remove PCM display and operator control unit. -> 911019 Removing and installing PCM display and operator control unit - section on "Removing" 911019 Removing and installing PCM display and operator control unit
Safety instructions for passenger airbag
WARNING
Incorrect handling of airbag units
- Triggering of airbag unit
- System faults can occur
-> Switch off ignition and remove ignition key.
-> A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.
-> Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.
-> Wait 1 minute after disconnecting the battery.
-> Only pull off connector on the triggering unit after the waiting time has elapsed.
-> Make sure that no foreign objects are located in front of the airbag unit during installation.
-> Replace damaged parts during removal.
-> Always position the airbag unit in such a way that the airbag opening is facing upwards.
-> If removed for an extended period, the airbag unit must be stored in a safe place.
-> Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.
-> Do not expose airbag units to temperatures above 90°.
-> Do not remove the short-circuit spring on the plug-in contacts.
-> Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.
-> Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.
WARNING
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
-> Always use new fastening screws and nuts following removal.
-> Observe specified tightening torques.
-> Carry out a visual inspection of all re-used parts.
Removing dashboard

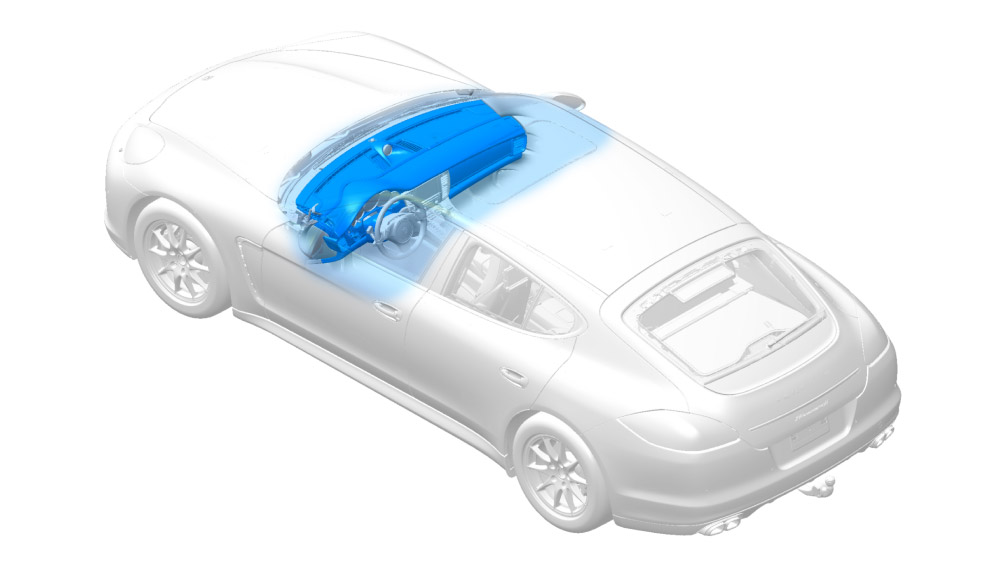

Installation position of dashboard
1. Move the seats all the way back.
2. Loosen the fuse boxes at the front left and right. -> 978409 Loosening and securing fuse box - section on "Loosening" 978409 Loosening and securing fuse box
3. Vehicles with Kessy antenna: Remove support for Kessy antenna and release and unplug the electric plug connection. -> 966719 Removing and installing antenna for Kessy - section on "Removing" Service and Repair
4. Unplug electric plug connection -1- for the temperature sensor.
Unplugging electric plug connection
5. Release and unplug electric plug connections for the passenger airbag unit.
Unplugging electric plug connection for passenger airbag unit
6. Cut the tie-wraps on the line for the passenger airbag unit.
7. Cut the tie-wraps on the two wire harnesses going to the centre console at the dashboard.

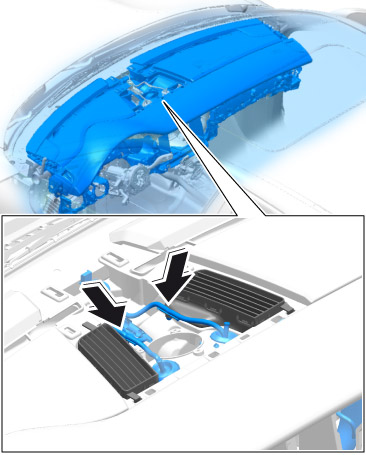

8. Unclip the line brackets at the ventilation grilles.
Unclipping line bracket at the ventilation grille

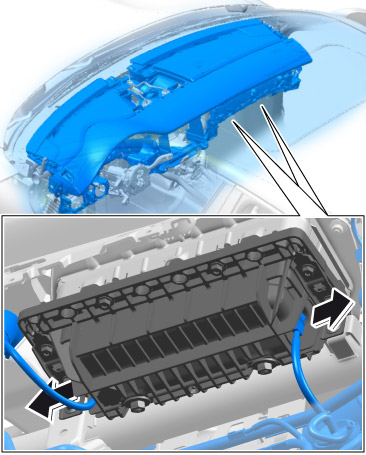

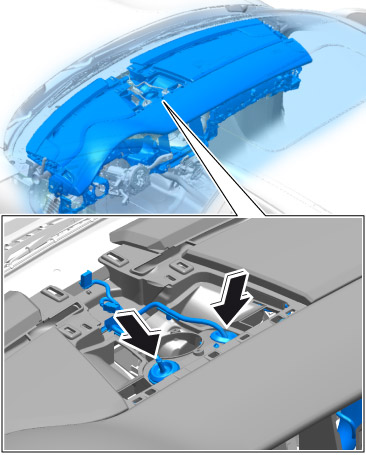

9. Pull the wire harnesses and the sleeves inwards through the dashboard.
Pulling sleeve through dashboard
10. Pull the electric line for the loudspeakers at the left and right out of the dashboard.
Pulling electric line for loudspeakers through the dashboard

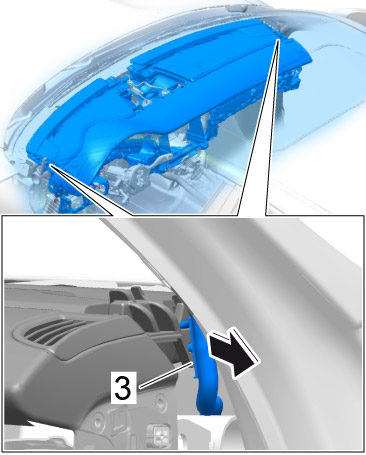

11. Unclip the line bracket -3- for the electric line from the dashboard at the left and right A-pillar.
Unclipping line bracket
12. Unscrew the three fastening screws -4- at the sides.
Unscrewing fastening screws at the sides

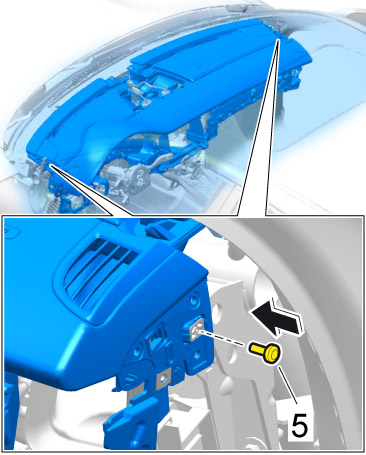

13. Unscrew the hexagon socket screw -5-.
Unscrewing hexagon socket screw

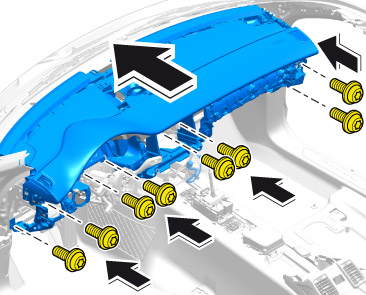

14. Unscrew the fastening screws for the dashboard.
Unscrewing fastening screws
15. Carefully pull the dashboard inwards out of the holders and remove it.
Installing dashboard
1. Carefully guide the dashboard into place and position it.
2. Slide the dashboard into the retaining clips. Ensure that no wires are clamped while inserting it.
3. Pull the electric lines and rubber sleeves outwards through the dashboard.
Pulling rubber sleeves through dashboard
4. Secure the rubber sleeves on the dashboard.

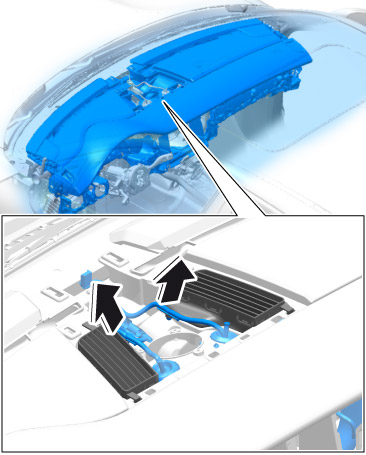

5. Clip in the line brackets at the ventilation grilles.
Clipping in line bracket at ventilation grille

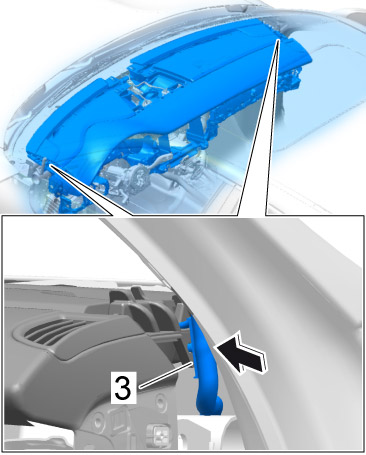

6. Clip the line bracket -3- for the electric line into the dashboard at the left and right A-pillar.
Clipping line bracket into A-pillar

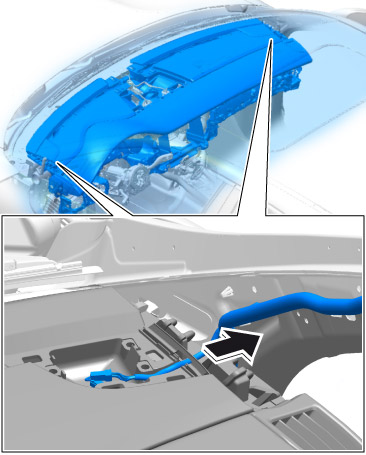

7. Pull the electric line for the loudspeakers at the left and right into the dashboard.
Pulling electric line for loudspeakers into the dashboard

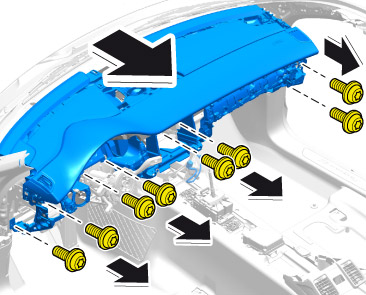

8. Screw in fastening screws for the dashboard.=> Tightening torque: 3.2 Nm (2 ftlb.)
Tightening fastening screws

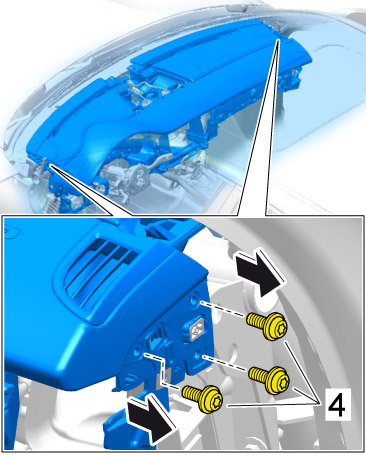

9. Screw in the three fastening screws -4- at the left and right side.
=> Tightening torque: 3.2 Nm (2 ftlb.)
Tightening fastening screws at the sides

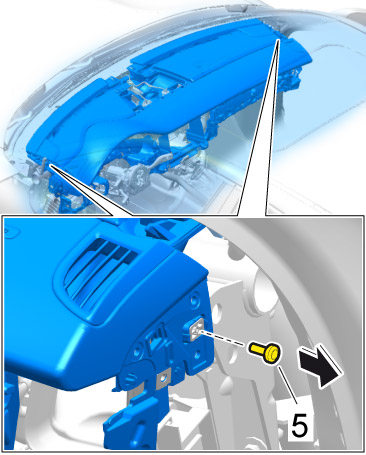

10. Screw in the hexagon socket screw -5- at the sides of the dashboard.
Screwing in hexagon socket screw
11. Replace and tighten the tie-wraps on the line for the passenger airbag unit.
12. Replace the tie-wraps on the two wire harnesses going to the centre console, join them at the dashboard and tighten them.
13. Plug in electric plug connections for the passenger airbag unit.
Plugging in electric plug connection for passenger airbag unit

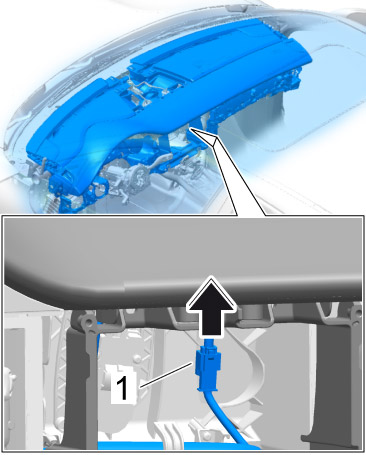

14. Plug in electric plug connection -1- for the temperature sensor.
Plugging in electric plug connection for temperature sensor
15. Vehicles with Kessy antenna: Plug in electric plug connection and install the support for the Kessy antenna. -> 966719 Removing and installing antenna for Kessy - section on "Installing" Service and Repair
16. Secure the fuse boxes at the front left and right. -> 978409 Loosening and securing fuse box - section on "Securing" 978409 Loosening and securing fuse box
17. Move the front seats into position.
Subsequent work
1. Install ignition starter switch. -> 280419 Removing and installing ignition starter switch - section on "Installing" Service and Repair
2. Install glove box. -> 681519 Removing and installing glove box - section on "Installing" 681519 Removing and installing glove box
3. Install centre console. -> 681719 Removing and installing centre console - section on "Installing" 681719 Removing and installing centre console
4. Install dashboard cover. -> 701619 Removing and installing dashboard cover - section on "Installing" Service and Repair
5. Install cover under dashboard. -> 702219 Removing and installing cover under dashboard - section on "Installing" 702219 Removing and installing cover under dashboard
6. Install front side-section trim panel. -> 702419 Removing and installing front side-section trim panel - section on "Installing" 702419 Removing and installing front side section trim
7. Install A-pillar trim. -> 705719 Removing and installing A-pillar trim panel - section on "Installing" 705719 Removing and installing A-pillar trim
8. Install air vents for door windows. -> 855919 Removing and installing air vent for door window - section on "Installing" 855919 Removing and Installing Air Vent at Door
9. Install instrument cluster. -> 902519 Removing and installing instrument cluster - section on "Installing" 902519 Removing and installing instrument cluster
10. Install main headlight switch. -> 940519 Removing and installing main headlight switch - section on "Installing" Service and Repair
11. Install steering column switch. -> 945019 Removing and installing steering column switch - section on "Installing" Service and Repair
12. Vehicles with car radio: Install car radio. -> 912419 Removing and installing car radio - section on "Installing" 912419 Removing and installing car radio
13. Vehicles with PCM display and operator control unit: Install display and operator control unit. -> 911019 Removing and installing PCM display and operator control unit - section on "Installing" 911019 Removing and installing PCM display and operator control unit
