Removing and Installing Bottom Rubber Seal For Rear Door

Removing And Installing Bottom Rubber Seal For Rear Door

Removing bottom rubber seal for rear door












1. Take seal out of the guide -A- and remove downwards -B- .

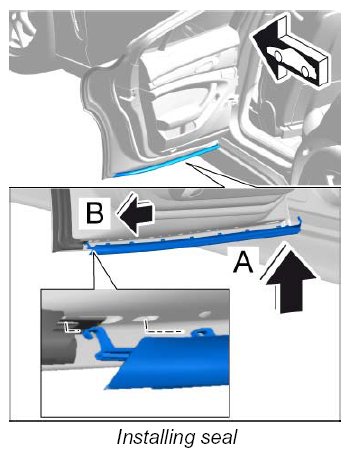

Installing bottom rubber seal for rear door







1. Fit seal's retaining lugs in cut-out -A- and insert -B- .
2. Check that seal is seated securely.
