Valve Cover Gasket: Service and Repair

WM 158055 Replacing seal for cylinder head cover

Replacing seal for cylinder head cover

Information

The tightening specifications for the basic engine are stored centrally. -> 1001IN Tightening torques, tightening sequences, assembly overviews [1][2]Specifications. Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

1. For detailed steps, see:
-> 158219 Removing and installing cylinder head cover Service and Repair

Component overview of cylinder head cover seal =>

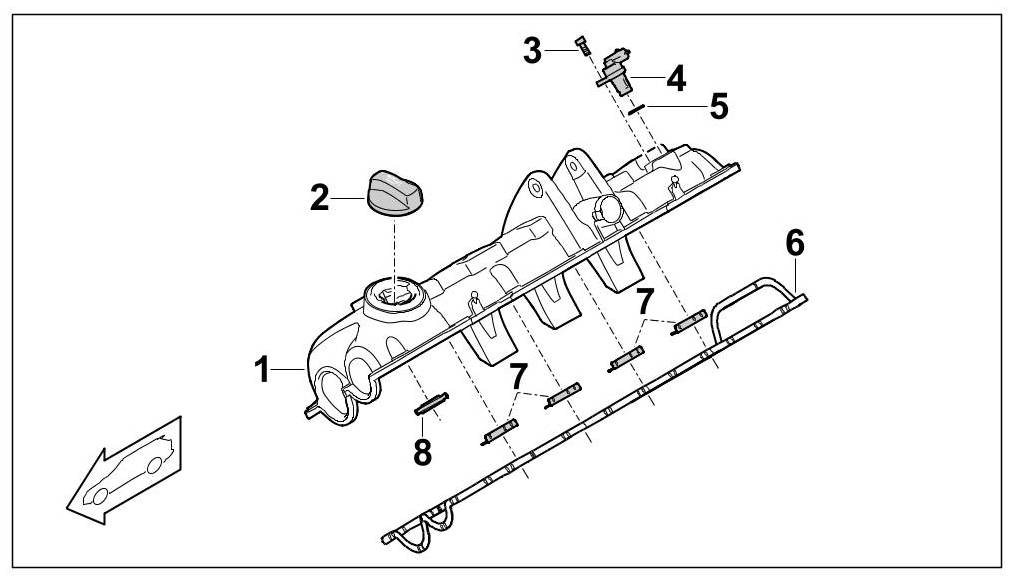

Cylinders 1 - 4

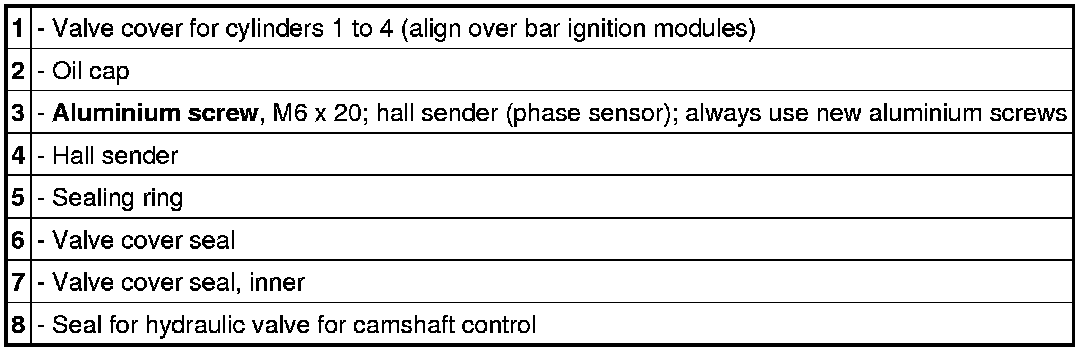

Valve cover for seals, cylinders 1 to 4

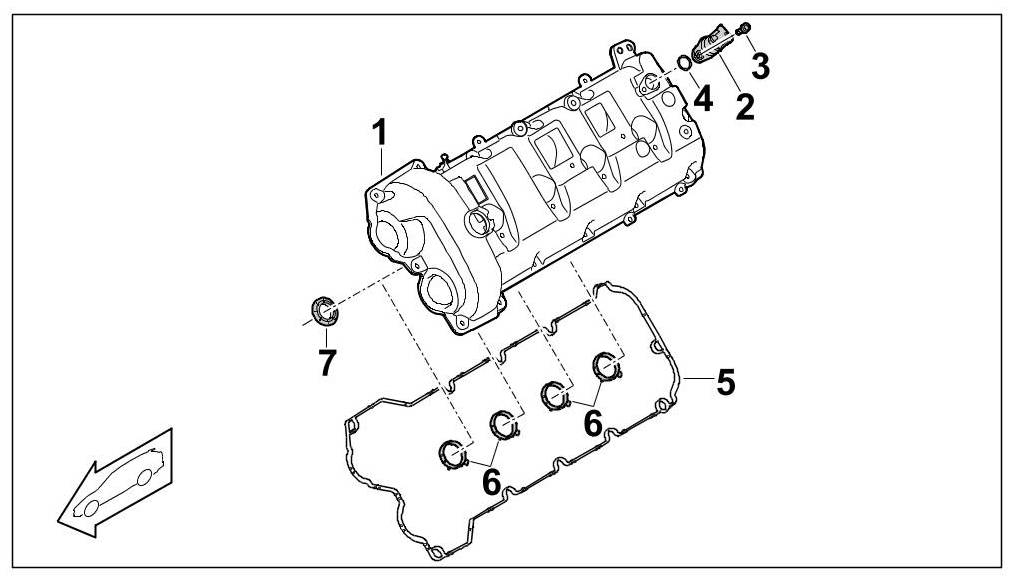

Cylinders 5 - 8

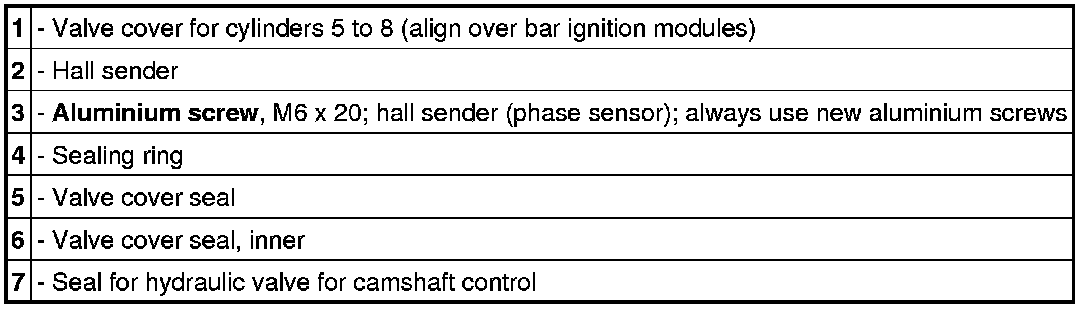

Valve cover for seals, cylinders 5 to 8

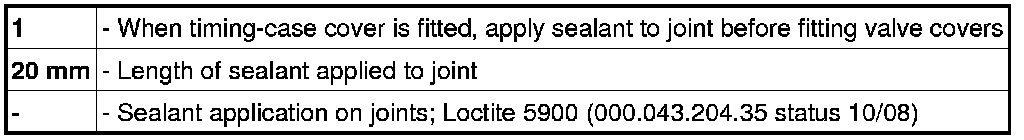

Applying sealant before fitting valve covers
