Outside Temperature Display Sensor: Service and Repair


WM 916819 Removing and installing outside temperature sensor

Preliminary work

1. Remove front apron. -> 631519 Removing and installing front apron - section on "Removing"
2. Unclip air guide cover, if used.

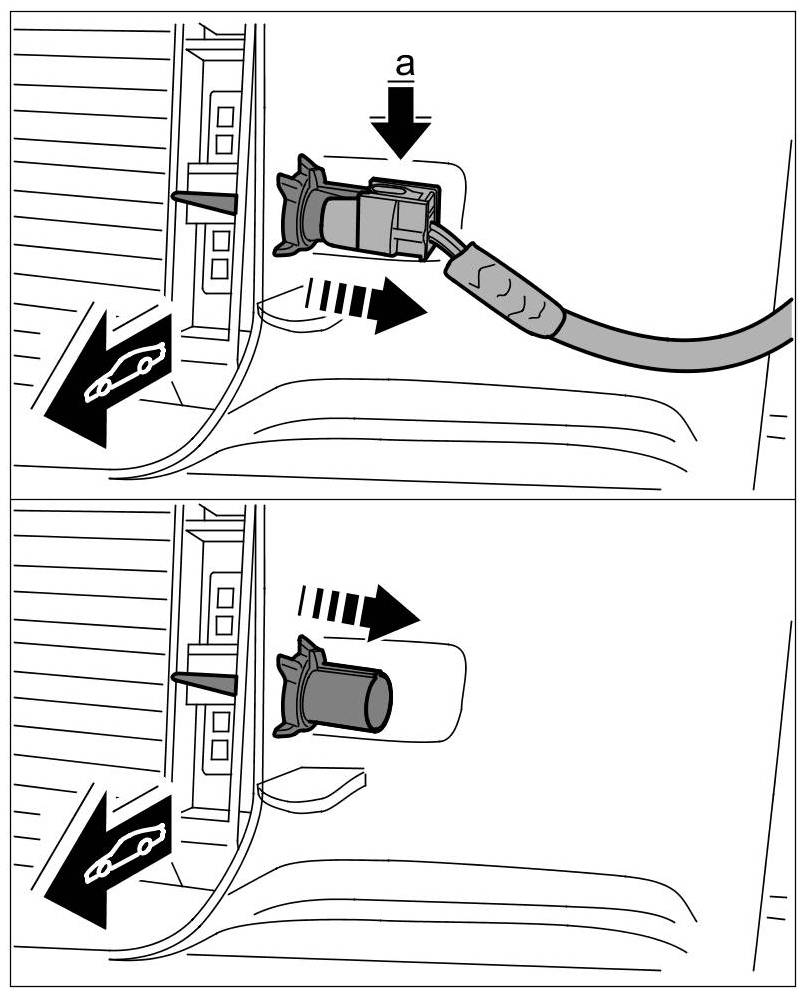

Removing outside temperature sensor

1. Release and unplug connector -a-.





Removing outside temperature sensor

2. Unclip outside temperature sensor.

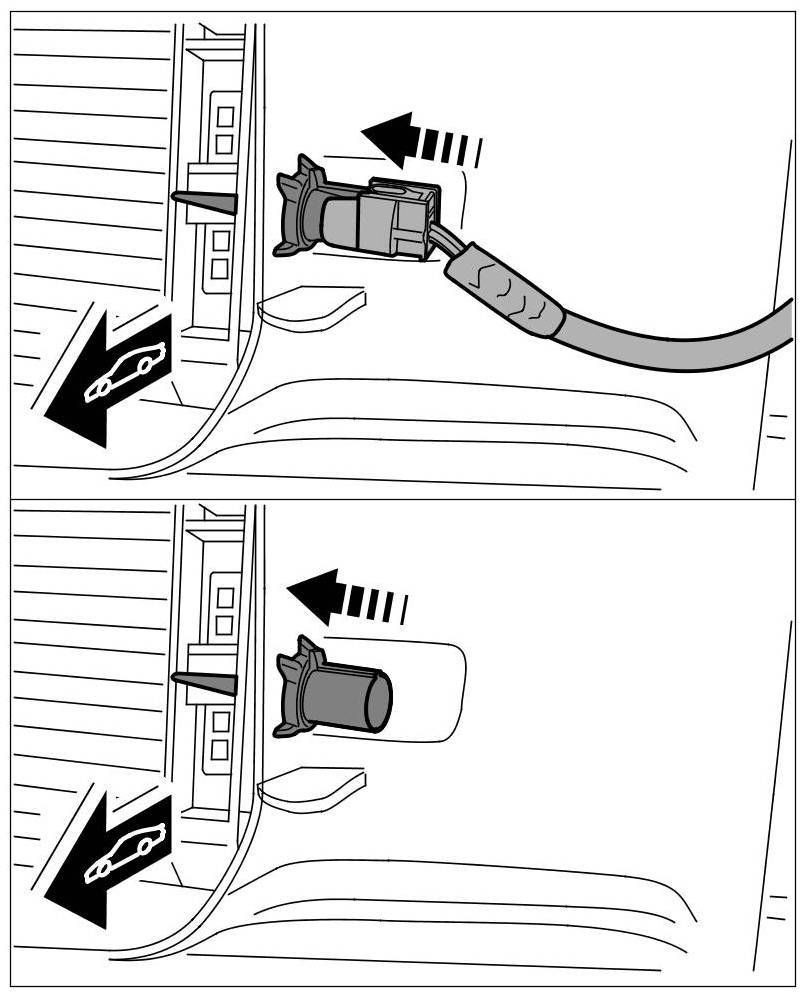

Installing outside temperature sensor

1. Clip in outside temperature sensor.





Installing outside temperature sensor

2. Plug in connector until it engages securely.

Subsequent work

1. Clip in air guide cover, if used.
2. Install front apron. -> 631519 Removing and installing front apron - section on "Installing"
