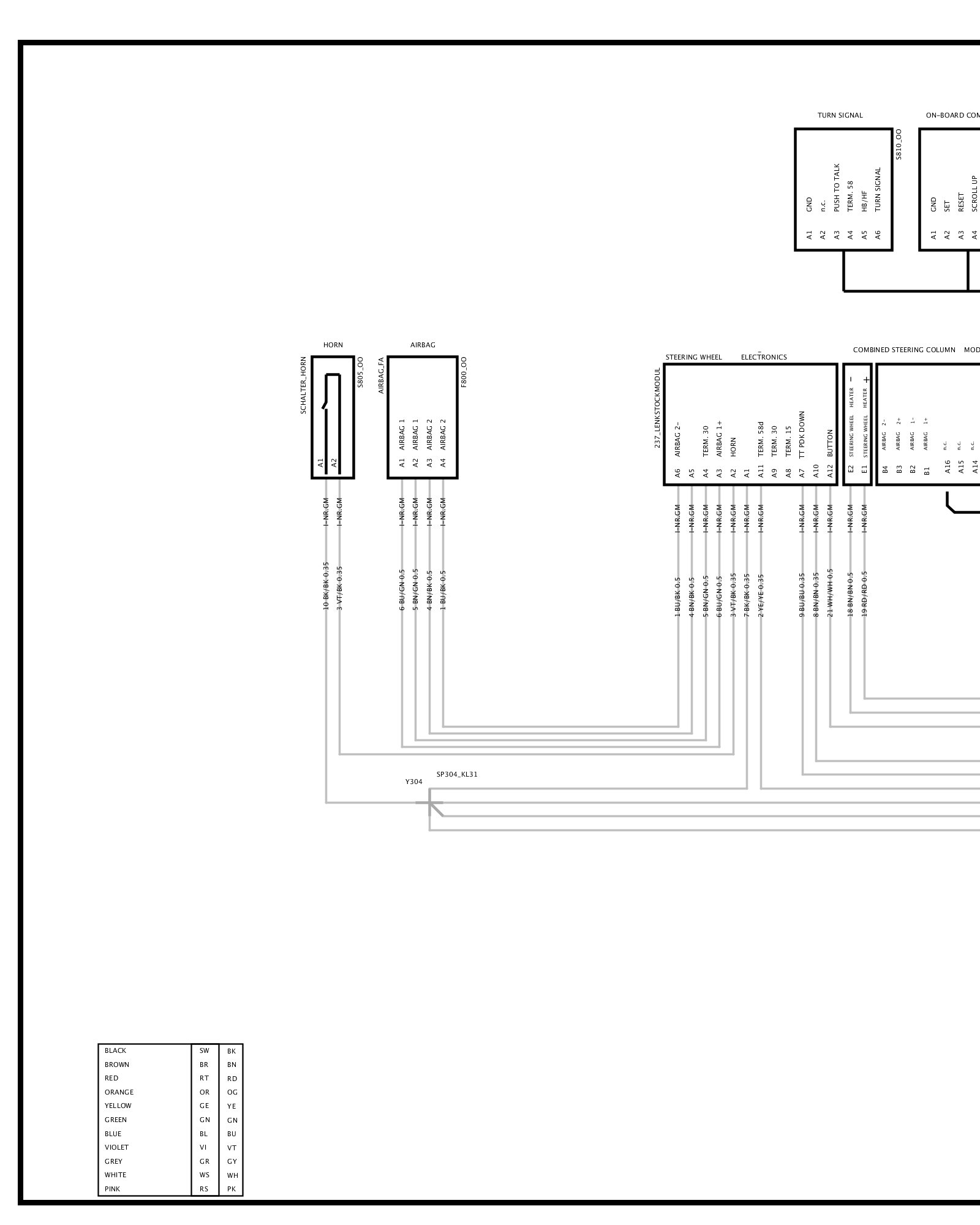

(6B) Pre-Wiring, Steering Wheel Electronics (Without MSW)
(6B) Pre-Wiring, Steering Wheel Electronics (Without MSW)
(6B) Pre-Wiring,
Steering Wheel
Electronics (Without MSW)
