Fuel Body Assembly

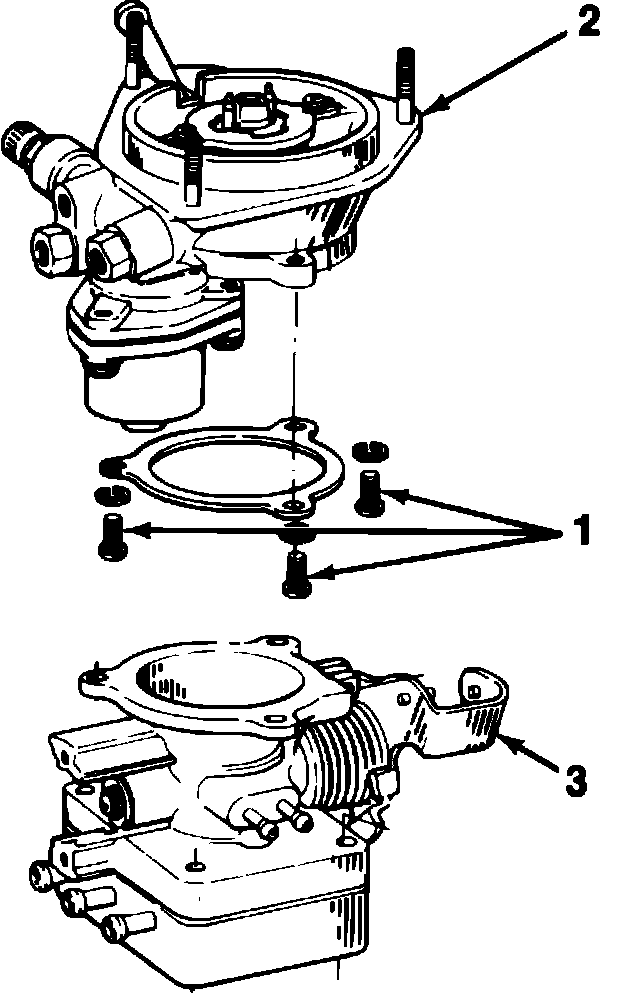

Fig. 5 Replacing fuel body assembly:

1. Remove throttle body assembly from intake manifold.
2. Remove three screws (2) that retain the fuel body (1) to the throttle body (3), Fig. 5.
3. Remove and discard gasket.
4. Reverse procedure to install, using new gasket.
