Manual Transmission/Transaxle: Tools and Equipment

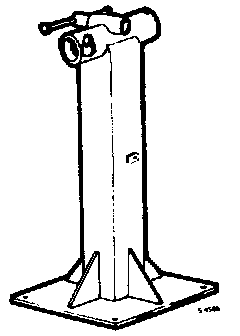

78 60 794 (A1) Floor stand for permanent mounting

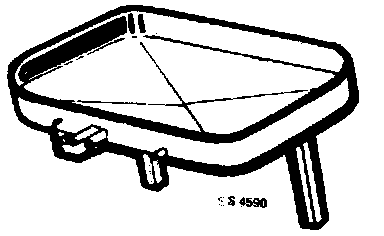

78 60 802 (A2) Oil pan





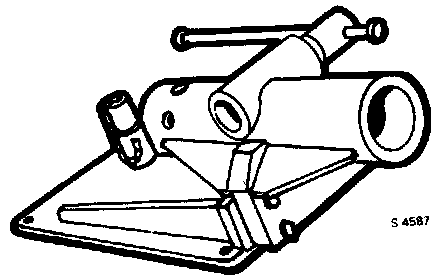

78 60 877 Bench stand, movable (alt. to 78 60 794)
78 60 885 Vice stand





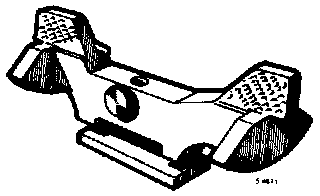

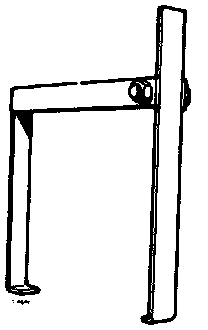

83 90 460 (A2) Gearcase support bracket

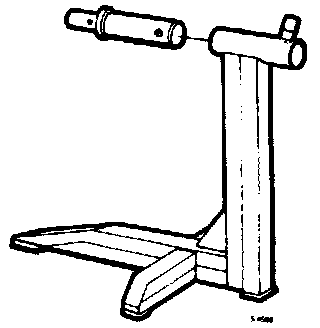

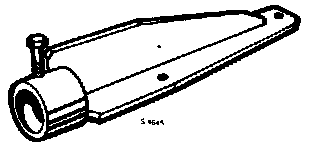

78 61 479 (A2) Stand

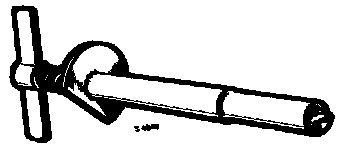

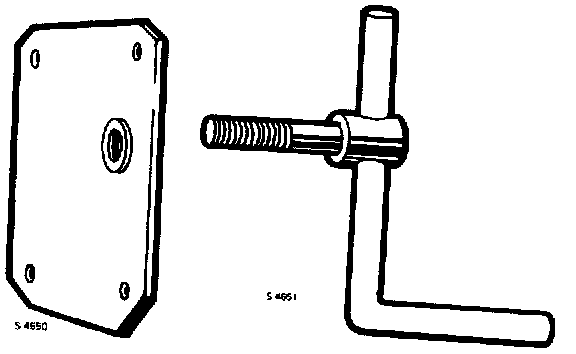

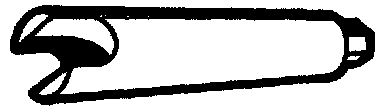

83 90 478 (A2) Spindle for stand

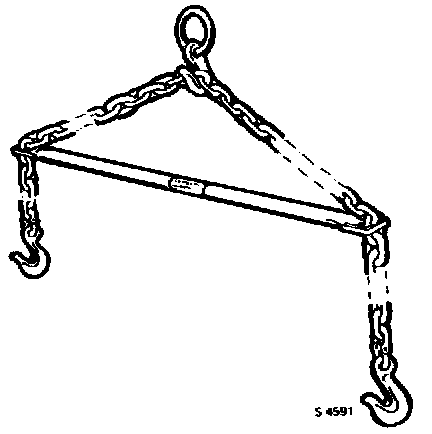

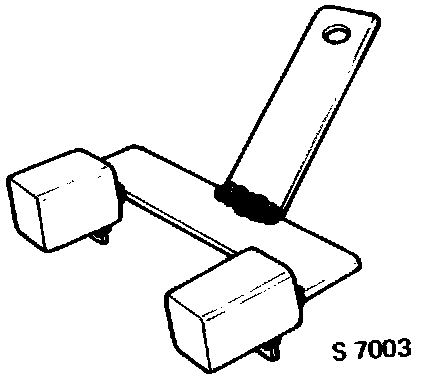

83 92 409 (A1) Lifting yoke





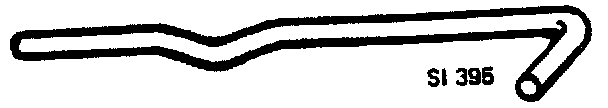

83 94 033 (A1) Lever for removing the clutch shaft (can also be used for fitting the spacer ring)





87 90 776 (A1) Puller for inner drive-shaft universal joint with bearing cap. Also used for automatic transmission

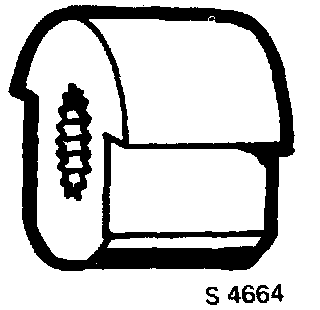

83 90 023 (A1) Spacer ring for clutch
87 91 618 Spacer ring for clutch

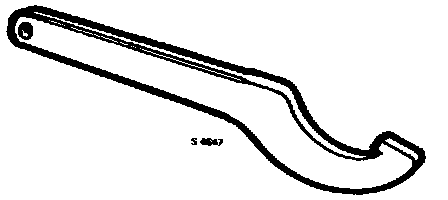

87 90 197 (A2) Hook wrench for layshaft

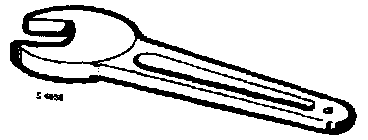

87 90370 (A1) Spanner for special nut for gear lever housing. Also for automatic transmission





83 90 049 (A2) Puller for fitting and removing the reverse gear shaft and layshaft





83 93 209 (A1) Spacer tool for relieving the load of the suspension spring assembly when lifting out the power unit (see also Group 2)





87 90 503 (A2) Locking tool for reverse gearwheel





87 90 511 (A2) Puller for output shaft
78 40 853 Screw





87 90 552 (A2) Gauge for output shaft position in relation to the gearcase





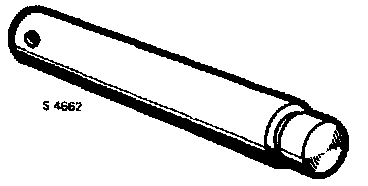

87 90 438 (A2) Guide pin for pinion bearing housing and input shaft bearing housing (two needed). Also for automatic transmission





87 90 933 (A2) Puller ring (used with tool 8790636). For removing the input shaft roller bearing (5- speed gearbox)





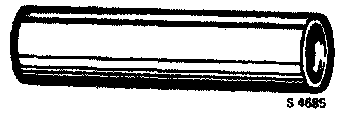

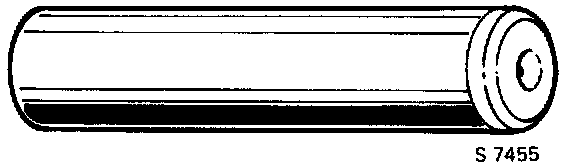

83 90 148 (A2) Sleeve for fitting of output shaft unit, inner roller bearing, pinion, primary chaincase roller bearing inner race and layshaft outer bearing. For removing the primary drive roller bearing, bearing housing outer races, layshaft inner race and clutch shaft seal





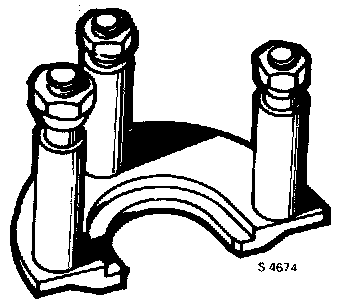

87 90 636 (A2) Fixture for removing and fitting the pinion bearing. Also for automatic transmission

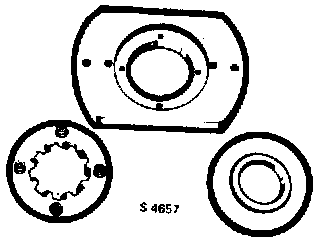

*87 90 699 Puller ring (for automatic transmission)
*87 90 651 Puller ring (for manual gearbox)
*87 90 644 Fitting ring (for automatic transmission)





83 90 114 (A2) Sleeve for fitting the 4th speed gear, bearing housing outer race, pinion and output shaft unit





87 91 097 Holder ring for output shaft with final drive ratio of 9:33 (1982 model)
4-speed No. 142001
5-speed No. 436501





87 90 925 (A2) Fitting ring (used together with tool 87 90 636). For fitting the output shaft (5-speed)





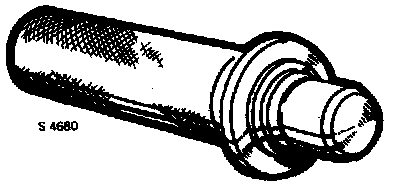

83 90 106 (A2) Drift for removing the pinion roller bearing outer race

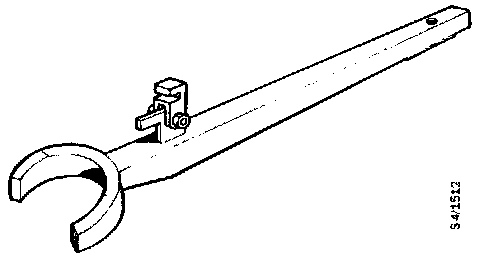

87 90 453 (A2) Spanner for output shaft nut





83 90 189 (A2) Drift for fitting the input pinion with ball bearing, and removing outer races from bearing seats, and outer race and seal from steering knuckle housing. Also for automatic transmission





83 90 122 (A2) Drift for fitting the bearing housing outer race (pinion) and ball bearing on 4th speed gear, and removing the primary sprocket with bearing from bearing housing





87 90 461 (A2) Sleeve for bearing race in pinion bearing housing. Also used for automatic transmission





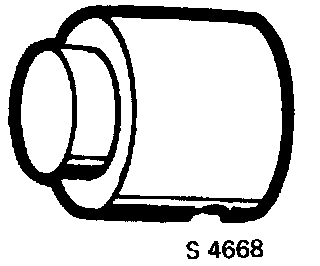

83 90 098 (A2) Dolly for fitting and removing the roller bearing housing outer races and output shaft





87 90 446 Holder for output shaft





87 90 487 (A2) Sleeve for differential housing bearing. Also for automatic transmission





83 90 155 (A2) Measuring jig for pinion position





83 90 130 (A2) Spring balance. See also Group 2





89 96 084 (A1) Puller for removing the front and rear axle hubs, differential housing bearing race, and engine chain sprocket. Also in Groups 5 and 7.





87 90 677 (A2) Tool for removing the selector rod seal





87 90 768 (A2) Puller for removing the bearing races from the differential housing and gearcase





87 90 685 (A1) Tool for fitting the selector rod seal





89 95 177 (A2) Dolly for removing the bearing race from the differential housing





87 90 800 (A2) Drift for pressing the seal into the differential bearing housing





83 91 997 (A2) Drift for clutch shaft seal (gearboxes with primary chain drive) and needle bearing in primary chaincase. Also in Group 2.





78 41 141 (A2) Sleeve for pressing in the ball bearing into the differential bearing housing. Also for automatic transmission.





87 90 867 (A2) Ring for fitting the roller bearing onto the gearbox input shaft (5-speed gearbox).





78 41 067 (A2) Sleeve for removing the ball bearing from the differential bearing housing and fitting the bearing housing with ball bearing onto the inner driver. Also in Group 6 and automatic transmission.

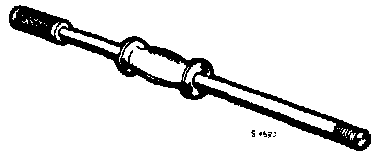

83 90 270 (A1) Sliding hammer. Also in Group 5 and for automatic transmission.





87 90 818 (A3) Driver for measuring the differential bearing rolling resistance. Also for automatic transmission.





87 90 909 (A2) Spacer bolts (4 for tool 87 90 511). For pressing out the output shaft (5-speed gearbox).





83 90 312 (A2) Drift for pressing the bearing races onto the input shaft

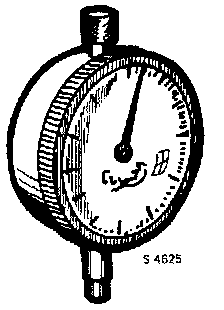

78 40 622 Dial indicator





78 41 075 (A2) Sleeve for fitting the input shaft roller bearing





87 90 727 Holder for dial indicator. For measuring the backlash in the final drive





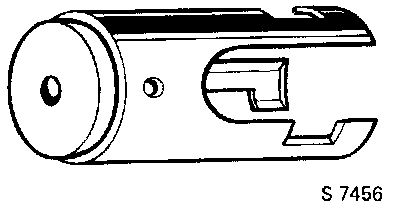

87 90 891 Puller sleeve for primary drive sprocket. Used together with sliding hammer 83 90 270





87 91 576 Locating tool for presetting the gear positions





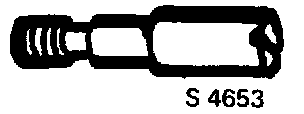

87 90 917 (A2) Adapter (for sliding hammer). For removing/fitting the input shaft (5-speed gearbox)
