Home >> Saab >> 1990 >> 9000 L4-2290cc 2.3L DOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations

Air Bag Control Module: Locations

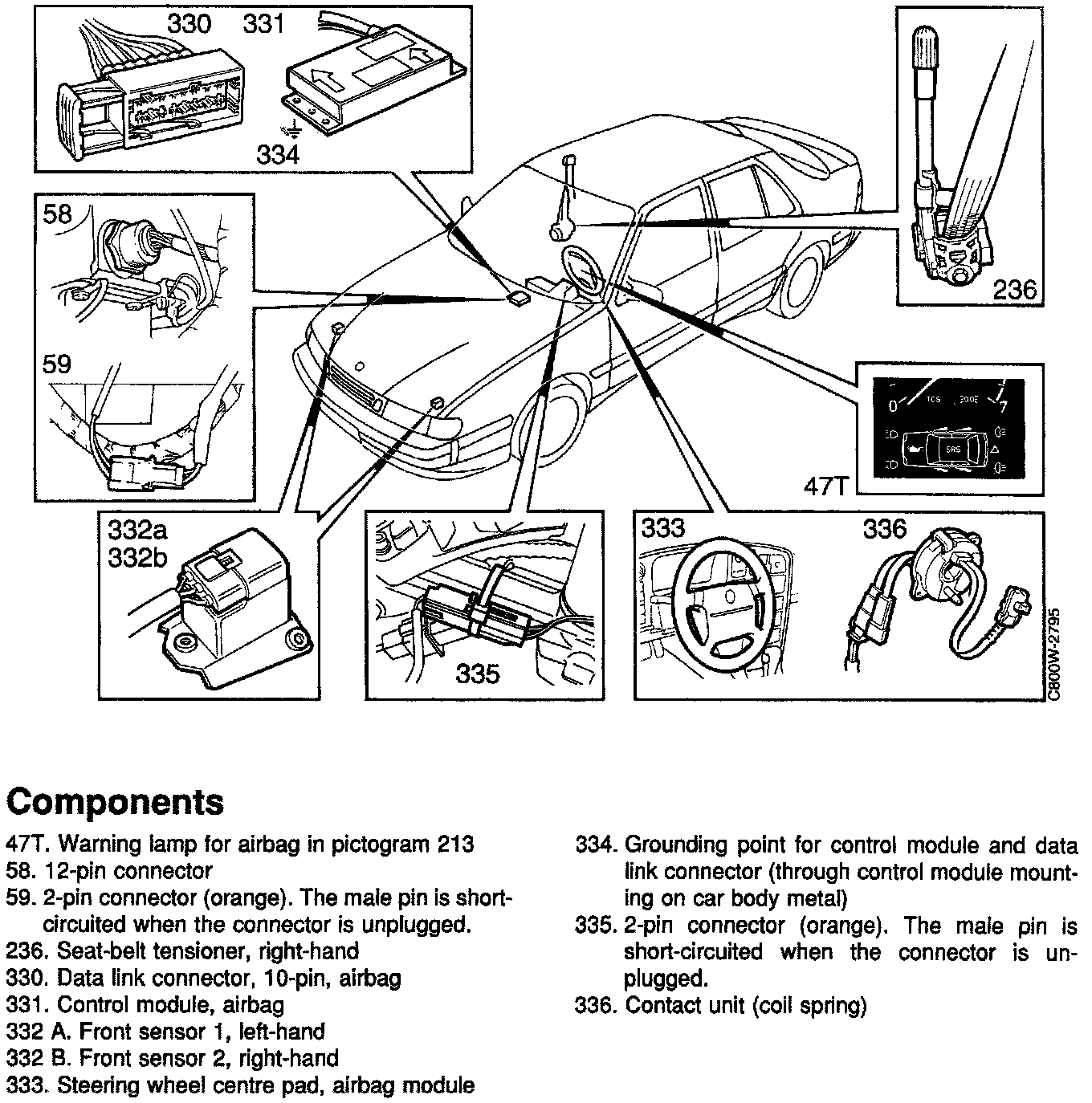

The Air Bag Control Module (331) is located behind the glove box.
