By-Pass Valve, Removal/Fitting

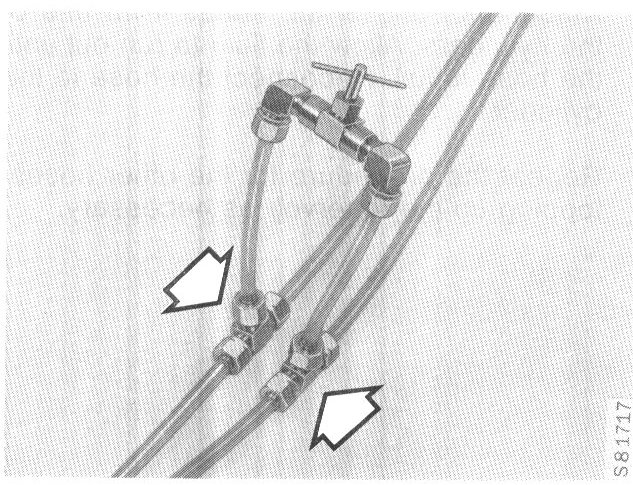

Bypass valve





To remove
1. Remove the hydraulic system from the car. Service and Repair
2. Remove the bypass valve.

To fit
1. Fit the new bypass valve. Tightening torque: 5.1 - 6.2 Nm (3.8 - 4.5 ft lb).
2. Reinstall the hydraulic system in the car. Service and Repair
