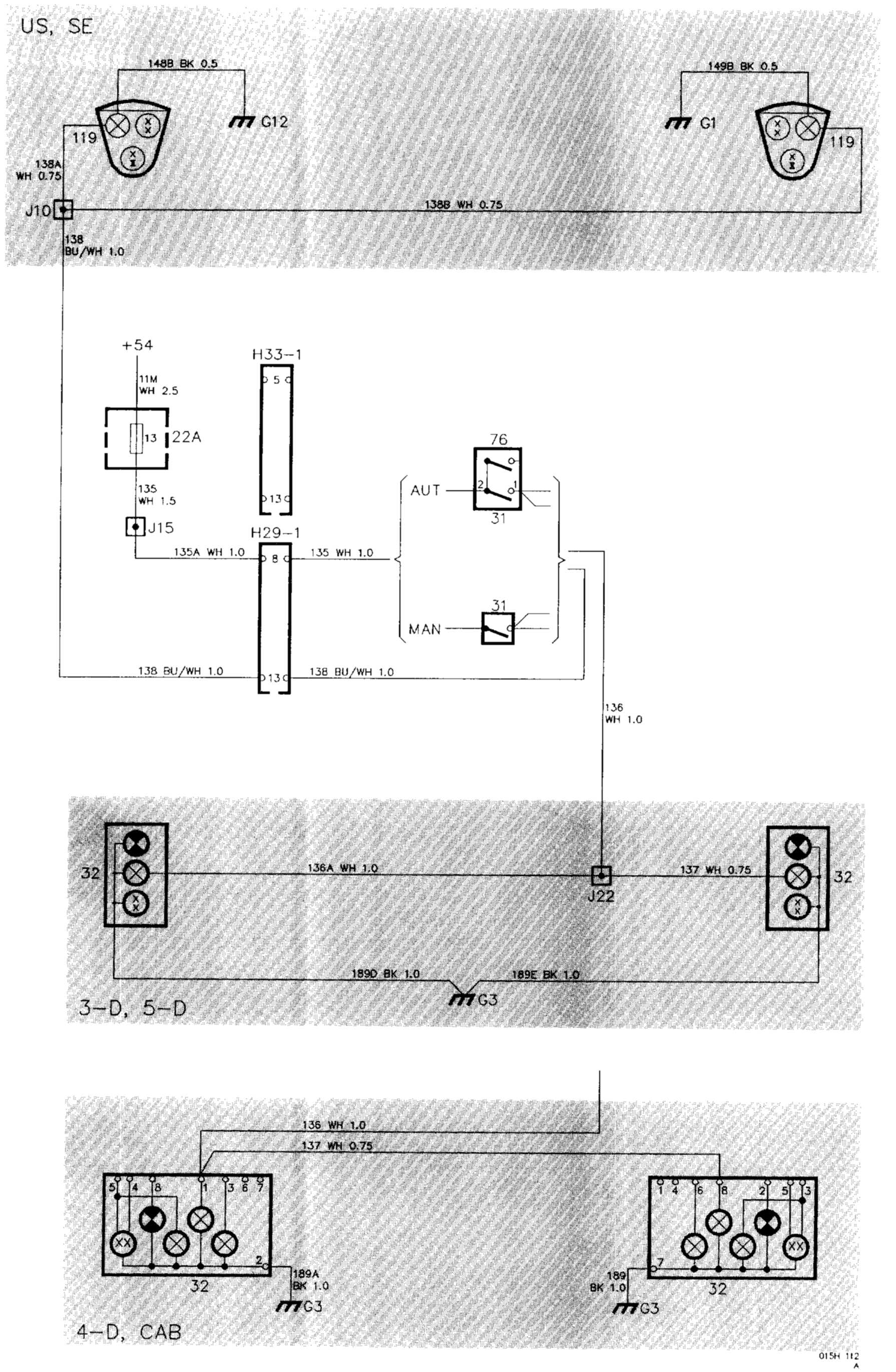

Backup Lamp Switch

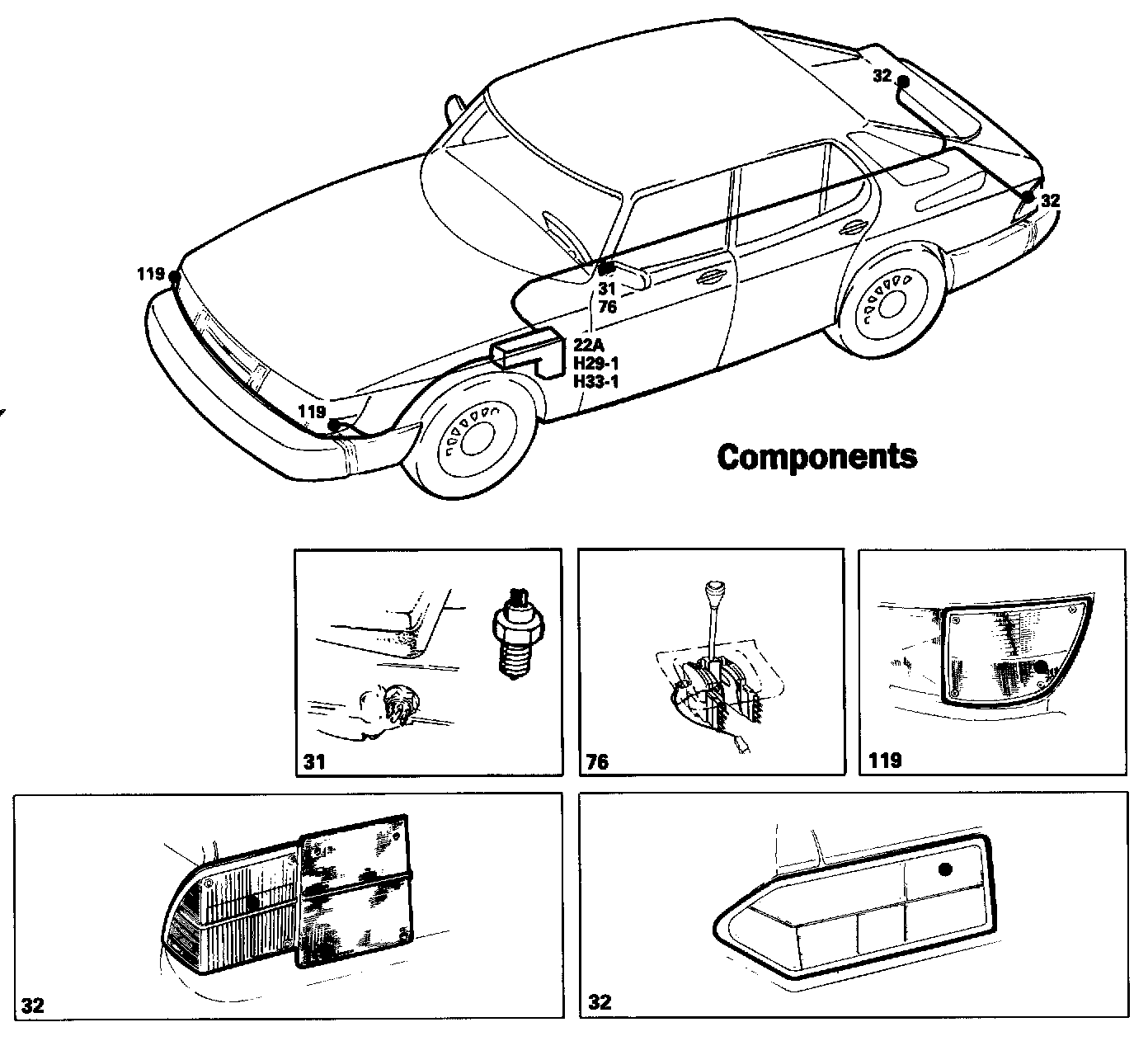

Locations of components






22A Fuseholder in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
31 Reversing light switch under the centre console, to the left of the selector lever
32 Reversing lamps in the rear light clusters
76 Switch for raising the idling speed, auto. transm. under the centre console, at the selector lever
119 Side reversing lights in the front light clusters
G1 Earthing point on the radiator cross-member
G3 Earthing point in the luggage compartment
G12 Earthing point for the amplifier, on the left-hand wheel housing
H29-1 29-pole white connector
H33-1 33-pole black connector in the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connectors are accessible from the interior
