Automatic Transmission

1 Clean the external surfaces of the engine and gearbox.

2 Drain the engine oil.

3 Remove the cover over the ring gear.

4 M84 and earlier only: Remove the starter motor.

5 Disconnect the throttle cable from the throttle housing (carburettor engines only).

6 Remove all bolts from the mating flanges between engine and gearbox and the hydraulic hoses for the oil cooler.

7 Remove the bolts securing the ring gear to the torque converter.

8 Rotate the flywheel to bring the angle irons horizontal. Carefully lift the engine off the gearbox.

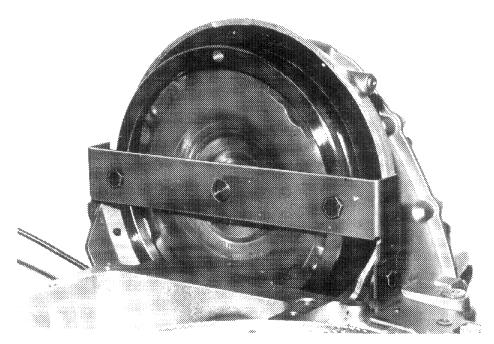

9 Fit the torque converter support bracket, 87 90 255.
