Technician Safety Information

Caution!

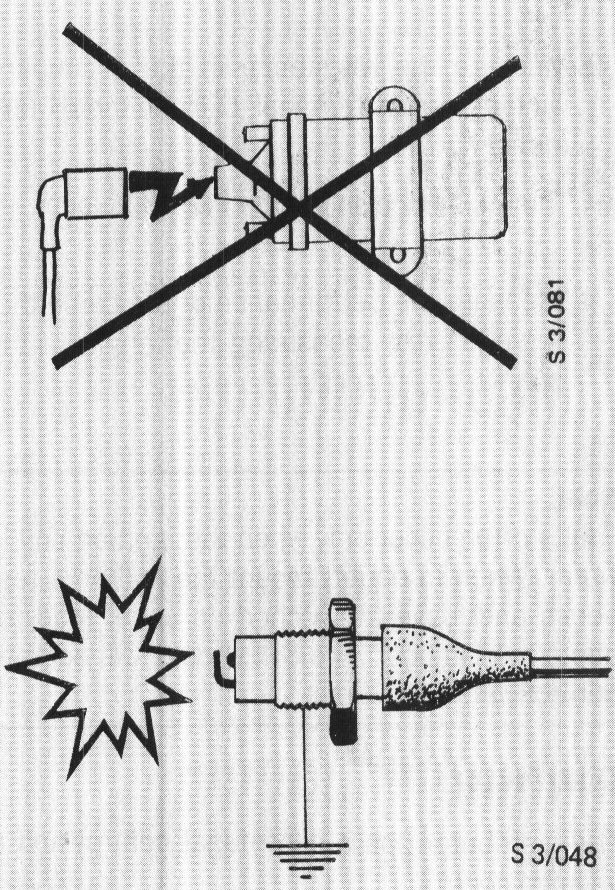

Because of the damage that may result from flashover at the ignition coil, HT leads, distributor and the amplifier, the following must be observed:

^ Never disconnect an HT lead when the engine is running.

^ Never attempt to start the engine if any HT lead has been disconnected or if the distributor cap has been removed.

^ Before carrying out a compression test or the like, always disconnect the amplifier.

To check the ignition spark, proceed as follows:

^ Unscrew the spark plug or use a separate plug.

^ Connect the HT lead to the plug.

^ Hold the plug against the engine so that it is well earthed.

^ Check the spark.
