Fluid Type Specifications

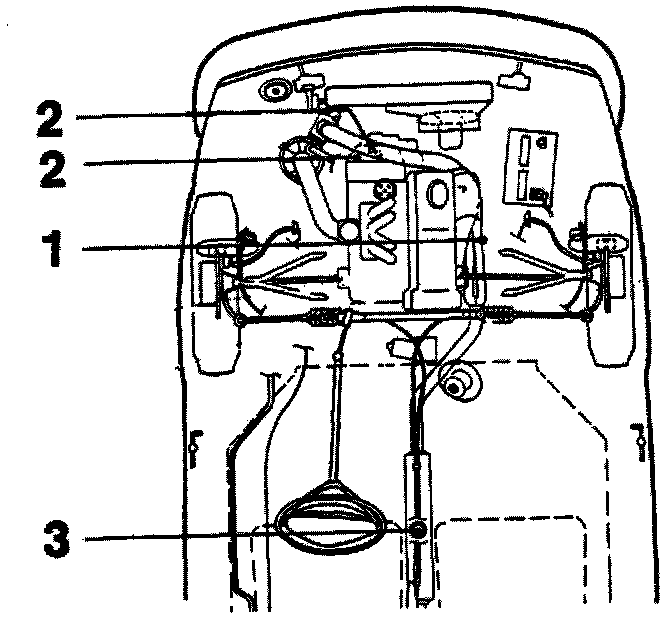

LUBRICATION POINT LUBRICANT
1. Gearbox SAE 10W30 or 10W40 engine oil
SAE EP 75 API-GL 4 or API-GL 5

2. Clutch release bearing Permanently lubricated at the factory.
Do not wash.
Clutch shaft splines Molybdenum disulphide paste when fitting or
Saab Special chassis grease.
Clutch support bearing Permanently lubricated at the factory. Do not wash.
In flywheel

3. Gear lever housing Soft EPI grease.
