Trionic System - Fault Code Extraction Using The MIL

CATEGORY
Engine

SECTION
2

PAGE
21

ISSUE
11/92-0268

CODE
200



Subject:
TRIONIC Flashing Lamp Fault Codes

Application:
1993 9000 Models






Service Manual section 2:7 Saab TRIONIC Engine Management System for model year 1993 cars contains a complete description of the system diagnosis and fault-tracing procedures using an ISAT. This bulletin describes an additional method of fault diagnosis by means of fault codes generated as flashes of the Malfunction Indicator Lamp (CHECK ENGINE lamp), Figure 1. This method only indicates certain emission-related faults in the system without the use of an ISAT.


Cars Affected:

1993 9000 models with B234 Turbo and TRIONIC engine management system.

Action:

Fault diagnosis can be carried out as soon as the ignition switch is turned to the drive position.

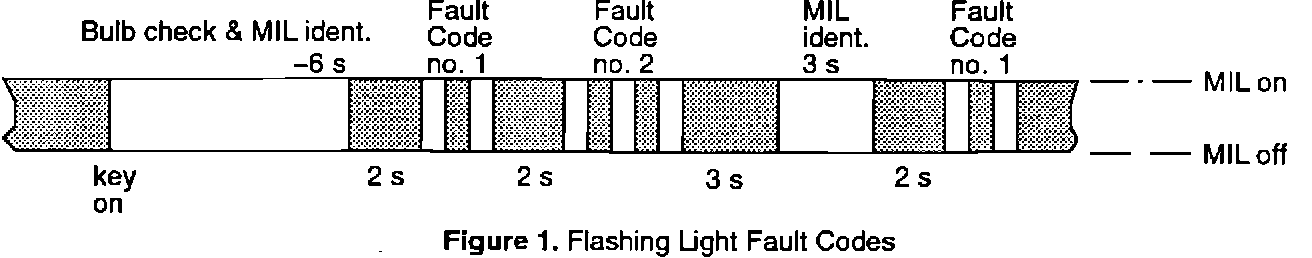

To obtain a fault code reading, Figure 1:

1. Turn the engine switch to the Drive position without starting the engine.



2. In about six seconds the Malfunction Indicator Lamp (CHECK ENGINE lamp) will go out for about 2 seconds. It will then begin flashing the first fault code.

3. The codes consist of a number of flashes, each having a duration of 0.4 seconds. The Malfunction Indicator Lamp (CHECK ENGINE lamp) will go out for two seconds between each new series of flashing codes (if there is more than one fault).

4. After the last series of codes the lamp will go out for 3 seconds then it lights up again for another three seconds, following which the flashing codes will be repeated. The fault codes will be repeated in this way as many times as desired.



5. The flashing lamp codes will be repeated until the fault code memory is cleared. To clear the fault code memory, unplug the TRIONIC control module connector for at least five minutes.

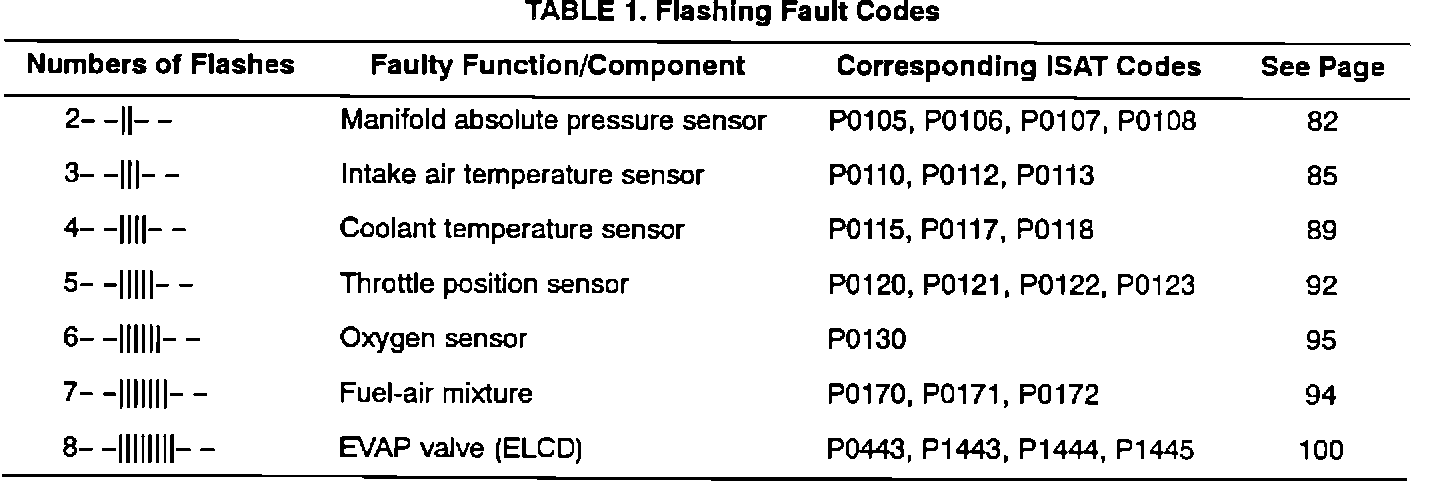

Refer to Table 1 for a complete list of all the flashing fault codes.

NOTE

The page references in the table refer to Service Manual 2:7 "Saab TRIONIC Engine Management System" M1993.



Warranty Information:

Diagnostic time allowance for the above is 0.3 hours. Please use labor operation no. 12226, and change description on page 2-31 (9000 Failure Code/Flat Rate Manual) to "LH/TRIONIC Injection System - ISAT/Flashing Light Diagnostic Time". Under "Time Includes:" add "Flashing light reading(s) must be included in claim text."
