ACC Fan Control Module, Changing

To Remove

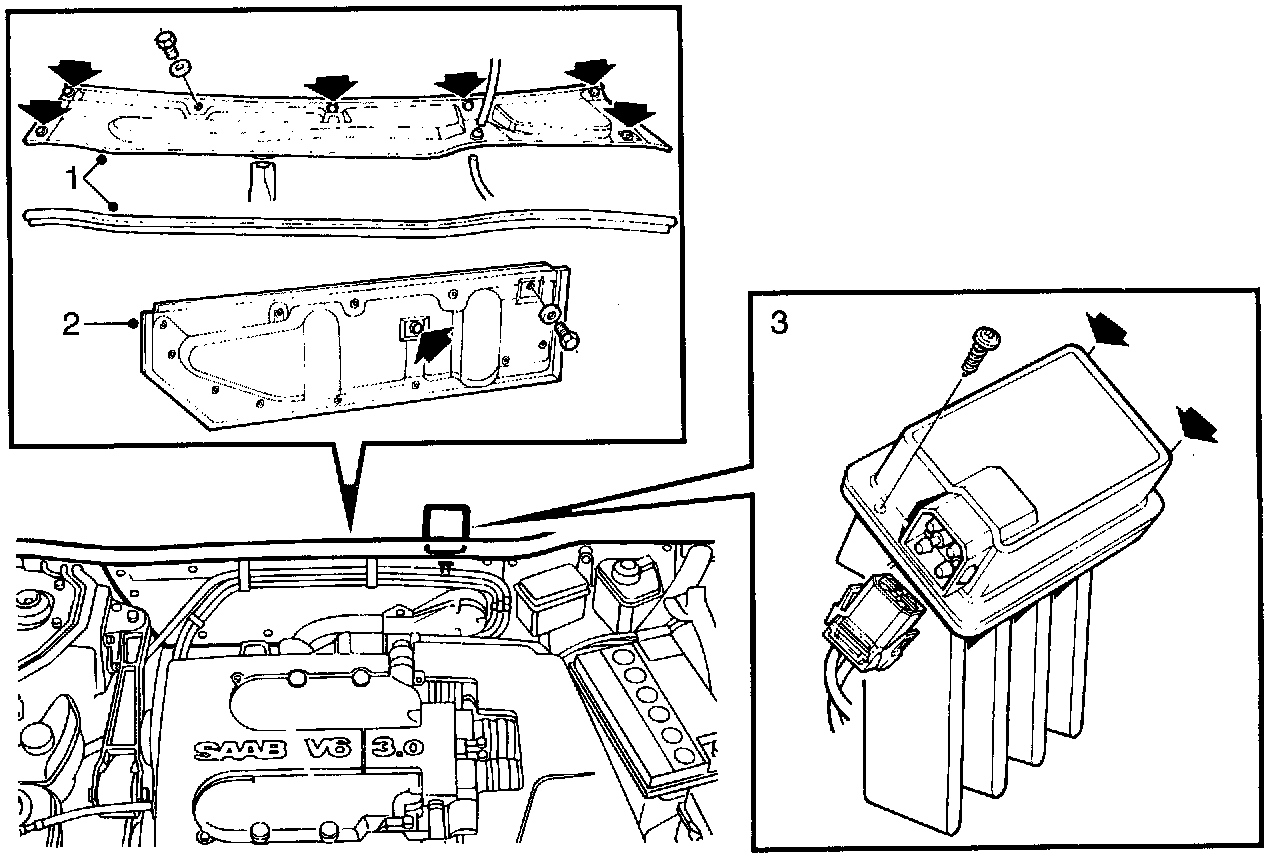

1 Remove the rubber strip and the cover over the bulkhead space.
Disconnect the washer hose.
2 Free the right-hand shield plates.
3 Unplug the connector and undo the three securing screws.
Lift away the fan control module.


Important : The fan control module cooling fin is live until the connector is unplugged.

To Install
4 Install the control module.
5 Plug in the connector.
6 Install the shield plates.
7 Connect the washer hose to the cover and secure the cover and the rubber strip over the bulkhead partition space.
8 Calibrate the Automatic Climate Control (ACC) system by pressing the "AUTO" and "VENT" buttons at the same time.

Important : During calibration, all previously stored diagnostic trouble codes are erased. Before carrying out calibration, all stored diagnostic trouble codes should be read.
