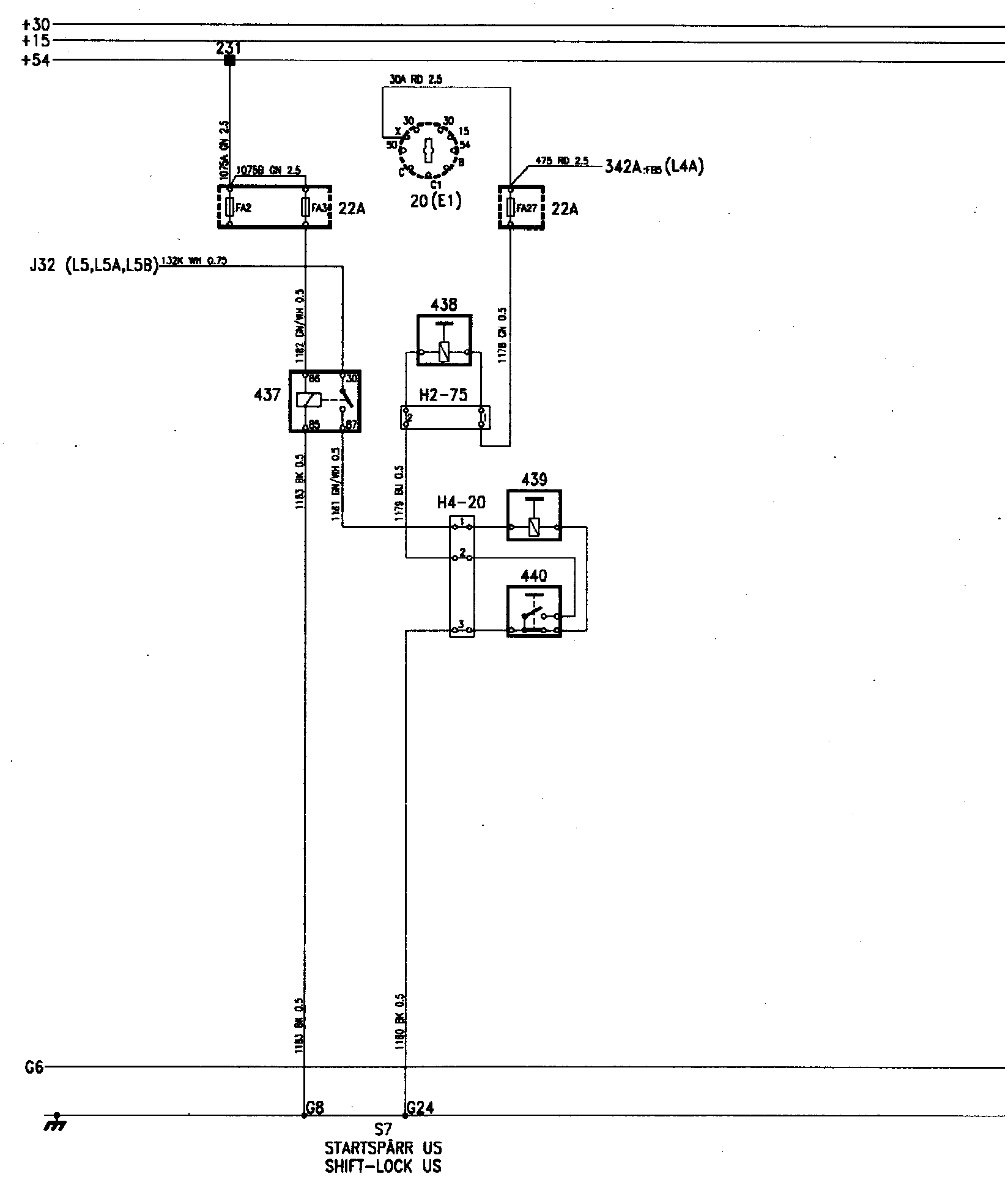

Shift Lock

��#Shift Lock, US, CA:






For the list of components please refer to Diagram Information and Instructions/Component I. D. List
