Electrical Distribution Box Behind the Glove Compartment
Fuse/Relay Location and Identification

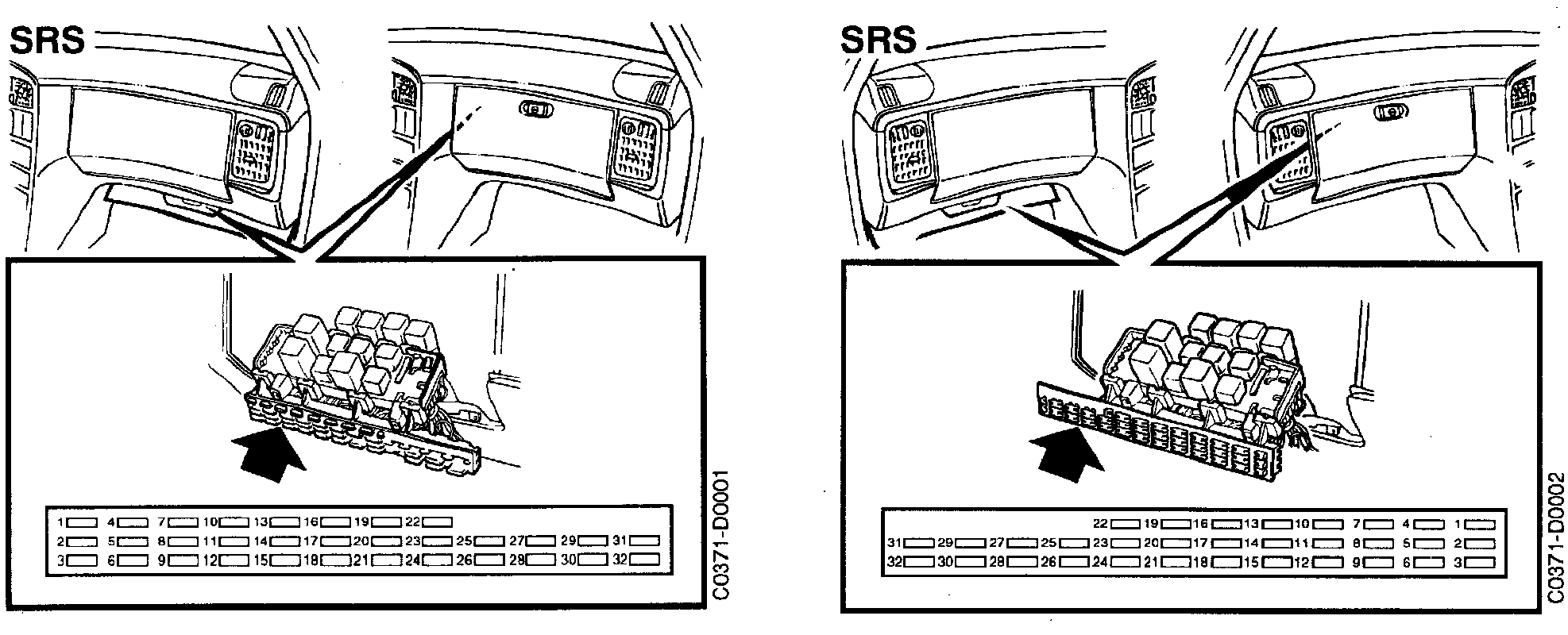

Main Fuse Box, Glove Box
Fuses
Main Fuse Box, Glove Box:
Fuse Rating Function
1 5A ACC control module, A/C
2 10A Cruise Control, electrically adjustable door mirrors
3 10A Seat-belt warning, reading lights,
4 5A Airbag
5 10A APC system
6 30A Ventilation fan
7 10A Headlamp wipers, horn switch
8 20A Windscreen wipers,rear window wipers
9 30A Rear electric window lifts, sunroof, reversing lights, cigarette lighter.
10 20A Electrically heated front seats
11 30A Front electric window lifts/headlamps
12 15A Direction indicators, headlamp beam adjustment
13 10A Instrument, EDU, fuel system (+15 circuit), ETS
14 20A Fuel pump
15 5A Electronic throttle actuator
16 15A Central locking, delayed interior lighting, courtesy lights,
reversing lights
17 10A ACC,EDU
18 30A Electrically heated rear window
19 15A Radio, electrically operated aerial/clock/SCC
20 Pre-wiring for telephone
21 25A Electronic throttle actuator
22 15A Hazard flashers
23 5A Data link connector, engine and car electronic circuitry
24 15A Brake lights
25 30A Electrically adjustable driver's seat
26 30A Electrically adjustable passenger's seat
27 10A Radio, P-interlock
28 10A Heated oxygen sensor
29 15A Parking light (right-hand),lighting for controls and instruments
30 10A Parking light (left-hand), glove box lighting
31 15A Daylight driving lights
32 15A Rear fog light
Relays
Main Fuse Box (Glove Box):
Relay Function (Component Number)
A Seat-belt/ignition key warning (82)
B1 P-interlock (437)
B2 Rear window wiper,intermittent operation (83A)
C Washer pump, rear (432)
D Fuel pump (102)
F Reversing lights (405)
G Ignition switch (21)
H Engine management system (229)
I Electrically heated rear window (113)
J Electronic throttle actuator ETS (377)
K Starter motor interlock (452)
L Windscreen wiper, intermittent operation (83)
M Interior lighting with time delay (151)
N Direction indicators (23)
O Daylight driving lights US/CA (174)
159 Distribution terminal +15 circuit
230 Distribution terminal +30 circuit
231 Distribution terminal +54 circuit
G6 Distribution terminal, negative
