Engine Tightening Specifications

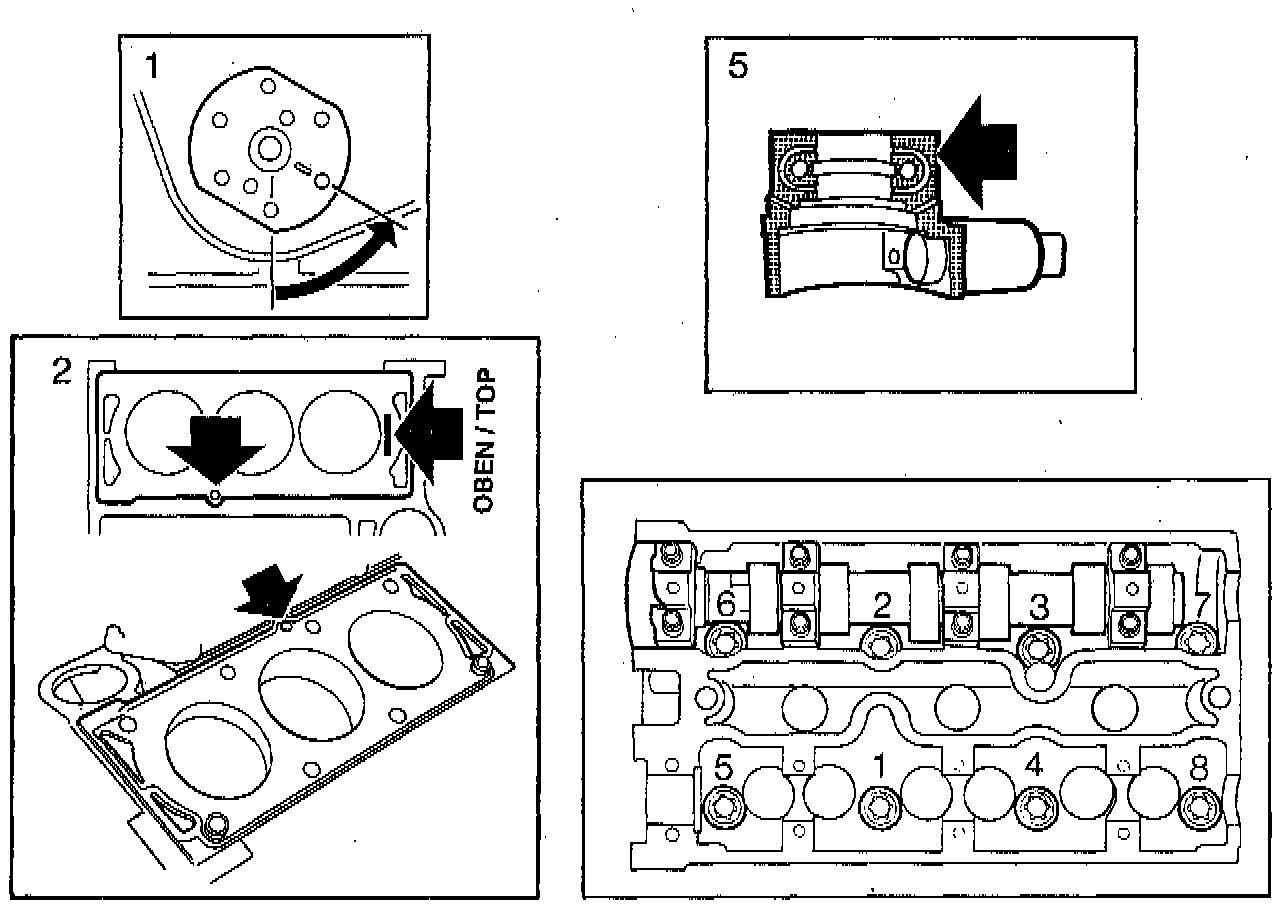

Cylinder Head Tightening Sequence

Front





Rear





Engine Torque Specifications






Component Torque/Ft. Lbs.

Coolant Bridge Bolts 22
Lower Roller Counter 30
Steering Swivel Member To MacPherson Struts 68
