Grounding Points G2

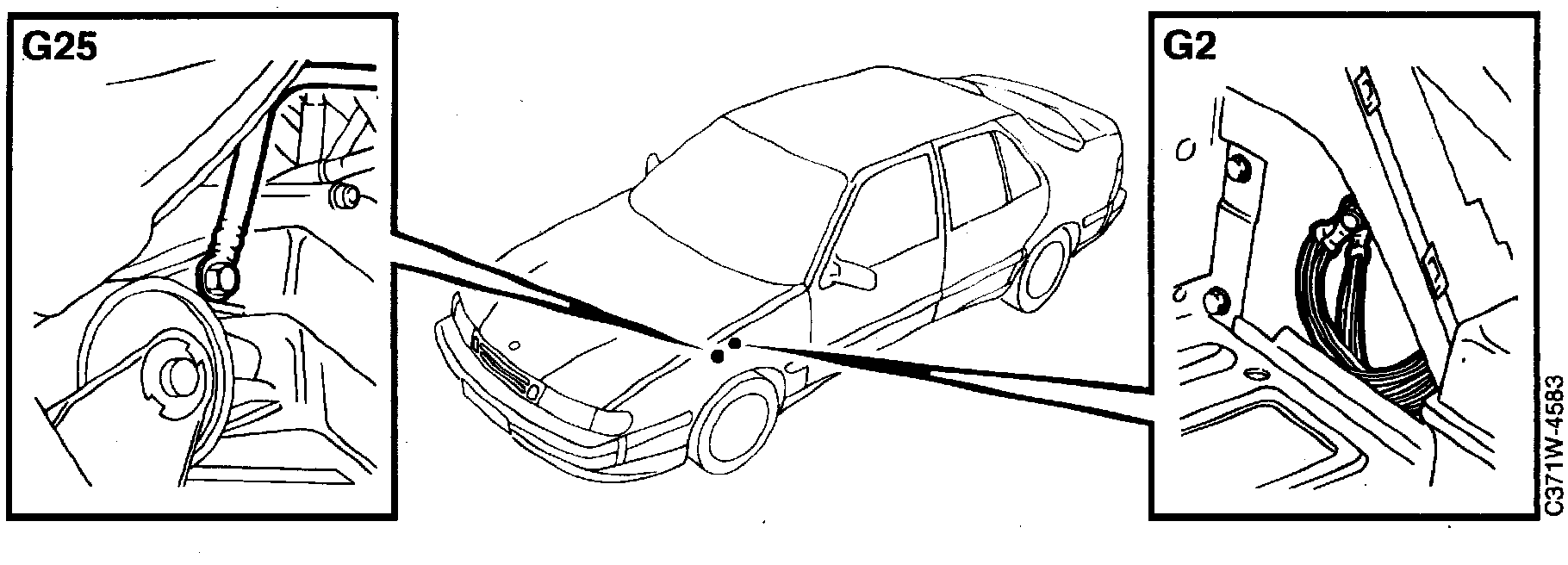

Grounding Points G2, G25:

Grounding point G2 is located behind the battery on the left-hand wheel housing.
The following components are connected to the grounding point:

1 Battery
36 Motor, ventilation fan
42 Brake fluid level warning switch
62 Windscreen wiper motor
220 Speed control for ACC ventilation fan
243 Engine oil level switch
275 Siren, anti-theft alarm
282 Headlamp beam adjustment switch
453 Coolant circulation pump, V6
508 Cruise Control system control module
G6 Negative distribution terminal
G25 Gearbox grounding point
