Cruise Control System

Cruise Control System: Component Location:

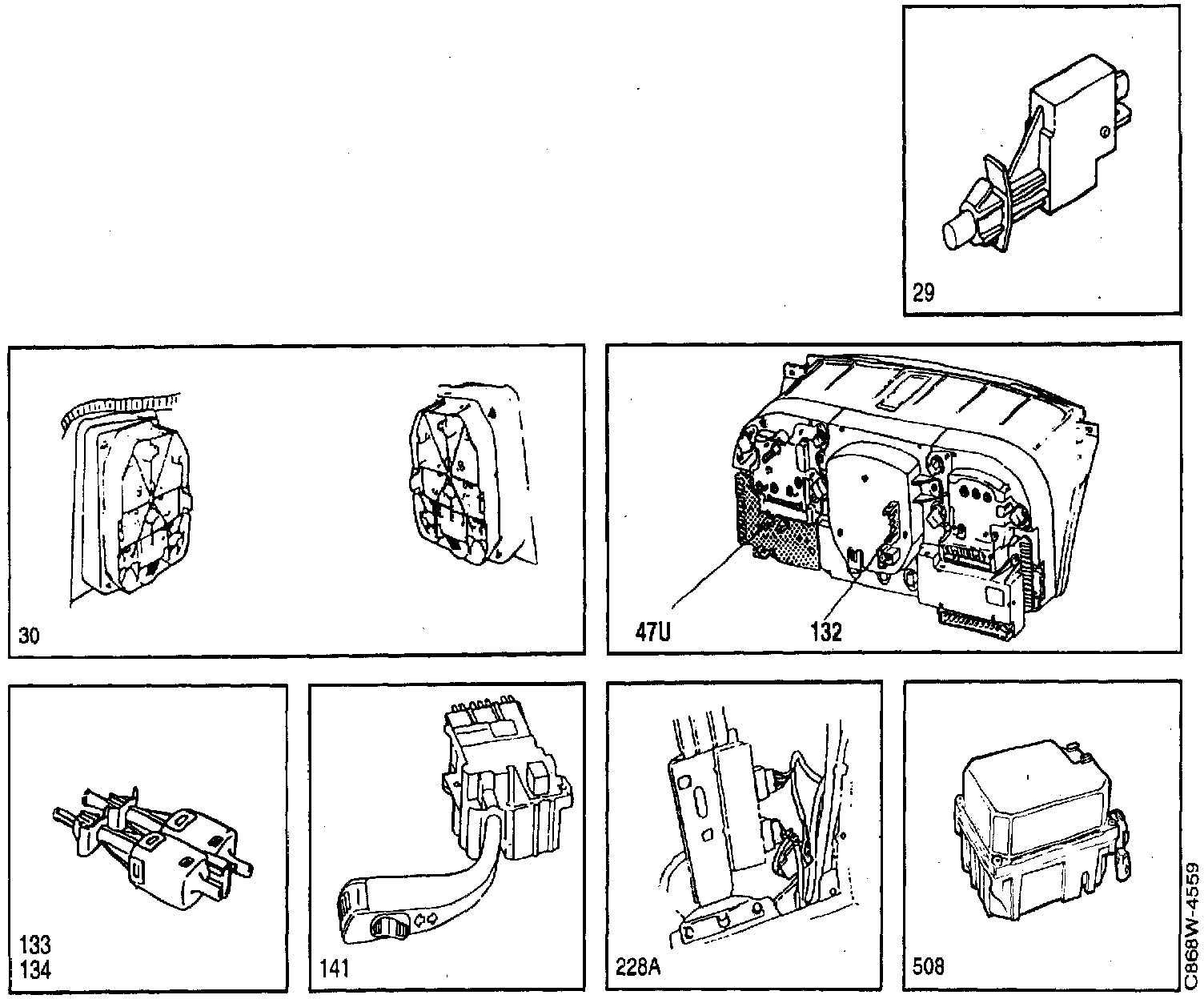

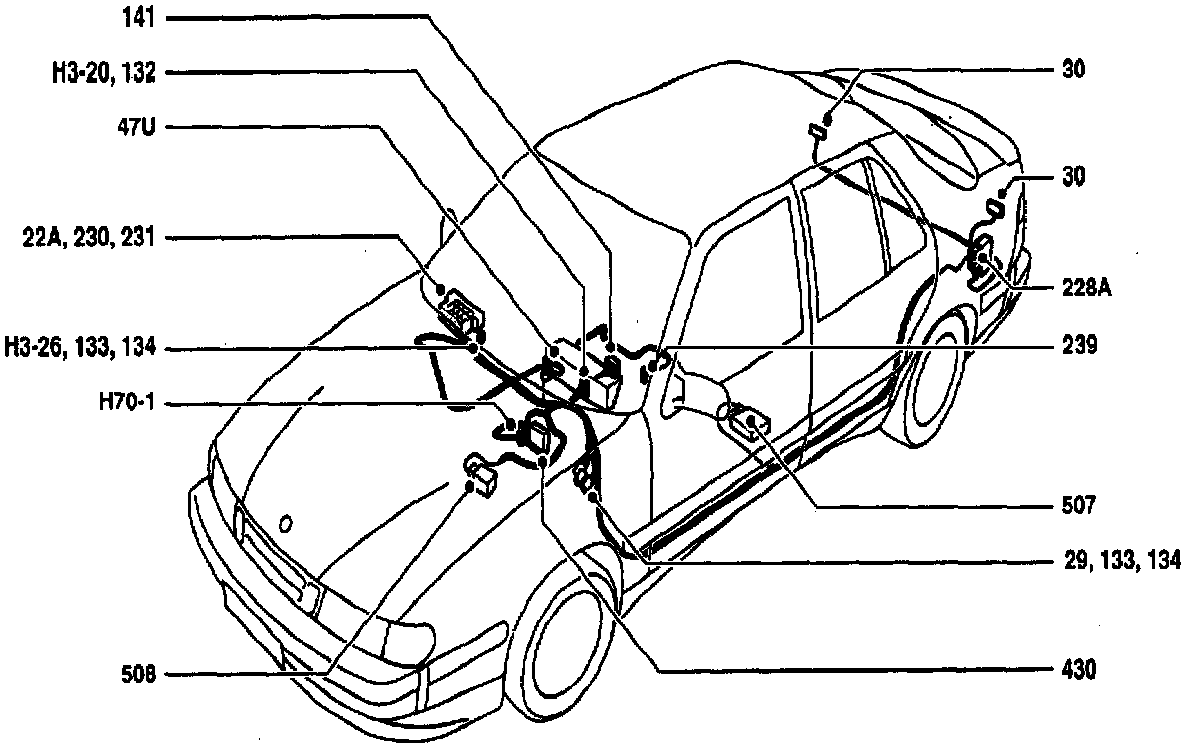

COMPONENT LOCATION VIEW

Cruise Control System: Component ID:

COMPONENT ID
22A Fuse board behind the cover flap in the glove box.
29 Brake light switch beside the brake pedal.
30 Brake lights in the rear light clusters.
47U Cruise Control indicator lamp, in the main instrument display panel.
76 Idling speed increase switch, automatic transmission, in transmission range switch 239 adjacent to the selector lever.
132 Vehicle speed sensor, in the speedometer.
133 Clutch pedal switch, Cruise Control, on the clutch pedal.
134 Brake pedal switch, Cruise Control, on the brake pedal.
141 Switch, speed control, on the direction indicator stalk switch on the left-hand side of the steering wheel.
228A Filament monitor, rear lamps, in luggage compartment on the left-hand side.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.
239 Transmission range switch beside the selector lever.
430 Saab Trionic control module, in engine bay on the left behind the bulkhead partition.
507 Control module, TCS V6, under Cruise Control, adjacent to the battery tray.

3-Pin Connectors
H3-20 Behind the main instrument display panel adjacent to the speedometer (ME).
H3-26 (RHD) above the pedal bracket beside the pedal switches.

70-Pin Connector
H70-1 In the engine bay, behind the bulkhead partition.

Grounding Points
G2 Grounding point, behind the battery on the left-hand wheel housing.
G3 Grounding point, luggage compartment, on the left-hand side adjacent to the left-hand rear light cluster.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G29 Grounding point, luggage compartment, on the right-hand side adjacent to the right-hand rear light cluster.
