Antenna: Service and Repair

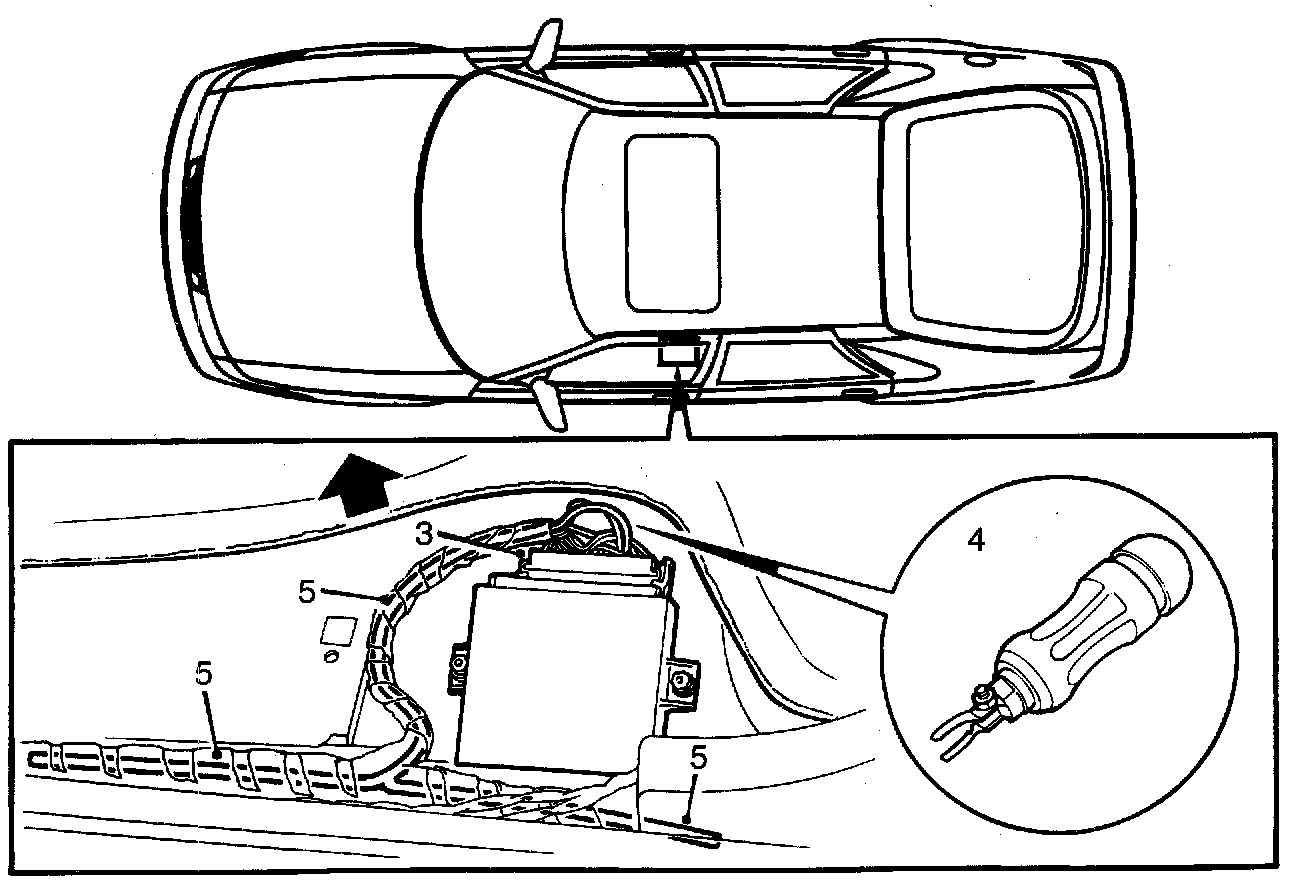

1 First disconnect the negative cable (-) from the car battery.
2 Remove the electronic control module as described earlier.
3 Unplug the electronic control module connector.
4 Extract the leads with pins (2) from the aerial connector.
5 Undo the binding round the wiring harness. Separate the leads in the wiring harness (to gain access to the aerial leads) and remove the aerial.


Important: Remember to install the new aerial in the same way as the old one.


6 Install in reverse order.
