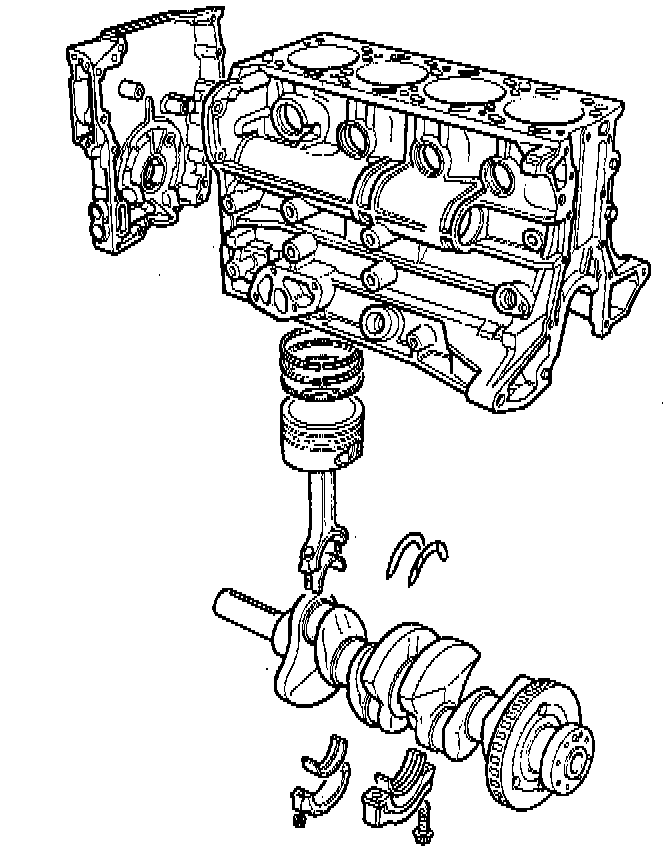

Cylinder Block Assembly: Description and Operation

The block is a special one-piece casting with the cylinder bored in the block. Special ollways for the lubricating system are also drilled in the block.

Incorporated in the sides are the balance shafts, the inner journals of which run in aluminium bearing shells press-fitted in the block. These can be replaced without the need for any subsequent machining.
