G30

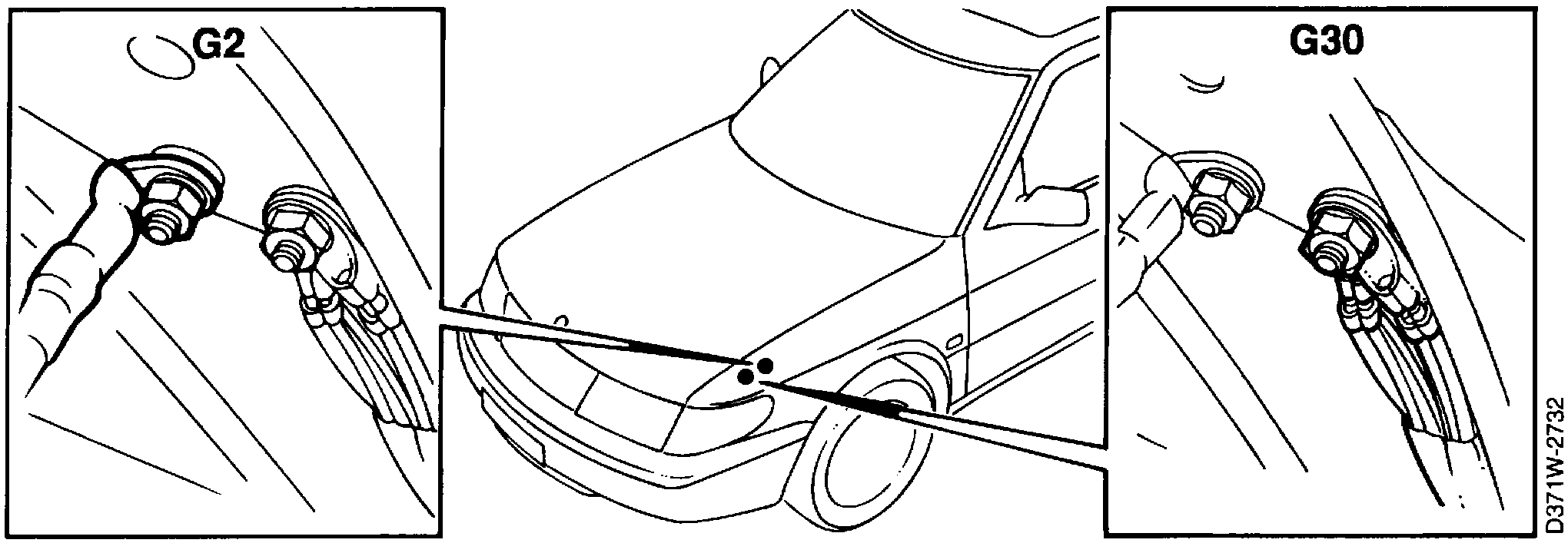

Grounding Points: G2, G30:

The following components are connected to grounding point G30 behind the battery on the structural member:
11FL Lamp, dipped beam, LH
12FL Lamp, main beam, LH
13FL Lamp, parking light, left-hand
27FL Lamp, front direction indicator, LH
37 Radiator fan
66FL Motor, headlamp wiper, left-hand
85FL Lamp, extra fog light, LH
119FL Lamp, side reversing light, left-hand
134 Switch, brake, cruise control
166 Pressure switch, 3-stage, A/C
195 Washer fluid level switch
228b Filament monitor, front lamps
280FL Motor, headlamp beam-length adjustment, left-hand
324 Relay, secondary air injection pump
325 Secondary air injection control valve
326 Motor, secondary air injection pump
547 Control module, ABS
