Alarm Signal, Country-Specific/Own Alternative/Siren

The anti-theft alarm is pre-programmed for the requirements of 4 different countries on how an alarm is to be given. The operation of the alarm thus complies with the laws and insurance requirements that apply in these countries. For countries with other requirements, and for different customer preferences, individual programming is possible under "OWN ALTERNATIVE" in the menu.

Programming

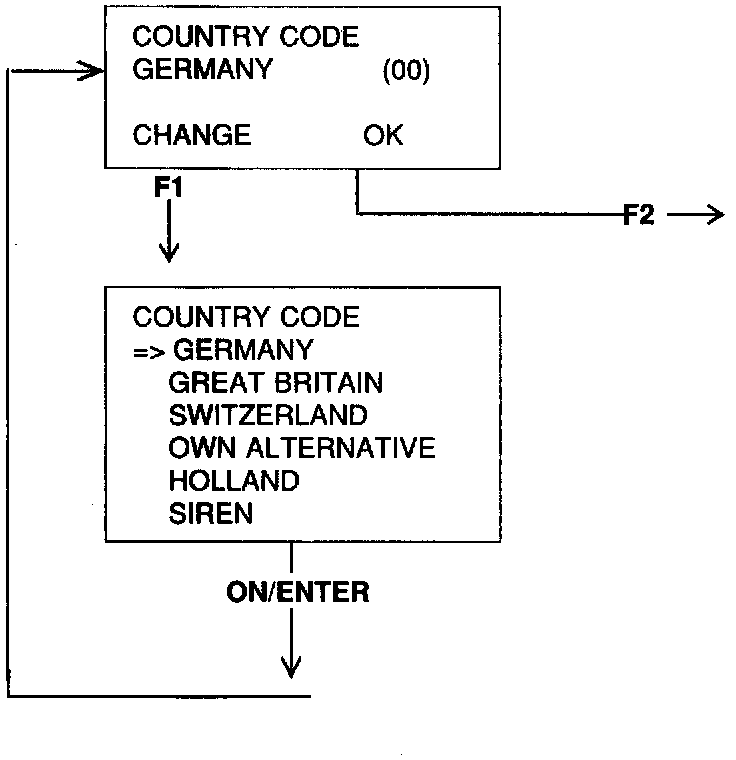

Country-specific
1 Connect an Intelligent Saab Tester (ISAT) scan tool.
Select "PROGRAMMING".
2 Select "COUNTRY CODE".
3 Select country.
The values that apply for each country are given in the table on the right. For "OWN ALTERNATIVE" or "SIREN", see the description below.

Country Sound Flashing
duration period
Germany 30 sec(* 5 min
Great Britain 30 sec(* no flashing
Switzerland 30 sec(** no flashing
Own alternative
Holland 30 sec(** 5 min
Siren

*) The sound is produced in pulses
**) The sound is produced continuously.

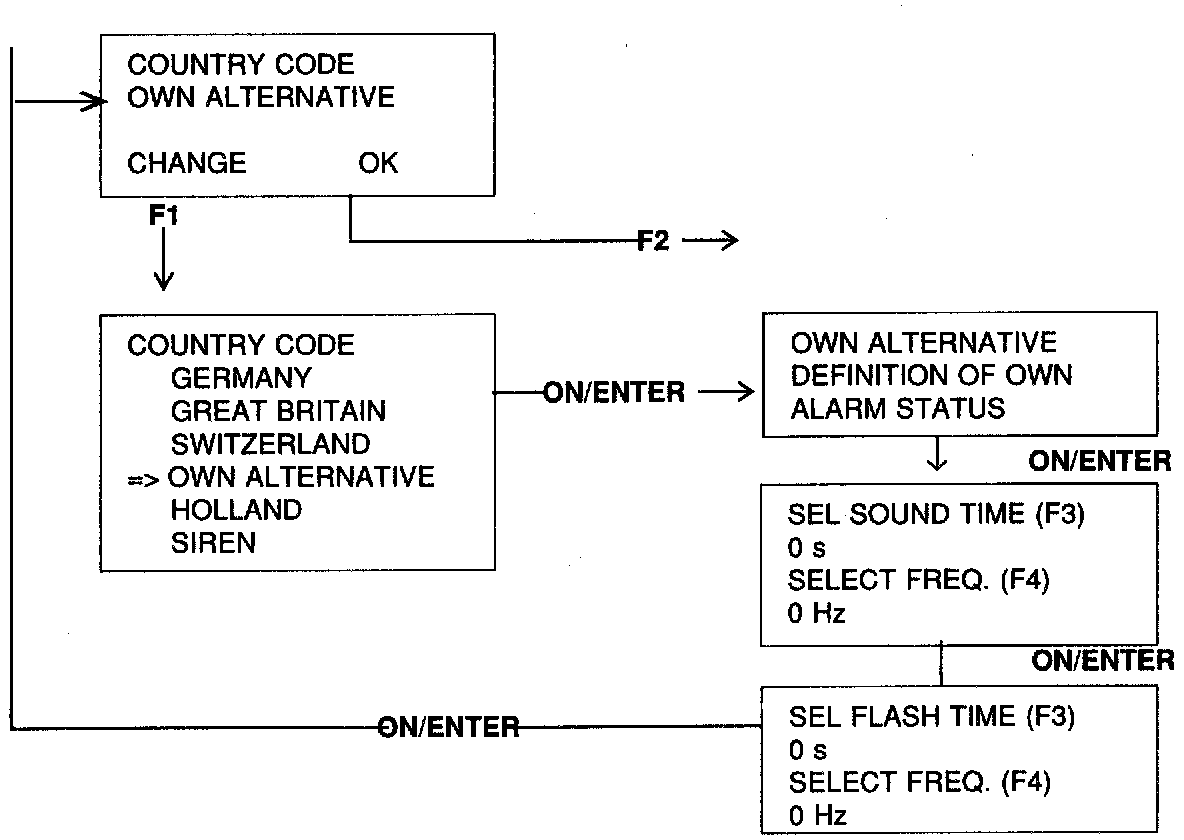

Own alternative
1 Select "COUNTRY CODE".
Select "OWN ALTERNATIVE".
2 Select the desired values for the alarm signal (sound and/or flash) according to the table below.
Sound duration: 0-30-60-90-120-180-240-300 sec
Sound frequency: 0-0.5-1-2 signals/sec
Flashing period: 0-60-120-180-240-300 sec
Flash frequency: 0-0.5-1-2-4 signals/sec

Siren
If a siren with battery back-up is fitted, this must be selected in the country code menu. The "SIREN" command, last in the programming menu, should also be selected "ON". Continue in "Programming for Siren".


Important: The alarm's horn must be disconnected when a siren with battery back-up is fitted.
