Power Locks

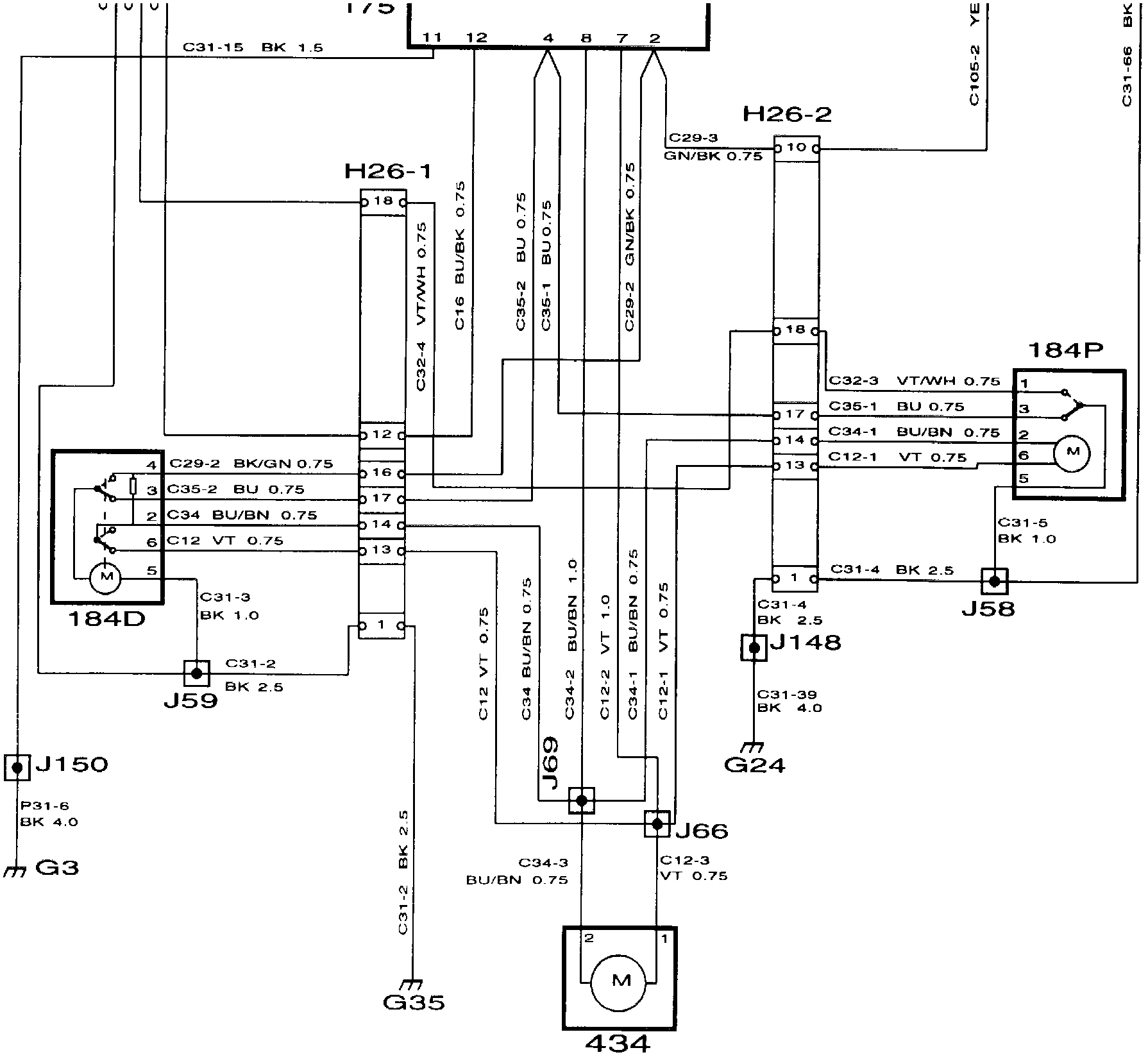

k� BCentral Locking System:

Without Cabriolet

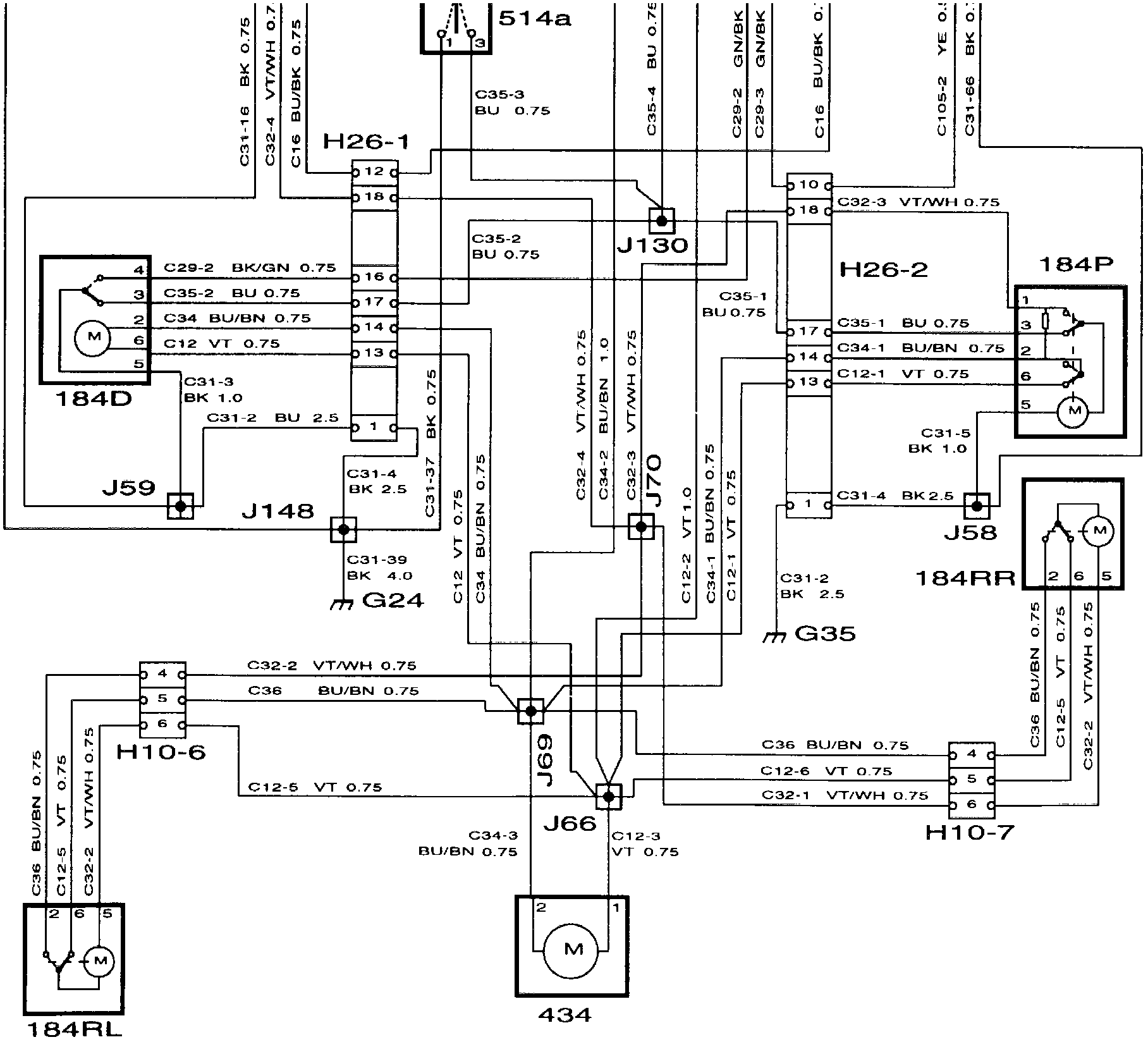

q� BCentral Locking System:

With Cabriolet
Wiring Diagrams

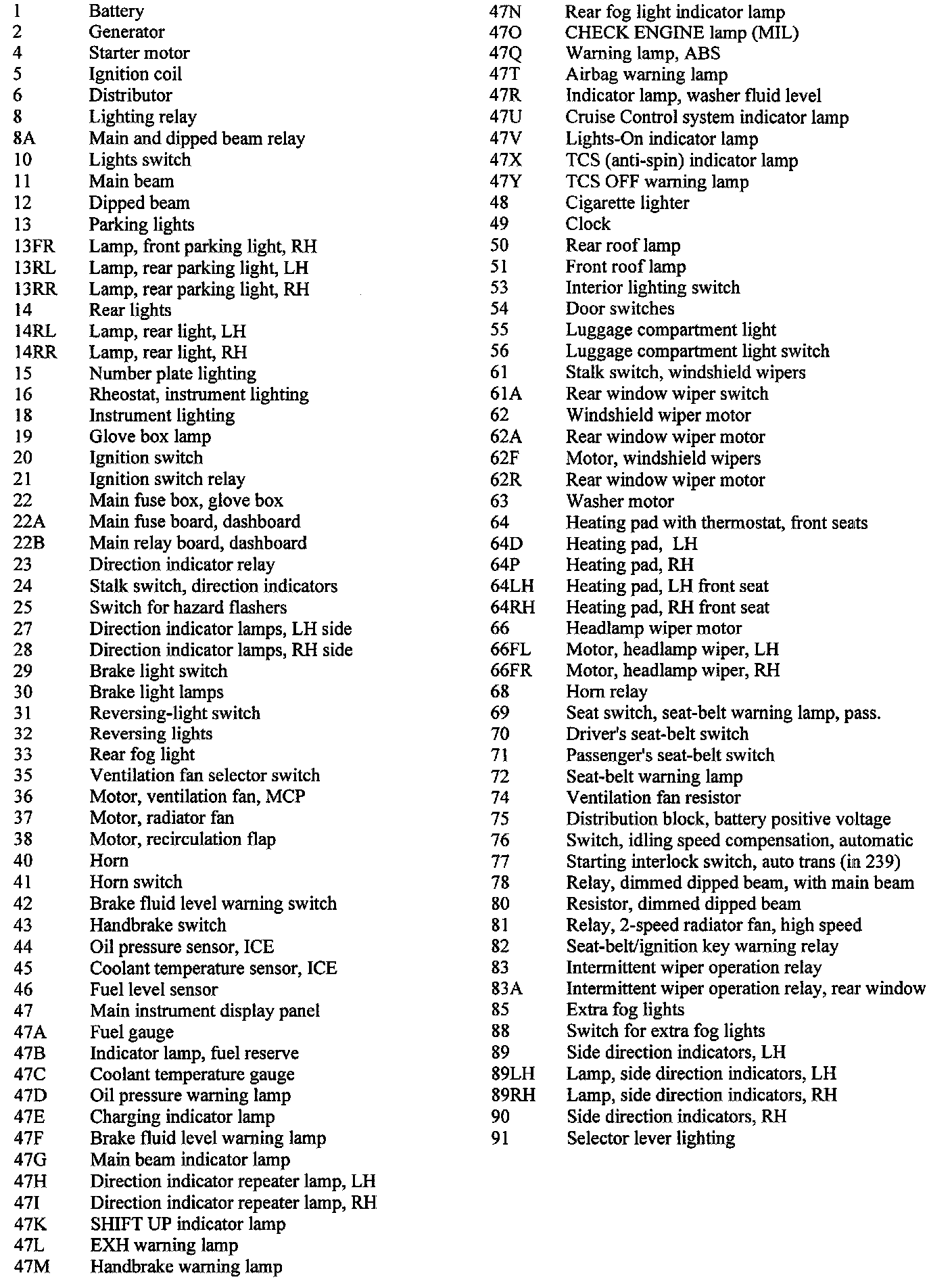

1 - 91:

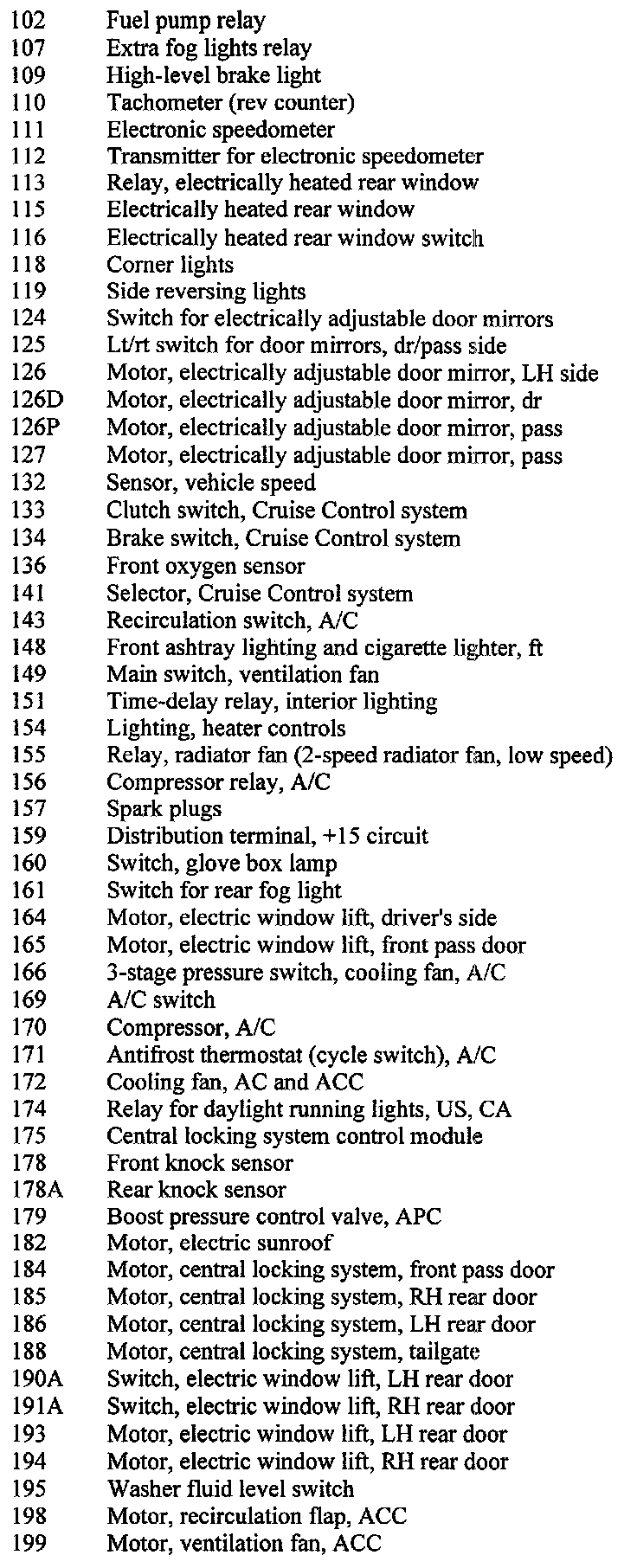

102 - 199:

202 - 299:

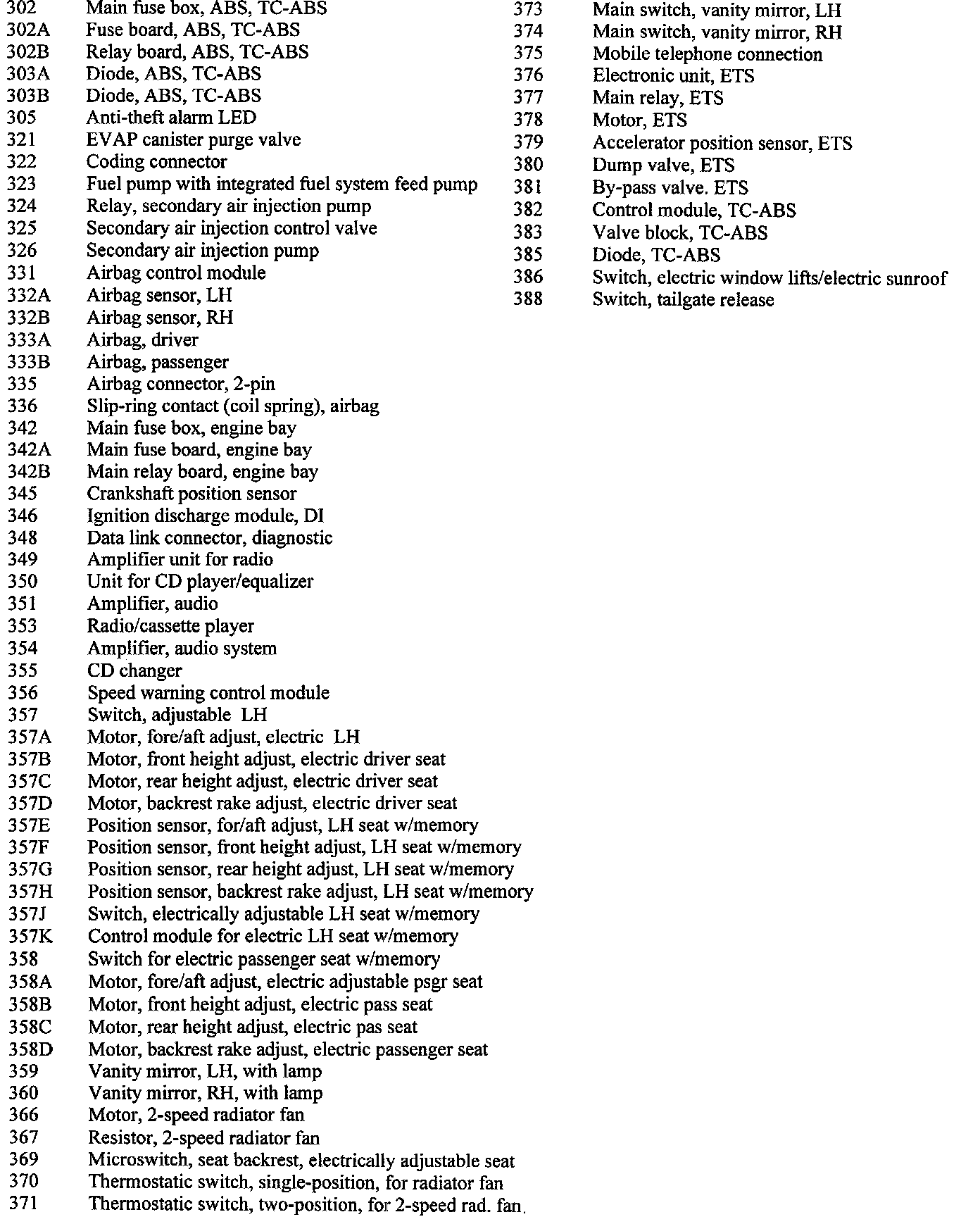

302 - 388:

405 - 460:

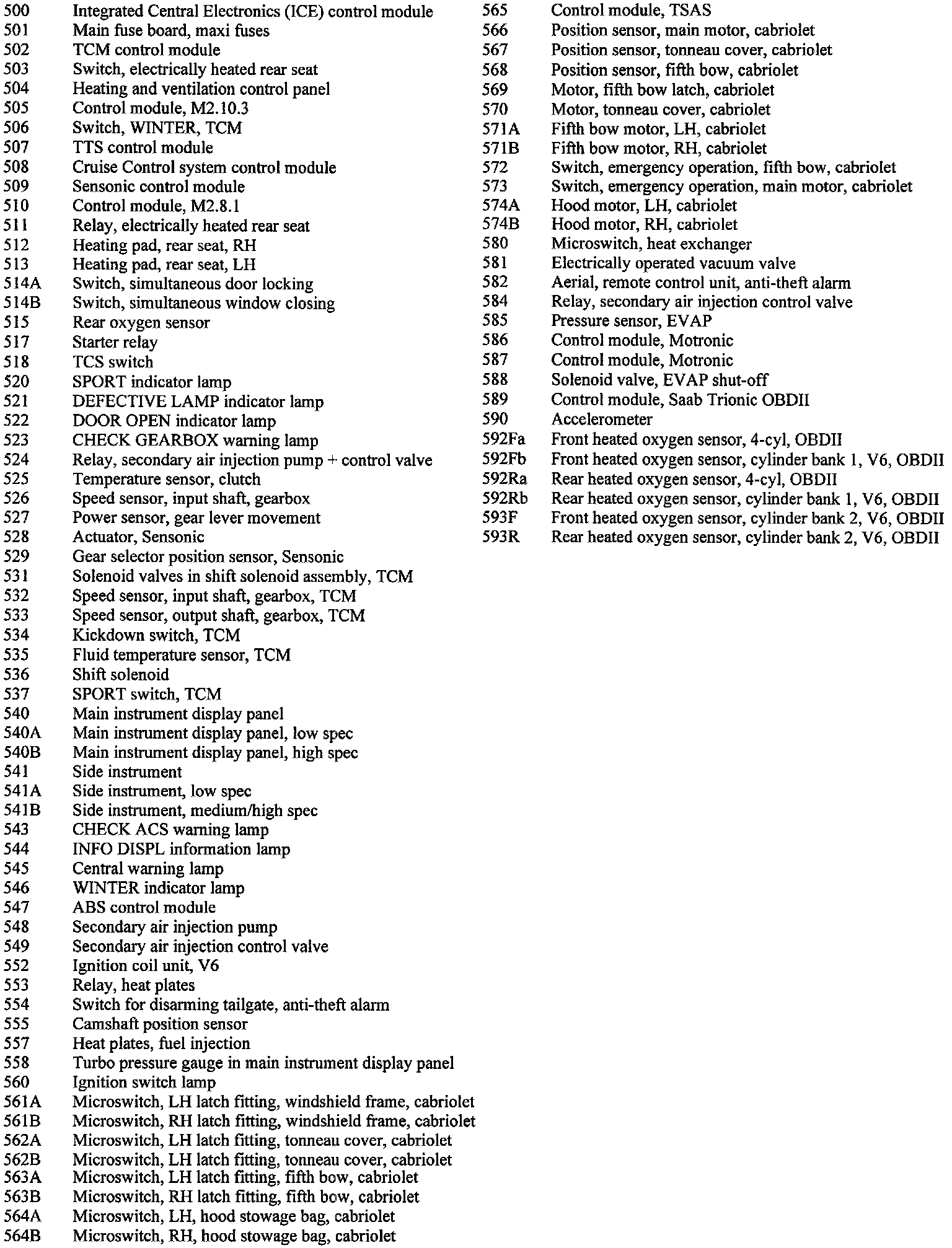

500 - 593:

Numerical Component Index

For more information please refer to "Diagrams : Diagram Information and Instructions". Diagram Information and Instructions
