Oil Pressure Warning Lamp/Indicator: Description and Operation

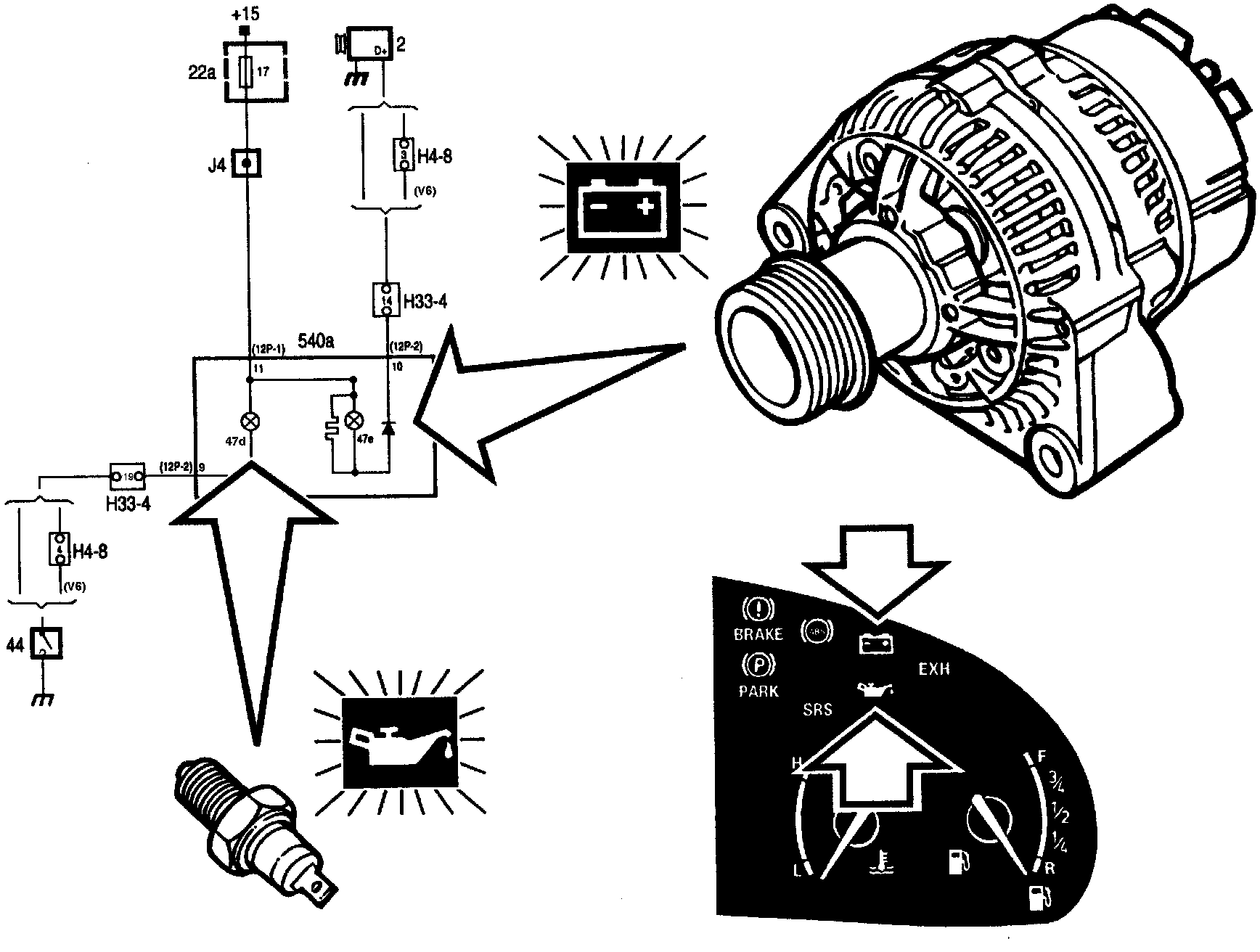

The oil pressure warning lamp is situated in the top right-hand corner of the instrument display. This lamp warns the driver when the engine oil pressure is too low.

The lamp is supplied with current in the main instrument display panel. Should the oil pressure drop below 0.3 - 0.5 bar, the oil pressure sensor contacts will close and connect the lamp to ground via pin 9 (12p-2).
