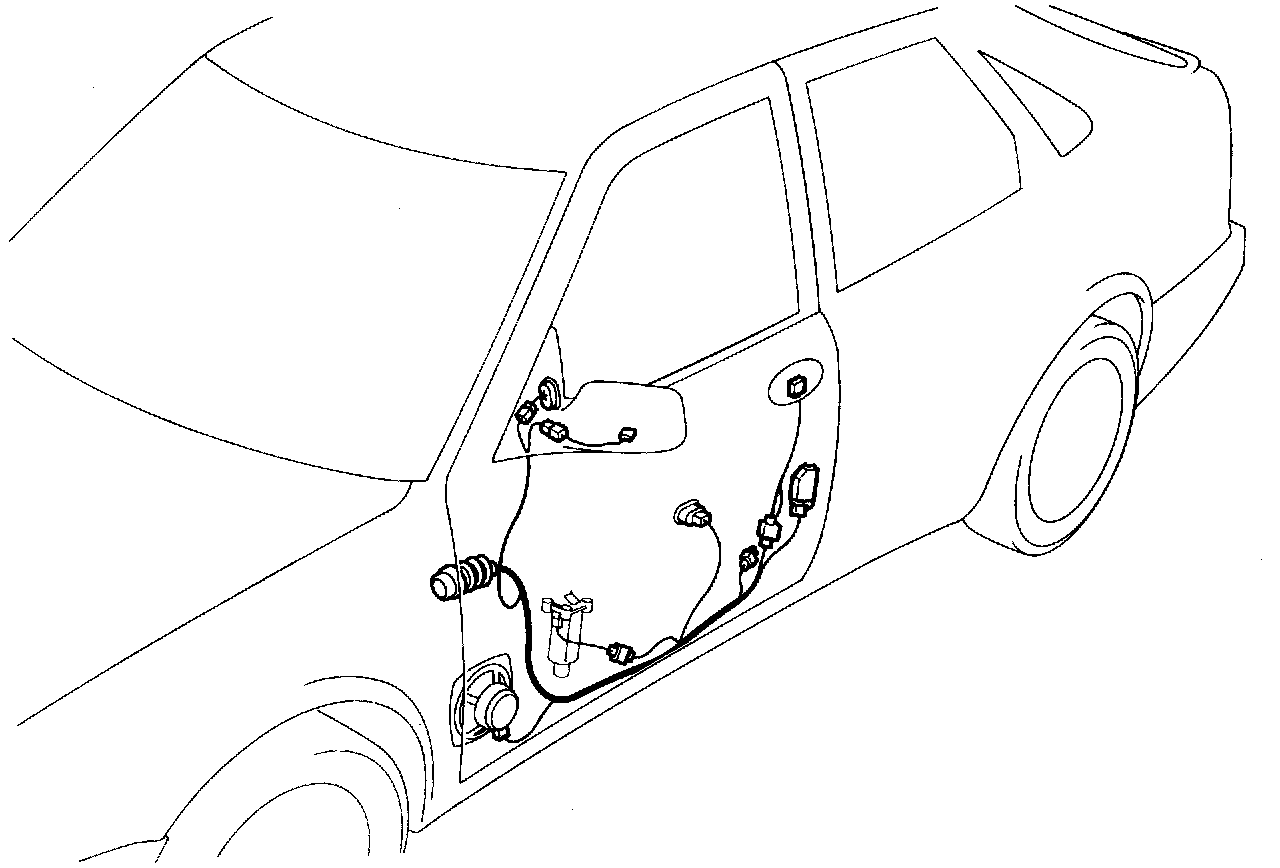

Replacement of Wiring In Front Door

1 Remove the door trim.
2 Unplug the 26-pole connector by the front-door hinge.
3 Squeeze the clips securing the 26-pin connector in the side of the front door.
Unplug all connectors in the front door.
4 Pull out the wiring through the hole in the side of the front door.
5 Install the new wiring. Check the marking, cable codes and color coding of the connectors carefully against the wiring diagrams.


NOTE: Fix the wiring properly so that no knocking, rattling or other unwanted noise occurs when the car is being driven.


Install the trim in reverse order.
